Simpson Top Flange Hanger

Mfr.: Simpson Strong-Tie
Item #: I091476
Mfr. #: HU24TF
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $33.45
i h h

Description

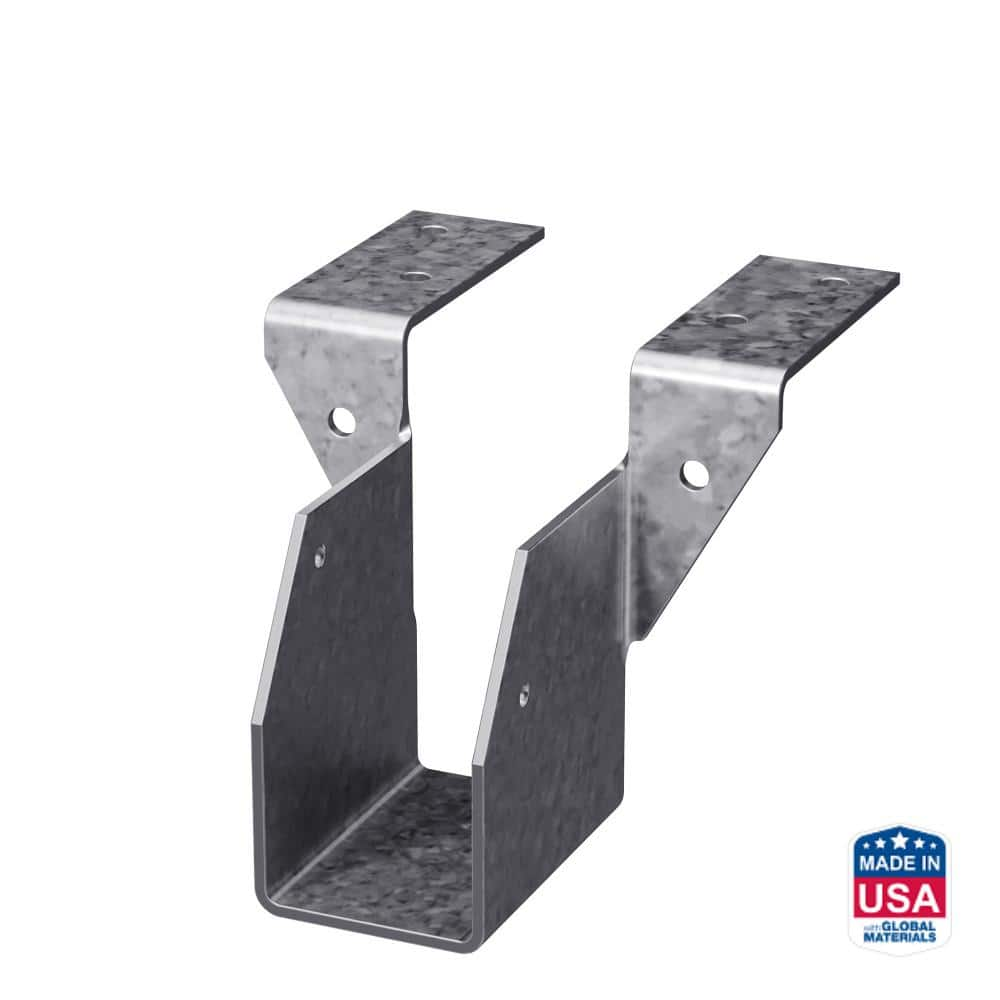

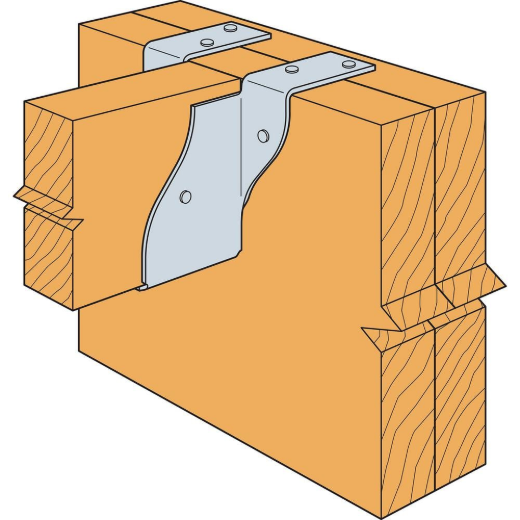

The Simpson Strong-Tie HU24TF is a heavy-duty, top-flange joist hanger designed for connecting 2x4 joists to headers. This hybrid connector incorporates the advantages of both face-mount and top-mount hangers, featuring face-nailing for a secure attachment. It is constructed from 12-gauge steel to provide robust support and structural integrity for various framing projects.
  • Hybrid face-mount and top-mount design
  • 12-gauge galvanized steel construction

Features

  • Can be skewed or sloped up to 45
  • Tested, load rated and code listed

Includes

  • (1) HU24TF Top-Flange Joist Hanger
Products specifications
Model HU24TF
Joist Size 2x4
Material Carbon Steel
Finish G90 Galvanized
Thickness 12 Gauge
Width 1-9/16 in
Height 3-7/16 in
*
*
*
