  • Simpson Top Flange Joist Hanger BA410 for 4x10

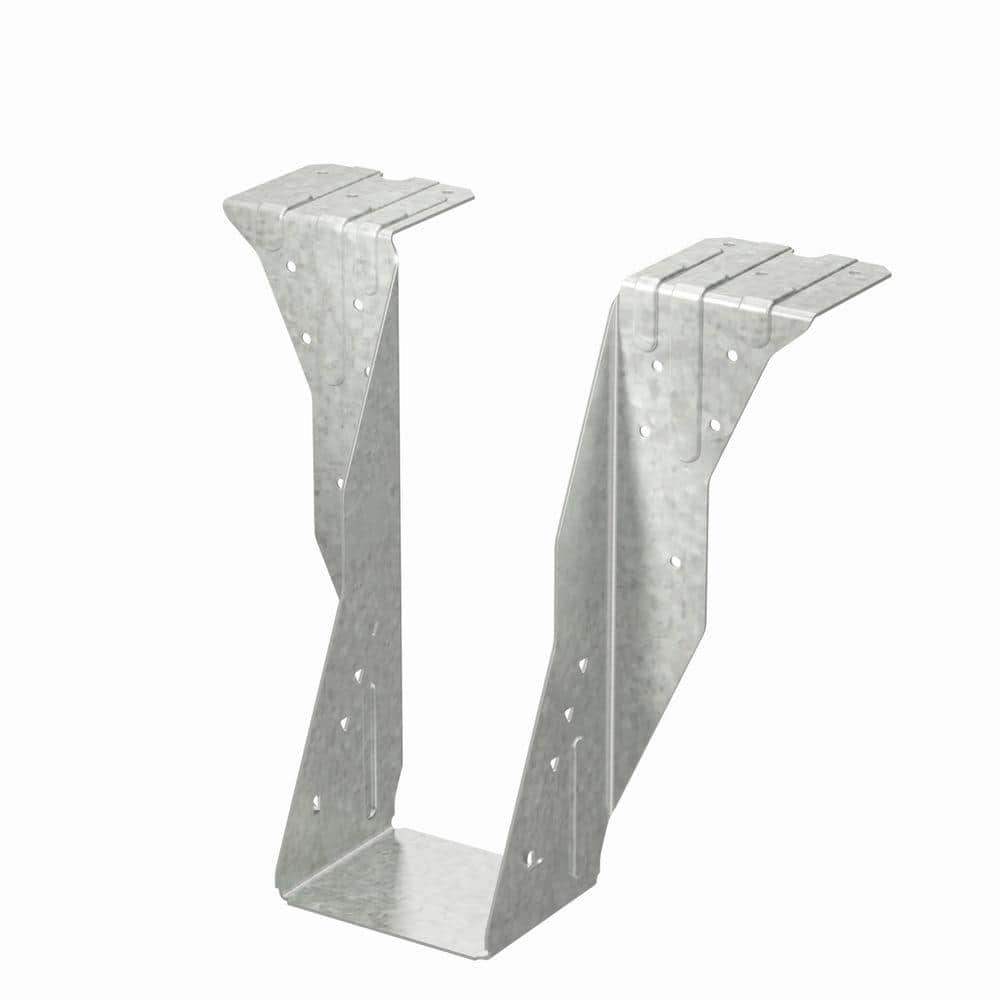

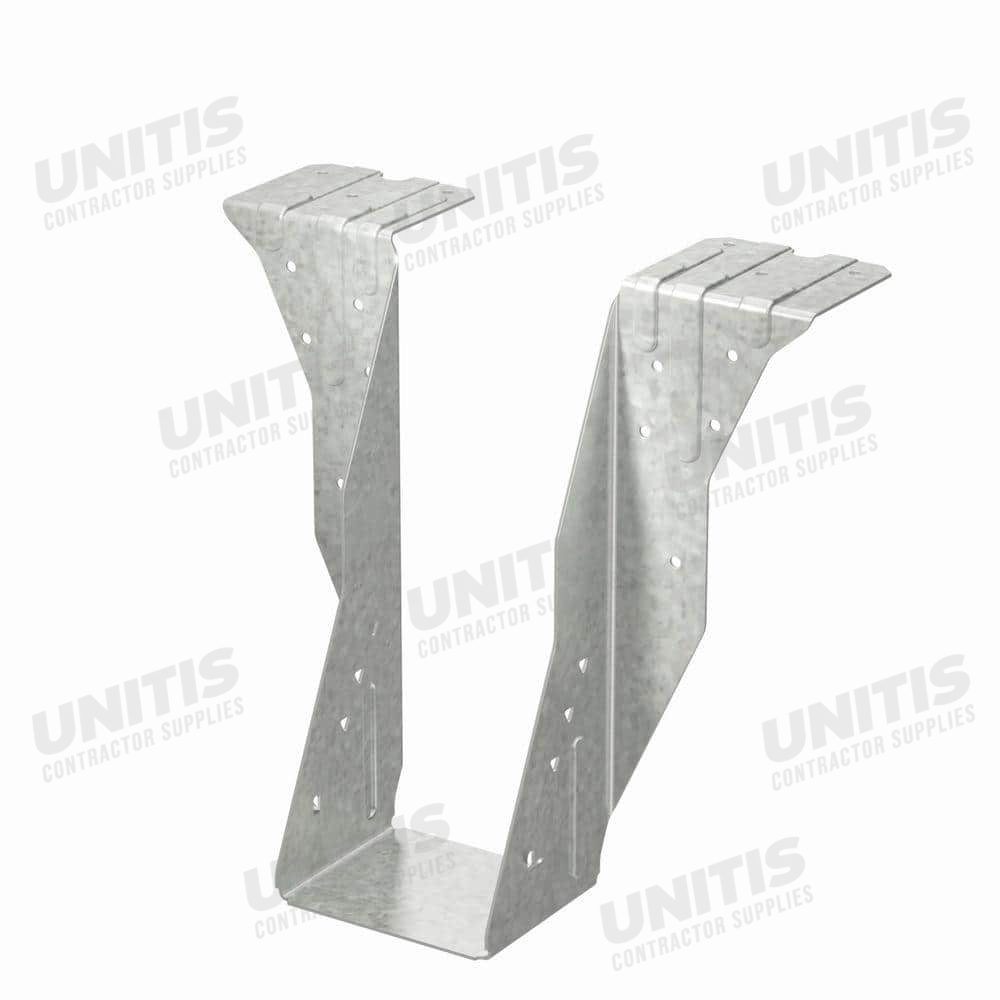

Simpson Top Flange Joist Hanger BA410 for 4x10

Mfr.: Simpson Strong-Tie
Item #: I091130
Mfr. #: BA410
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $27.45
i h h

Description

The Simpson Strong-Tie BA410 is a high-performance top-flange joist hanger specifically engineered for 4x10 solid sawn lumber and engineered wood applications. This one-piece connector provides a cost-effective alternative to welded hangers while delivering exceptional load-bearing capacity for beam-to-beam and girder connections. Its versatile design features positive-angle nailing (PAN) to accommodate various load requirements, ensuring structural stability in floor and roof framing. Constructed from durable G90 galvanized steel, it offers superior resistance to corrosion for long-lasting reliability.
  • Cost-effective one-piece design
  • Positive-angle nailing (PAN)
  • G90 galvanized finish

Features

  • Full-height joist flanges capture the top chord to prevent rotation and eliminate web stiffeners.
  • Wide-seat design helps distribute loads evenly, reducing stress on the connected members.
  • Compatible with both solid sawn lumber and engineered wood products like LVL and PSL.
  • Engineered for medium to heavy-duty load conditions with versatile min/max nailing options.

Includes

  • (1) BA410 Top-Flange Joist Hanger
Products specifications
Model No BA410
Material 14-Gauge Carbon Steel
Finish G90 Galvanized
Nominal Joist Size 4x10
Hanger Width 3-9/16 inch
Hanger Height 11 inch
Header Fasteners (16) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (Min) (2) 0.148 inch x 1-1/2 inch Nails
Joist Fasteners (Max) (8) 0.148 inch x 1-1/2 inch Nails
*
*
*
