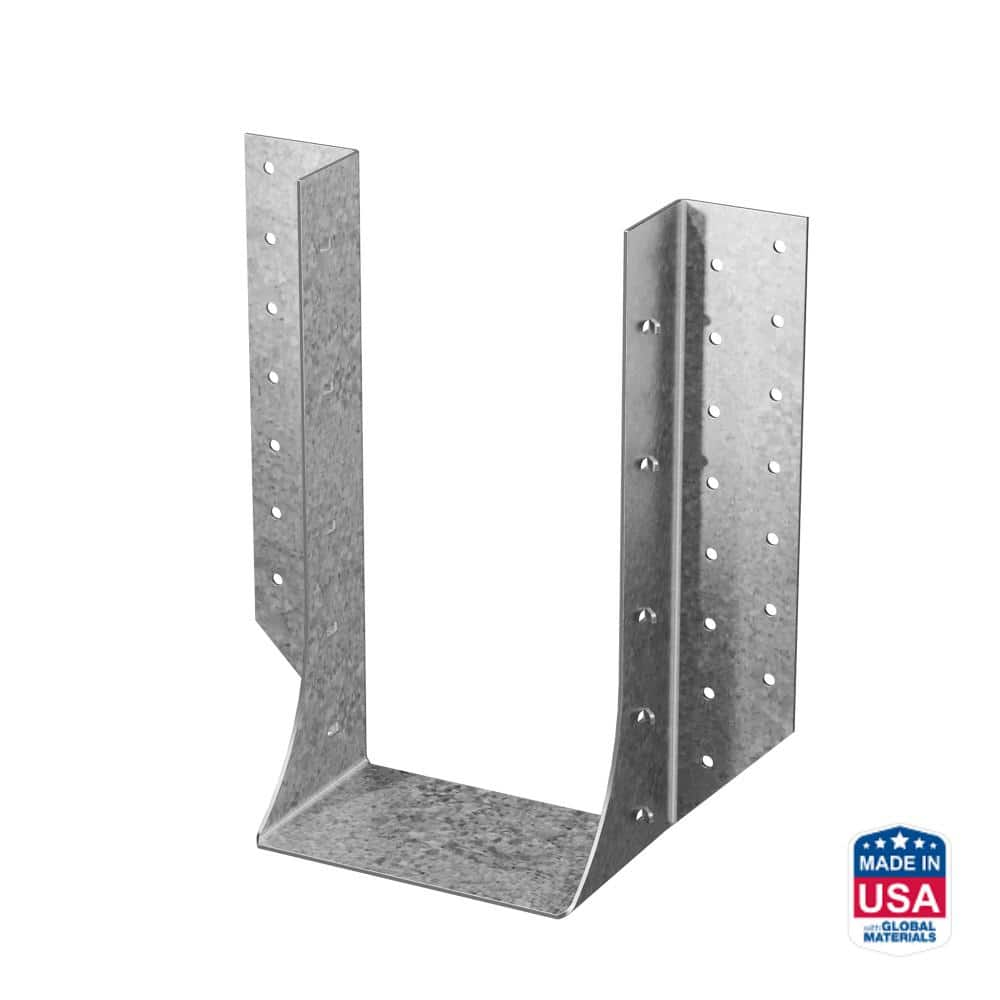

Simpson Triple 2X10 Face Mount Hanger HHUS210-3

Mfr.: Simpson Strong-Tie
Item #: I091333
Mfr. #: HHUS210-3
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $60.49
i h h

Description

The Simpson Strong-Tie HHUS210-3 is a heavy-capacity face-mount joist hanger designed for triple 2x10 wood members. It utilizes a patented double-shear nailing design that distributes the load through two points on each joist nail, providing significantly higher strength than standard hangers. This value-engineered connector is ideal for heavy-duty framing applications where high-load carrying capacity and structural reliability are required.
  • Double-Shear Nailing Technology
  • G90 Galvanized Coating

Features

  • Heavy 14-gauge steel construction for maximum structural integrity.
  • Reduces the number of fasteners needed by transferring loads through two points on each nail.
  • Compatible with 16d common nails for simplified on-site installation.
  • Designed to meet rigorous building codes for safety and performance.

Includes

  • (1) HHUS210-3 Face Mount Hanger
Products specifications
Model Number HHUS210-3
Joist Size Triple 2x10
Material 14-Gauge Carbon Steel
Finish G90 Galvanized
Hanger Width 4-11/16 inch
Hanger Height 8-7/8 inch
Fastener Type 16d Common Nails
Face Fasteners (18) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (10) 0.162 inch x 3-1/2 inch Nails
*
*
*
