Simpson Universal Retro Foundation Plate W/Sds

Mfr.: Simpson Strong-Tie
Item #: I094095
Mfr. #: URFP-SDS3
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $42.80
i h h

Description

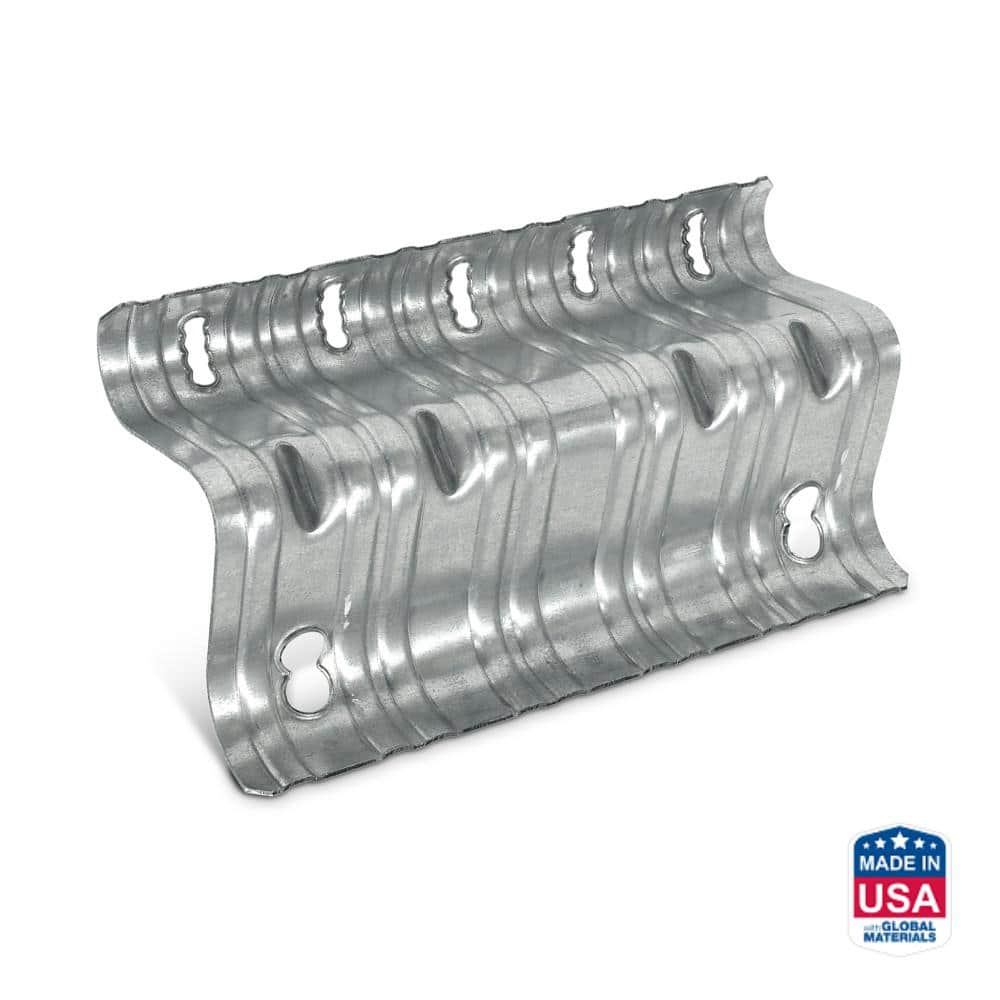

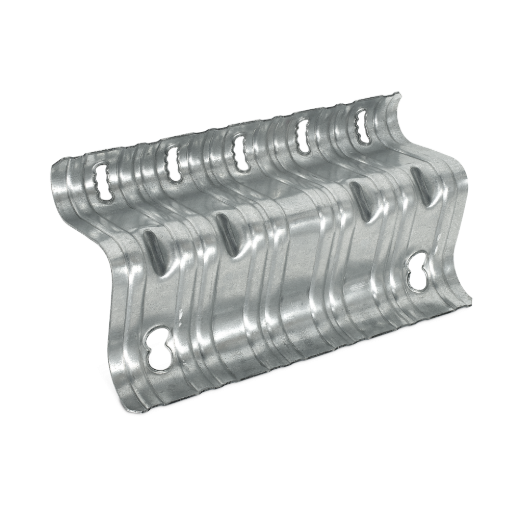

The Simpson Strong-Tie Universal Retro Foundation Plate (URFP-SDS3) offers a robust solution for securing mudsills to various foundation types, especially where vertical clearance is minimal. This plate is engineered with longitudinal embossments and stiffening darts to enhance structural integrity and provides a flexible installation method. It is designed as a one-for-one replacement for 1/2 inch or 5/8 inch mudsill anchors and ensures reliable connection to both SDS screws and concrete anchorage. The scalloped slotted holes offer installation flexibility, allowing for mudsills that are offset or inset from the foundation edge.

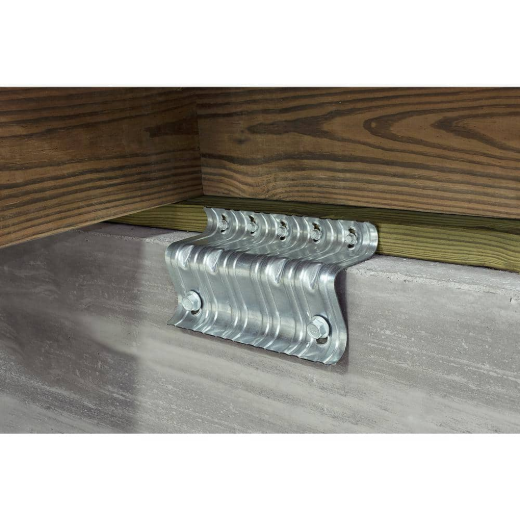

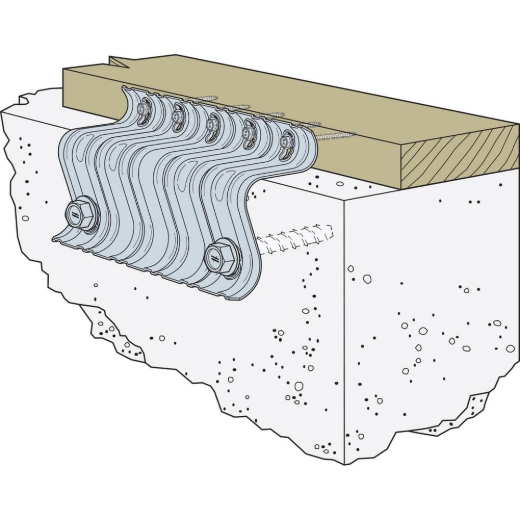

  • Retrofit method to secure mudsill to foundation
  • Ideal for minimal vertical clearance
  • One-for-one replacement for 1/2 inch or 5/8 inch mudsill anchors

Features

  • Constructed from 14-gauge galvanized steel with a white finish.
  • Features longitudinal embossments, stiffening darts, and scalloped slotted holes for enhanced strength and installation flexibility.

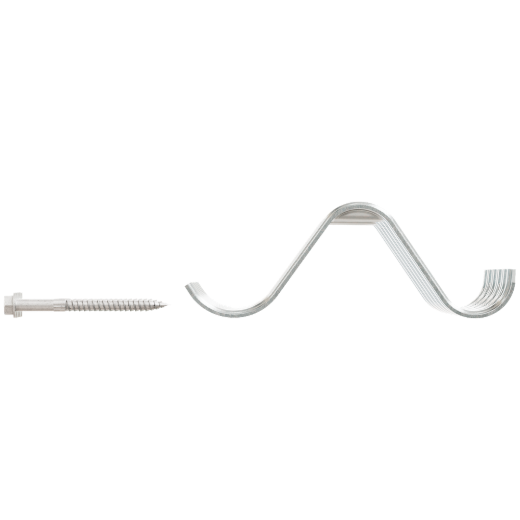

  • Compatible with 1/4 inch x 3 inch Strong-Drive SDS Heavy-Duty Connector screws.

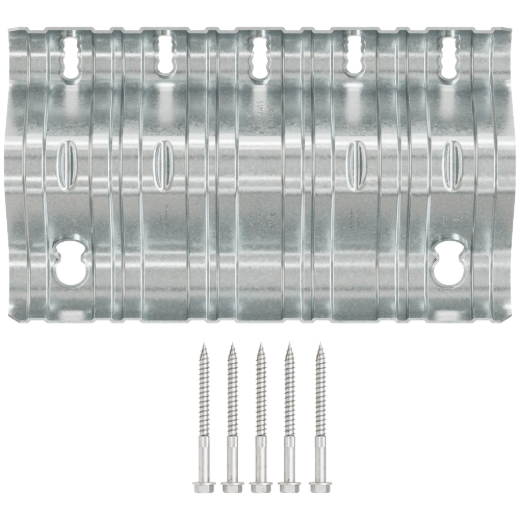

Includes

  • The product itself (URFP-SDS3)
  • 3 ct. 1/4 inch x 3 inch Strong-Drive SDS Heavy-Duty Connector screws (in some product variations).
Products specifications
Material Galvanized Steel
Gauge 14 or 18 ga.
Finish White/Galvanized
Width 10-5/8 inch

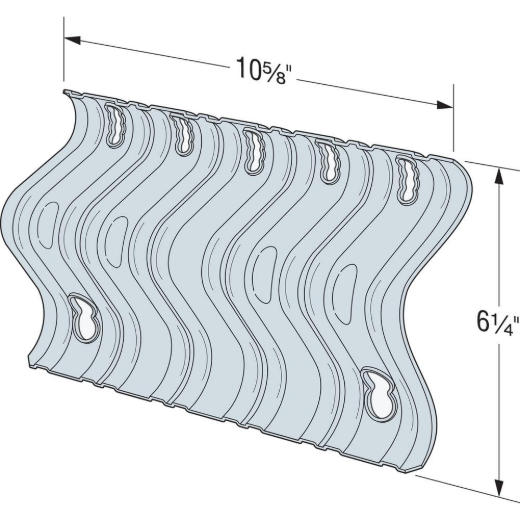

Dimensions 10-5/8 inch x 6-1/4 inch
Anchor Replacement 1/2 inch or 5/8 inch
Screw Size 1/4 inch x 3 inch SDS
*
*
*
