  • Simpson Zinc Nailon Anchor 1/4 inch x 1-1/4 inch, Zamac 3 Body, Mushroom Head, 100 Count

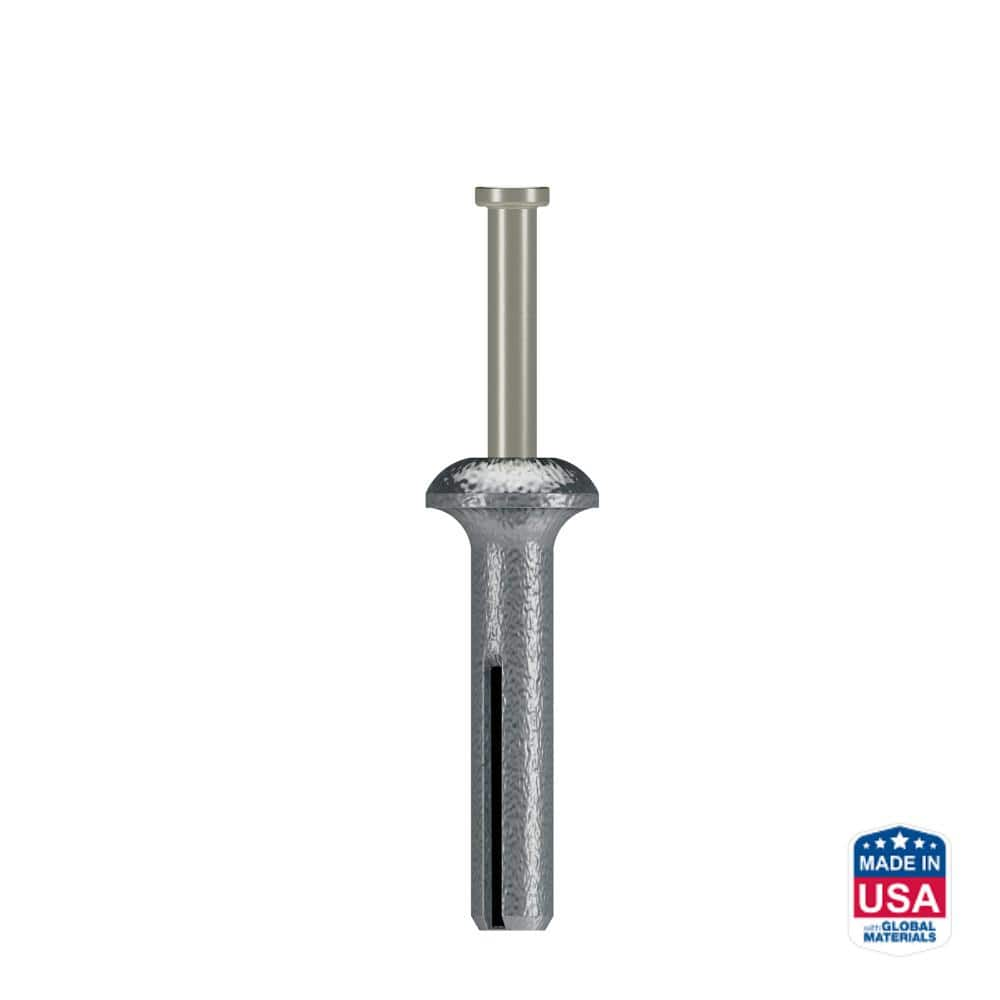

Simpson Zinc Nailon Anchor 1/4 inch x 1-1/4 inch, Zamac 3 Body, Mushroom Head, 100 Count

Mfr.: Simpson Strong-Tie
Item #: I094196
Mfr. #: ZN25114
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $26.27
i h h

Description

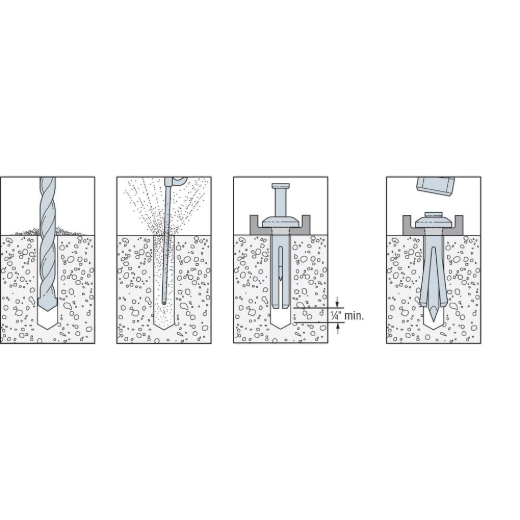

The Simpson Strong-Tie ZN25114 is a low-cost, mushroom head pin-drive anchor designed for applications under static loads. It is easily installed by tapping the head with a hammer, which drives the pin and expands the anchor body for a secure hold in various base materials such as concrete, CMU, and brick. The tamper-resistant design makes it a reliable choice for light-duty applications where security is important. This anchor is not recommended for overhead or eccentric tension loads.
  • Low-cost, mushroom head design
  • Tamper-resistant pin and head configuration

Features

  • Body made of die-cast Zamac 3 alloy
  • Available with carbon steel or Type 304 stainless steel pins
  • Suitable for use in concrete, CMU, and brick
  • Easy installation with a hammer

Includes

  • 100 Zinc Nailon Anchors
Products specifications
diameter 1/4 inch
length 1-1/4 inch
body material Die-cast Zamac 3 alloy
pin material Carbon steel or stainless steel
head type Mushroom head
application Static loads
base materials Concrete, CMU, brick
*
*
*
