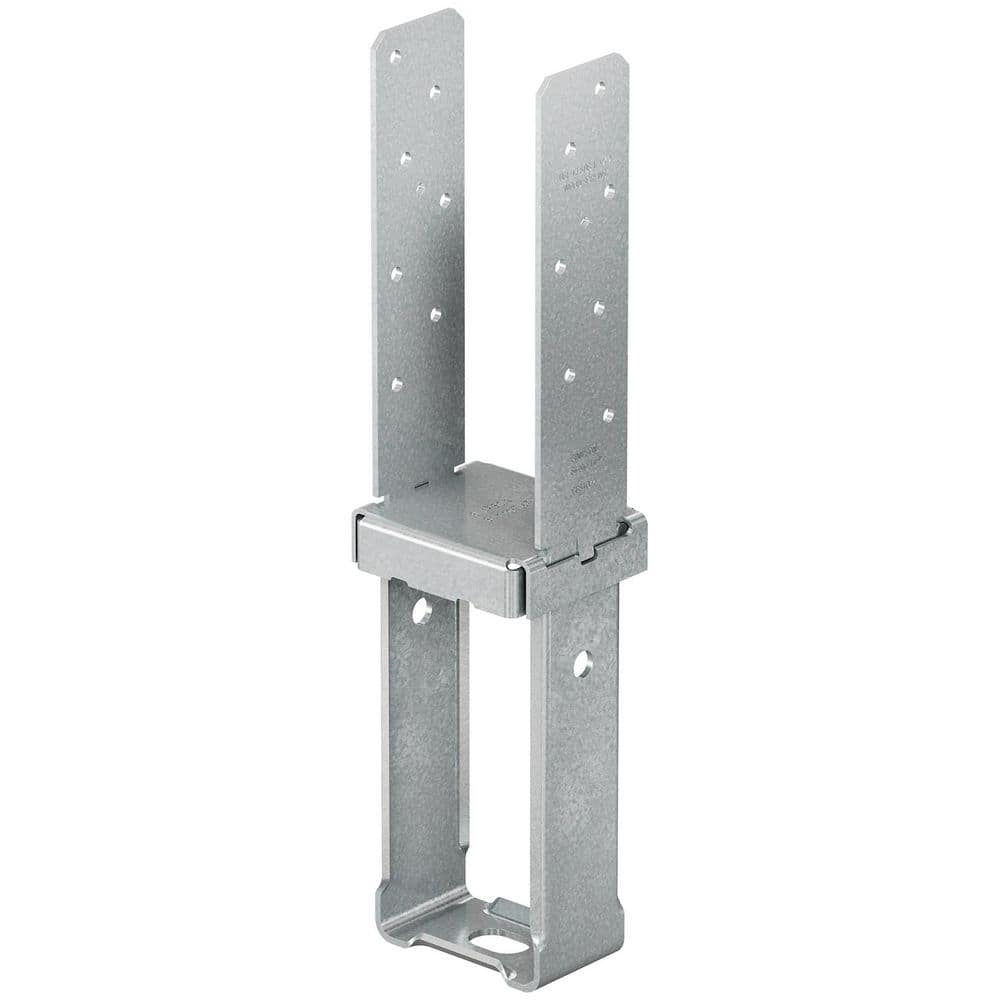

Simpson Zmax 4X4 Standoff Column Base With Sds Screws

Mfr.: Simpson Strong-Tie
Item #: I090982
Mfr. #: CBSTQ44Z-SDS2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $59.74
i h h

Description

The Simpson Strong-Tie CBSTQ44Z-SDS2 is a cast-in-place, quick-install column base engineered to provide high-strength stability for 4x4 wood posts in residential and light commercial construction. Designed as an upgraded replacement for the CBSQ series, this model features higher download capacities and S-shaped bearing tabs for enhanced performance. The integrated 1-inch standoff reduces moisture-related rot, while the ZMAX finish offers superior corrosion resistance for outdoor and weather-exposed applications.
  • ZMAX Galvanized Coating
  • 1-Inch Standoff Design

Features

  • Equipped with S-shaped bearing tabs to provide increased load capacity and stability.
  • Meets building code requirements for standoff to prevent post-end decay from moisture.
  • Engineered to replace most CBSQ models as a straightforward structural upgrade.

Includes

  • (14) 1/4 inch x 2 inch Strong-Drive SDS Heavy-Duty Connector Screws
Products specifications
Finish ZMAX
Material Carbon Steel
Nominal Post Size 4x4
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
Height 8-3/8 inch
Depth 7-1/8 inch
Width W1 3-9/16 inch
Width W2 3-1/2 inch
Fasteners Included (14) 1/4 inch x 2 inch SDS Screws
*
*
*
