Simpson Zmax Standoff Column Base For 4X6

Mfr.: Simpson Strong-Tie
Item #: I090985
Mfr. #: CBSTQ46Z-SDS2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $63.83
i h h

Description

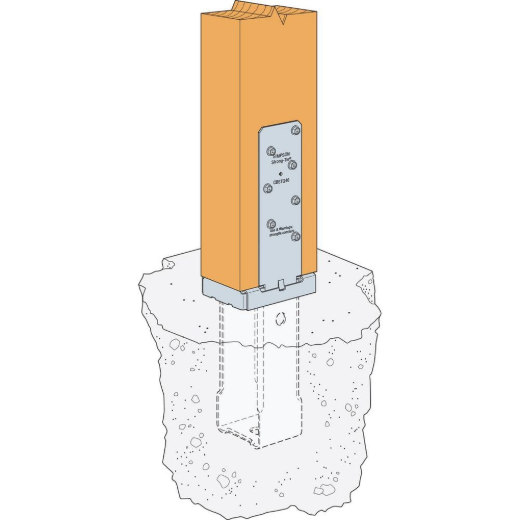

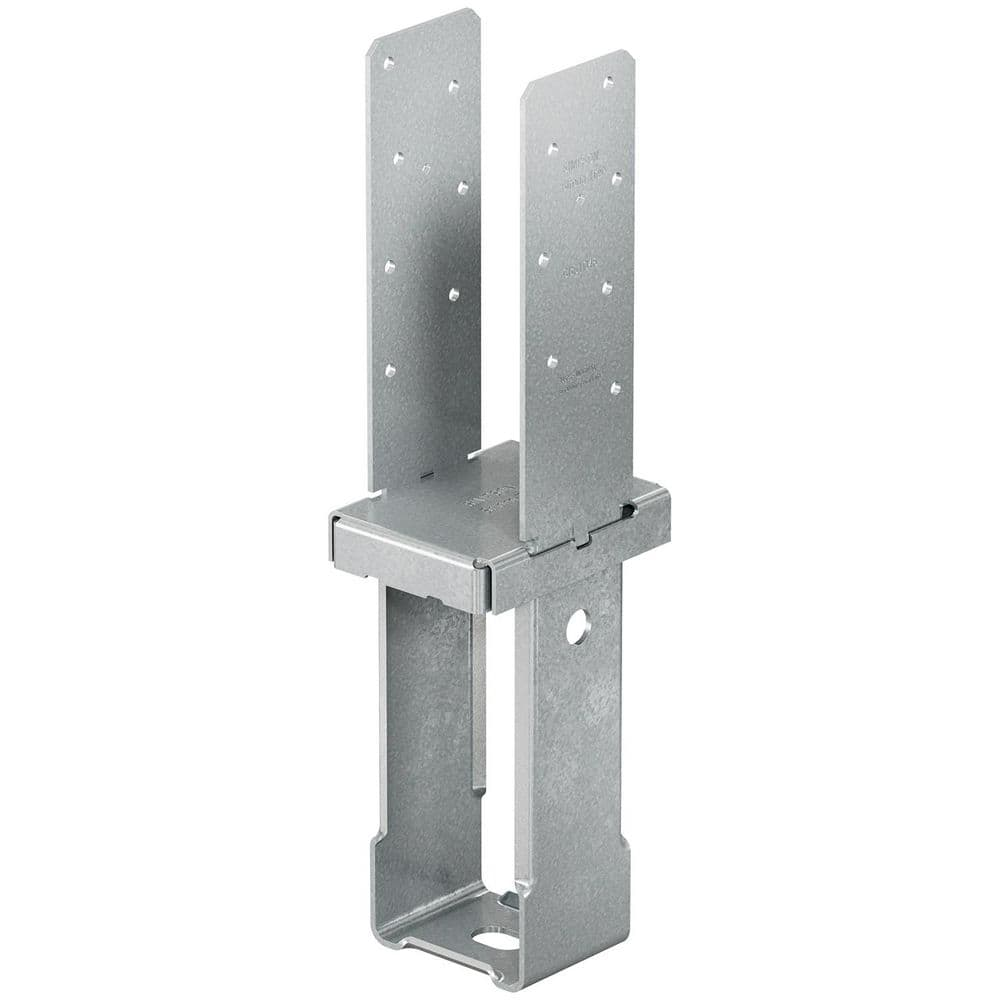

The Simpson Strong-Tie CBSTQ cast-in-place column base is engineered to deliver enhanced strength and stability for wood posts in residential and light commercial construction. It features a code-required 1 in. standoff to protect the post from moisture and reduce the risk of post-end rot. With higher download capacities than previous models, this base offers a dependable solution for projects requiring a secure connection between wood columns and concrete foundations.
  • ZMAX coating for enhanced corrosion resistance
  • Code-compliant 1 in. standoff design

Features

  • S-shaped bearing tabs provide increased strength for higher download loads.

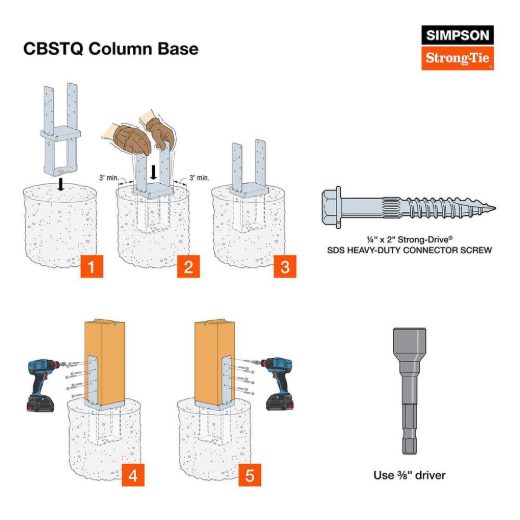

  • Includes Strong-Drive SDS Heavy-Duty Connector screws for a complete installation.
  • Designed as an easy-to-install replacement for standard CBSQ models.

Includes

  • (1) CBSTQ46Z Column Base
  • (14) 1/4 inch x 2 inch Strong-Drive SDS Heavy-Duty Connector Screws
Products specifications
Model Number CBSTQ46Z-SDS2
Nominal Post Size 4x6
Material Carbon Steel
Finish ZMAX Galvanized
Base Thickness 12 Gauge
Strap Thickness 10 Gauge
Standoff Height 1 inch
Overall Height 8-11/16 inch
Fasteners (14) 1/4 inch x 2 inch SDS (Included)
*
*
*
