Simpson Zmax Standoff Column Base For 4x6

Mfr.: Simpson Strong-Tie
Item #: I090984
Mfr. #: CBSTQ46Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $55.66
i h h

Description

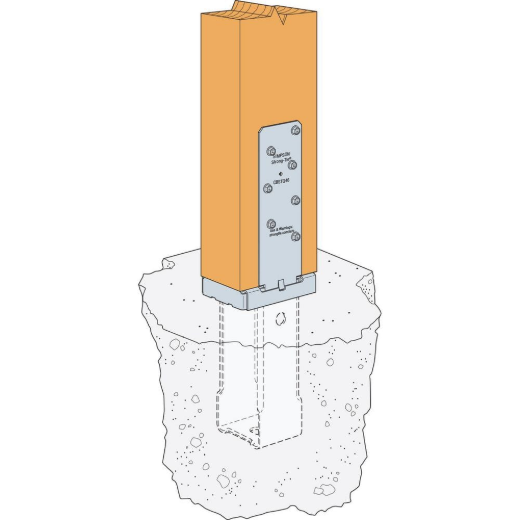

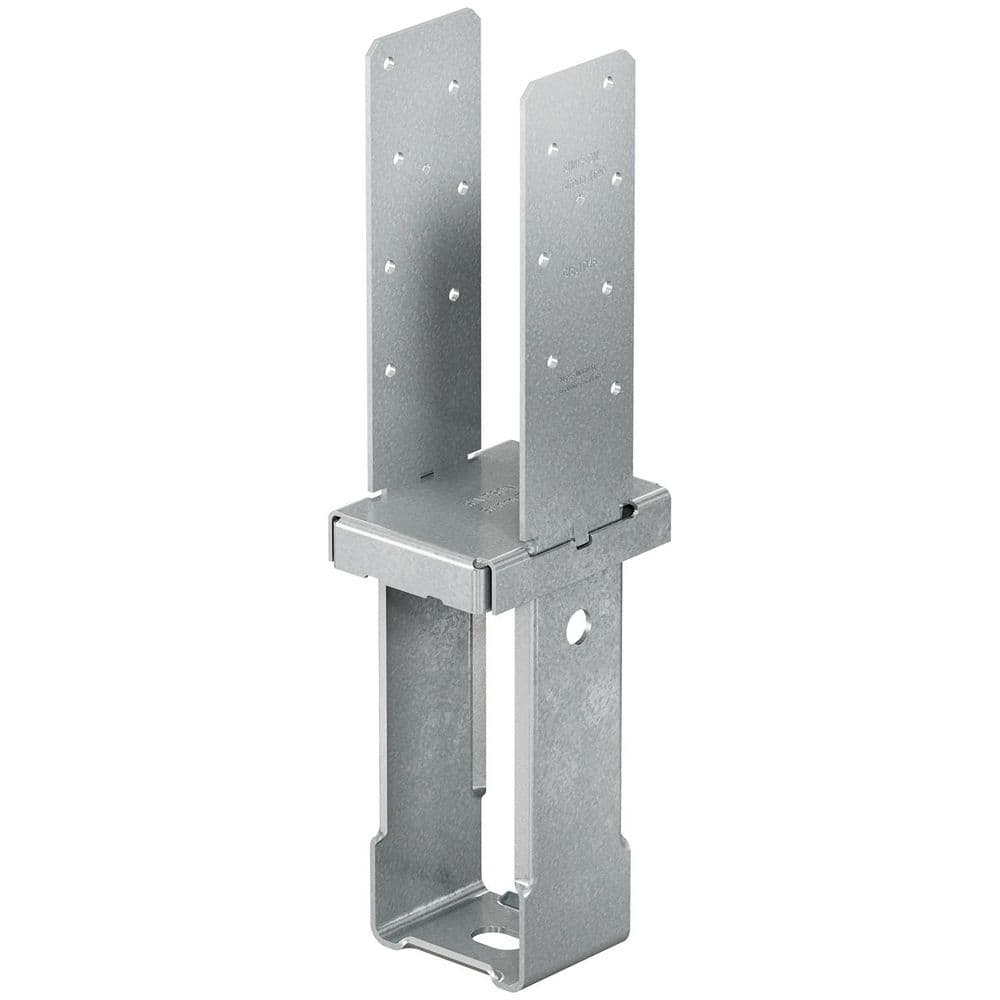

The Simpson Strong-Tie CBSTQ46Z is a cast-in-place column base engineered to deliver enhanced strength and stability for 4x6 wood posts in residential and light commercial construction. It features a code-required 1-inch standoff that elevates the post above concrete to protect against moisture and prevent wood rot. This high-capacity connector is an ideal solution for securing decks, porches, and other top-supported structures to concrete foundations.
  • ZMAX Galvanized Coating
  • 1-inch Standoff Height

Features

  • S-shaped bearing tabs provide increased strength and allow for higher download capacities.
  • Engineered for use with Strong-Drive SDS Heavy-Duty Connector screws to provide greater wood net section than bolts.

Includes

  • (1) CBSTQ46Z Quick-Install Column Base
Products specifications
Post Size 4x6
Finish ZMAX
Material Carbon Steel
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
Height 8-11/16 inch
Width (W1) 3-9/16 inch
Width (W2) 5-5/16 inch
Depth 7-13/16 inch
*
*
*
