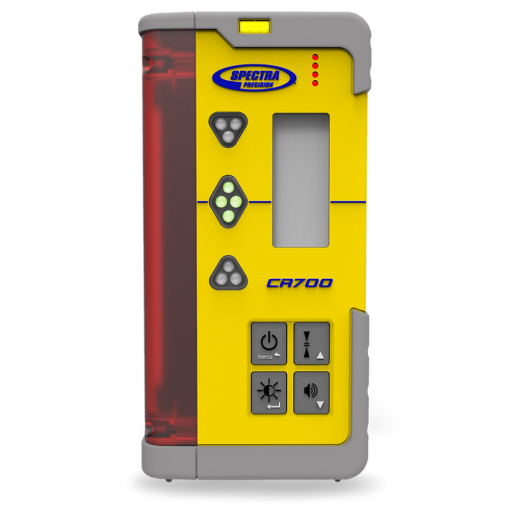

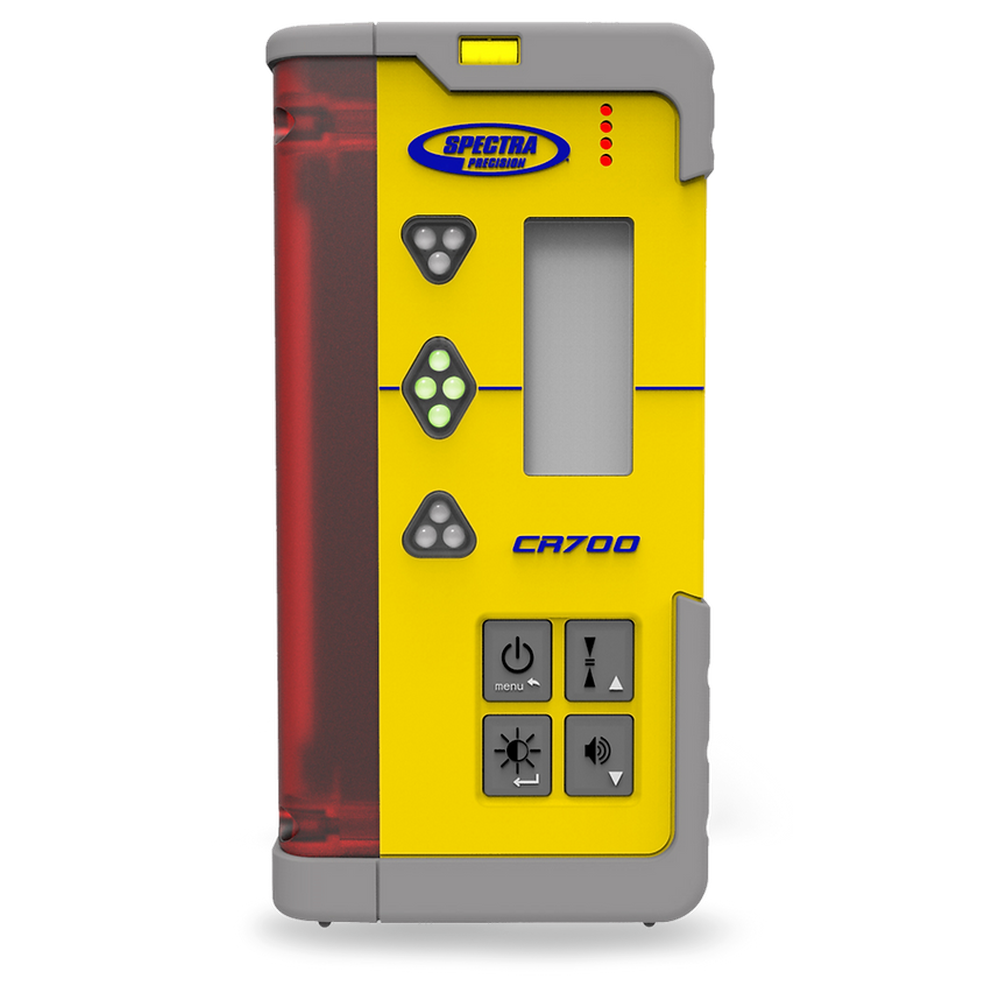

Spectra Precision CR700 Combo Laser Receiver

Mfr.: Spectra Precision
Item #: I090604
Mfr. #: CR700
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $824.82
i h h

Description

The CR700 Combination Laser Receiver is a versatile machine-mounted display receiver designed for small grading and excavating equipment. It functions equally well as a traditional laser receiver when mounted to a grade rod or staff, offering flexibility across the job site. Built to be virtually indestructible, it features an IP67 rating and a 3-meter drop guarantee to ensure reliable performance in the toughest conditions.

Features

  • Bright LED Arrow Displays in red, green, and blue for high visibility in all lighting conditions
  • Patented Light Bar Technology provides the most accurate, consistent, and reliable reception performance
  • Radio-compatible with GL400N/GL600N and HV302 series lasers for functions like Grade Match and Fingerprinting
  • Digital Read-Out provides the exact numerical distance from on-grade to eliminate guesswork
  • Remote Display capability allows the unit to be paired with an HL760 for use by operators or supervisors
  • Highly durable design with IP67 waterproof rating and a 3-year warranty
Products specifications
Working Radius 1 m - 460 m (3 ft - 1500 ft)
Laser Detection Height 270 mm (5 inch)
Numeric Readout Height 102.0 mm (4 inch)
Internal Radio Full 2-way communication, operation and security
Radio Working Radius Up to 200 m (660 ft), depending on orientation an
Accuracy (Dead-band) Ultra Fine: 0.5 mm, Super Fine: 1.0 mm, Fine: 2.0
Reception Angle 200 deg minimum
Strobe Anti-strobe sensor
Detectable Spectrum 610 nm ... 780 nm
Beeper Volumes Loud (110 dBA), Medium (95 dBA), Low (65 dBA)
LED Indicators Green On-grade, Red Hi, Blue Low
Power Supply 3 x 1.5 Volt AA batteries
Battery Life 60+ hours; 16 continuous backlight
Weight Without Clamp 471 g (16.6 oz.)
Dimensions 98 x 200 x 37 mm (3.9 inch x 7.8 inch x 1.5 inch)
Operating Temperature -20 degC to +60 degC (-4 degF to +140 degF)
Storage Temperature -40 degC to +70 degC (-40 degF to +158 degF)
Automatic Shut-Off 30 minutes
Regulatory CE EMC / RoHS Compliant
Warranty 3-Year Warranty
*
*
*
