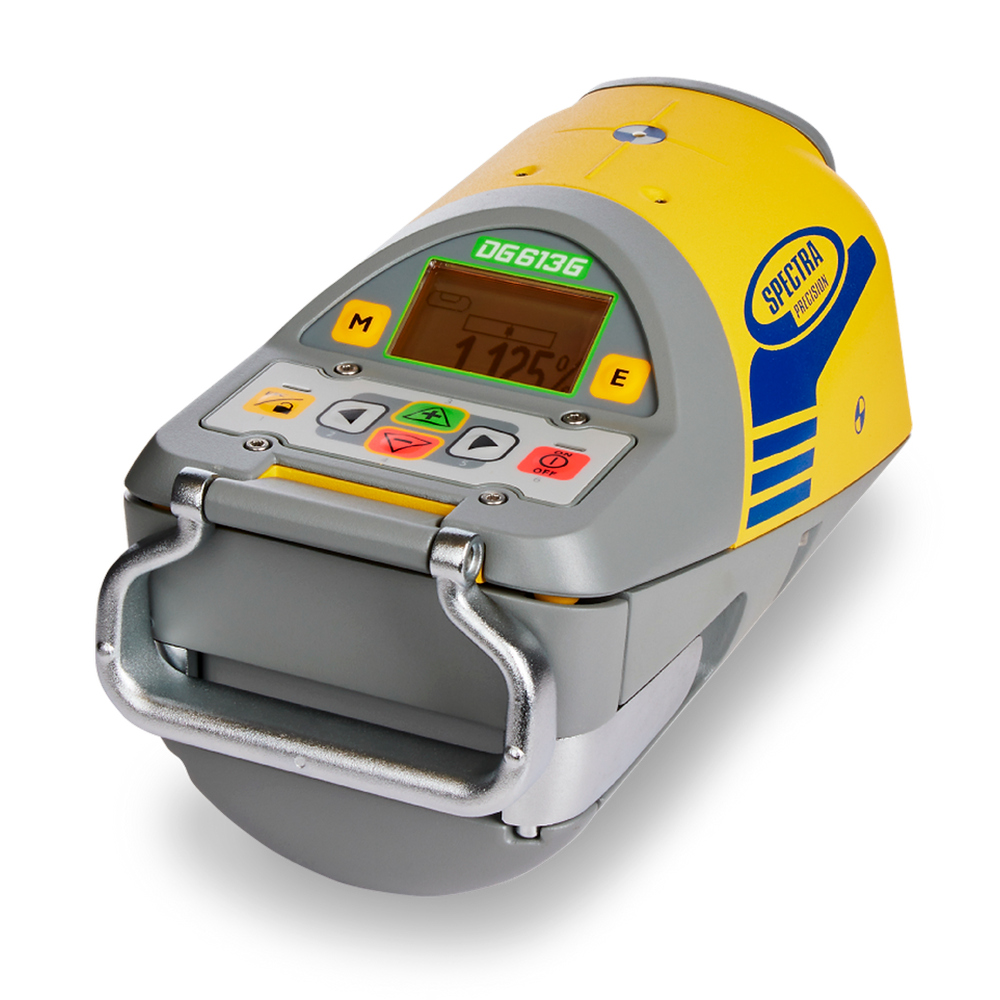

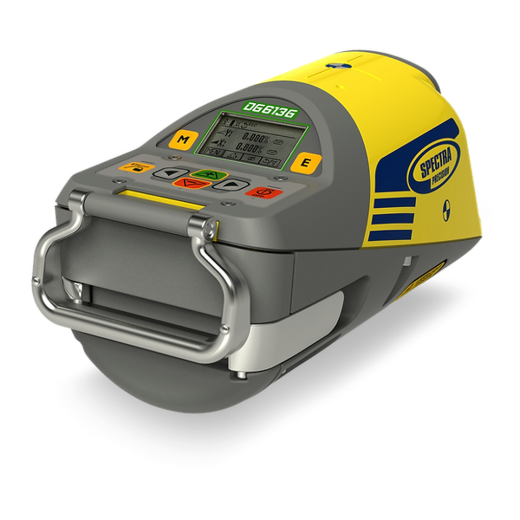

Spectra Precision DG613G Green Beam Laser

Mfr.: Spectra Precision
Item #: I090623
Mfr. #: DG613G
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $7,379.72
i h h

Description

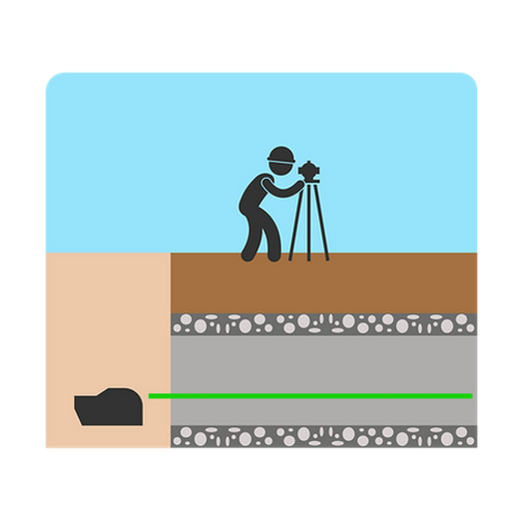

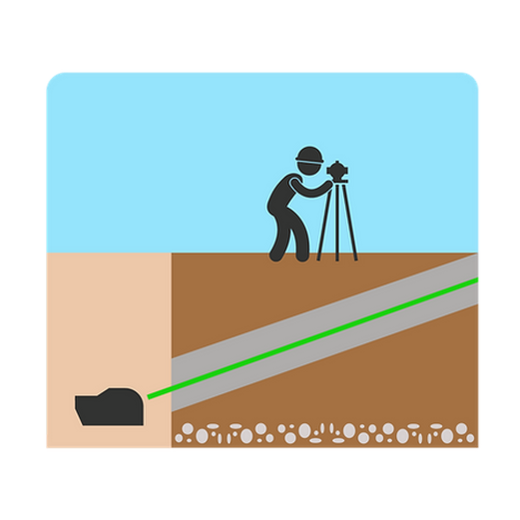

The DG613G extra-bright green beam laser combines great performance with productivity in a compact design. It is specifically built to fit into the tightest inverts in manholes, making setup easier and more efficient. This laser features a grade range from -12% to +40% and is fully self-leveling across the entire range with cross-axis compensation. The powerful green beam provides a working distance of up to 150m (500ft), ensuring full operation in a single setup even in bright conditions.

Features

  • Grade range of -12% to +40%

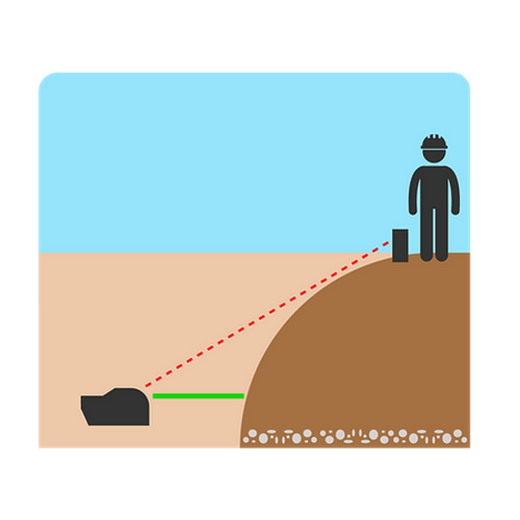

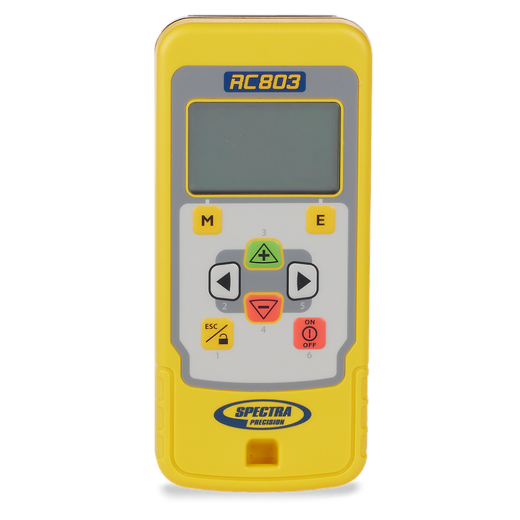

  • Operating range up to 150 m (500 ft) with radio / IR remote control
  • Ultra-fast beam movement and large intuitive graphical display
  • IP68 protection (dust and waterproof) for durability in wet conditions
  • Advanced functions including Line Set/Check, Line Scan, and Line Alert
  • Cross axis compensation for quicker and more accurate setup
Products specifications
Self-Leveling Range Longitudinal: Over the entire grade range with au
Accuracy +/- 1.5 mm/30 m, (1/16 in @ 100 ft) 10 arc second
Laser Type Class 3A/3R, <5mW OR Class 2
Power Source 10000mAh NiMH battery pack
Battery Life 30 hours (NiMH)
Grade Range -12% to +40%
Operating Range up to 150 m (500 feet)
Storage Temperature -20 degC to 70 degC (-4 degF to 158 degF)
Operating Temperature -20 degC to 50 degC (-4 degF to 122 degF)
Dust Waterproof IP 67
Weight 3.98 kg (6.61 lbs)
Tripod Mount 5/8 x 11 horizontally
Warranty 5 Years
*
*
*
