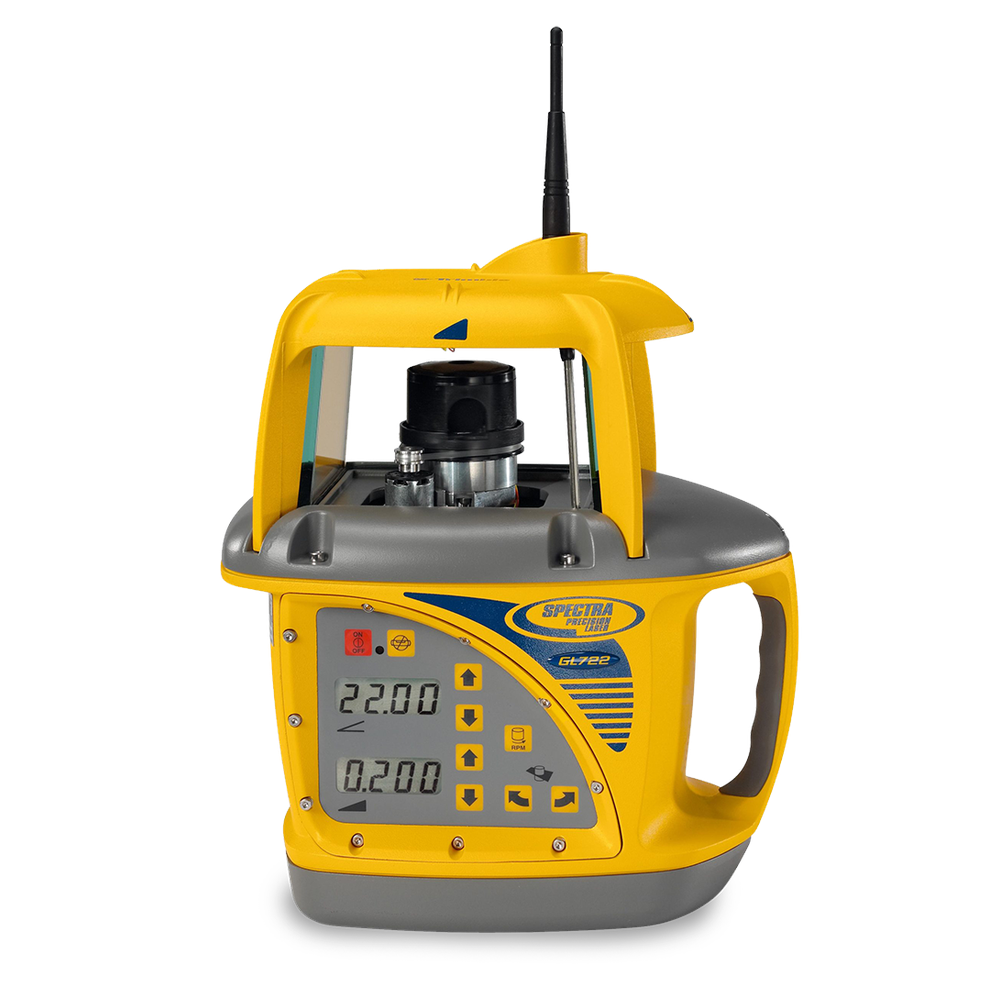

Spectra Precision Dual Grade Infrared Laser GL722 Kit

Mfr.: Spectra Precision
Item #: I090597
Mfr. #: GL722IR
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $10,738.00
i h h

Description

The GL722 dual grade laser is an advanced grade laser designed for long range operation and high accuracy in specialized rail and grade applications. This specific infrared model is ideal for rail work where red beams are not permitted, offering an invisible beam without sacrificing performance. It features active temperature compensation and a fully sealed, rugged aluminum housing for reliable operation in any weather. The unit includes advanced features like automatic axis alignment and a long-range wireless remote for efficient, single-operator set-up.

Features

  • Infrared Model - optimized for rail work where red beams are prohibited
  • Active Temperature Compensation for stable results across variable conditions
  • Fully Sealed, Rugged Aluminum Housing with weather-resistant control panel
  • Automatic Axis Alignment for precise alignment to grade hubs

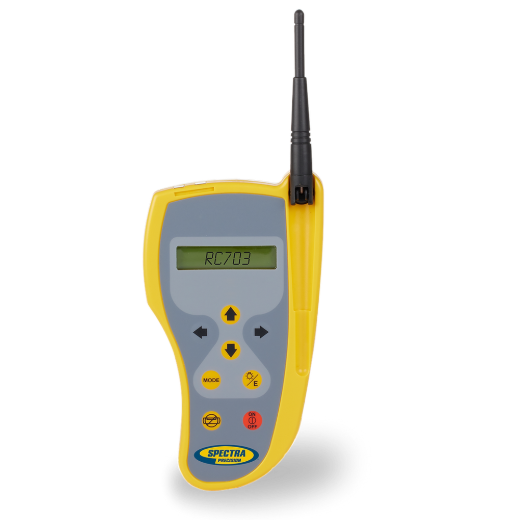

  • Long range remote control up to 225m (750ft) for full functional laser control
  • Machine Control Compatible with all laser-based machine systems
Products specifications
Width 25.4 cm (10.0 in), 25.4 cm (10.0 in), 25.4 cm (10.0 in)
Axis Grade Range X -10 to +10%
Axis Grade Range Y -0.500 to +25%
Self-Leveling to 25%
Grade Resolution 0.001%
Servo Deadband Accuracy 4.6 arc seconds
Laser Classification CDRH II (IECI)

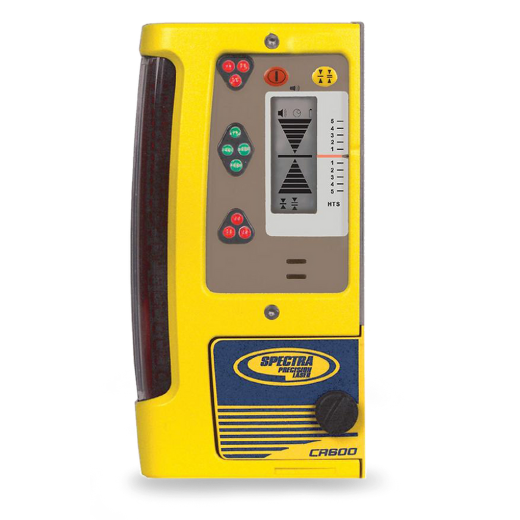

RangeRadius 450 m (1500 ft) with machine-mounted receivers
Mounting Threads 5/8 inch x 11 inch
Waterproof Housing Waterproof Aluminum Housing
Weight 8.5 kg (18.8 lbs.)
Height 29.8 cm (11.75 in)
Depth 19.7 cm (7.75 in)
Radio Type 2.4 GHz spread spectrum
General Operation Range 225 m (750 ft)
Automatic Alignment Range 150 m (500 ft)
*
*
*
