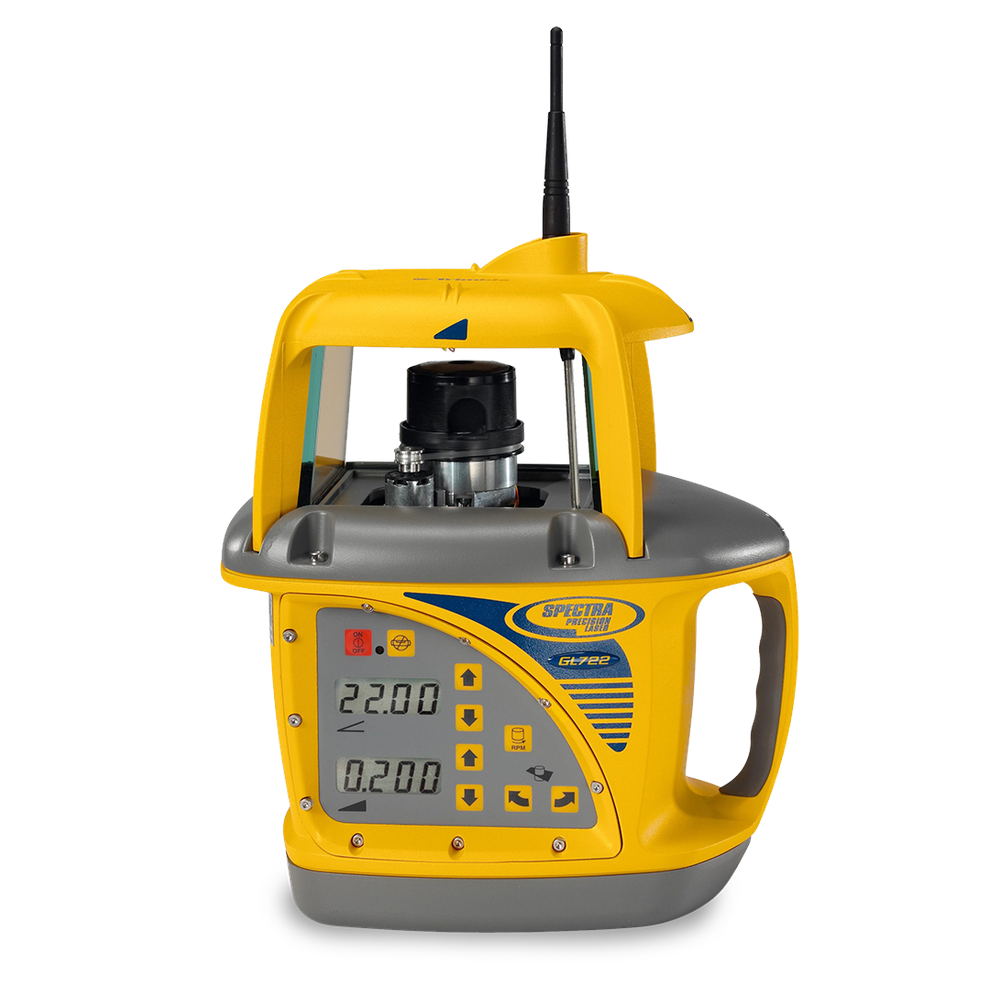

Spectra Precision Dual Grade Laser GL722 System

Mfr.: Spectra Precision
Item #: I090596
Mfr. #: GL722-BCR
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $9,558.00
i h h

Description

The GL722 dual grade laser is one of the most advanced grade lasers on the market, offering long-range operation and advanced radio remote capabilities. Features like grade matching, Planelok, and Automatic Axis Alignment ensure quick and highly accurate set-ups for any grade application. Built with a rugged aluminum housing, it is designed to maintain high performance even in inclement weather and demanding job site conditions.

Features

  • Active Temperature Compensation for accurate, stable results regardless of temperature changes.
  • Long Range Wireless Link allows full functional control even when the laser is on a 3m tripod.
  • Automatic Axis Alignment allows you to align automatically to your grade hub, eliminating costly errors.
  • Fully Sealed, Rugged Aluminum Housing with weather-resistant control panel for all-weather durability.
  • Grade Reverse mirrors the grade setting with the push of a button (e.g., flipping +1% to -1%).
  • Machine Control Compatible for use with all laser-based machine control systems.
Products specifications
Axis Grade Range X -10 to +10%
Axis Grade Range Y -0.500 to +25%
Self-Leveling Up to 25%
Grade Resolution 0.001%
Servo Deadband Accuracy 4.6 arc seconds
Laser Classification CDRH II (IECI)
Operating Range (Radius) 450 m (1500 ft) with machine-mounted receivers
Mounting Threads 5/8 inch x 11 inch (3 1/2 inch x 8 inch adapter o
Housing Waterproof Aluminum Housing
Weight 8.5 kg (18.8 lbs.)
Dimensions 29.8 x 25.4 x 19.7 cm (11.75 x 10.0 x 7.75 in)
Remote Control Radio Type 2.4 GHz spread spectrum
Remote Control Range 225 m (750 ft) general operation; 150 m (500 ft)
Remote Battery Life 2.5 weeks

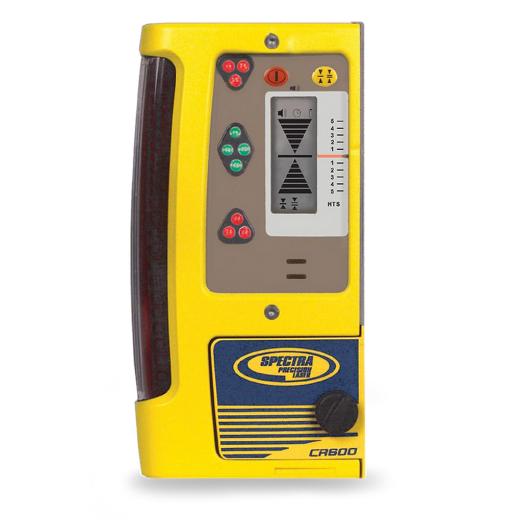

Receiver Included CR600
*
*
*
