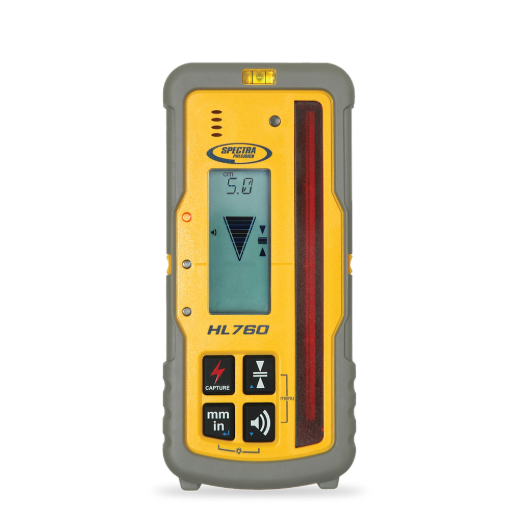

  • Spectra Precision Dual-Slope Grade Laser with HL760 Receiver Kit

Spectra Precision Dual-Slope Grade Laser with HL760 Receiver Kit

Mfr.: Spectra Precision
Item #: I090590
Mfr. #: GL622N
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $4,472.20
i h h

Description

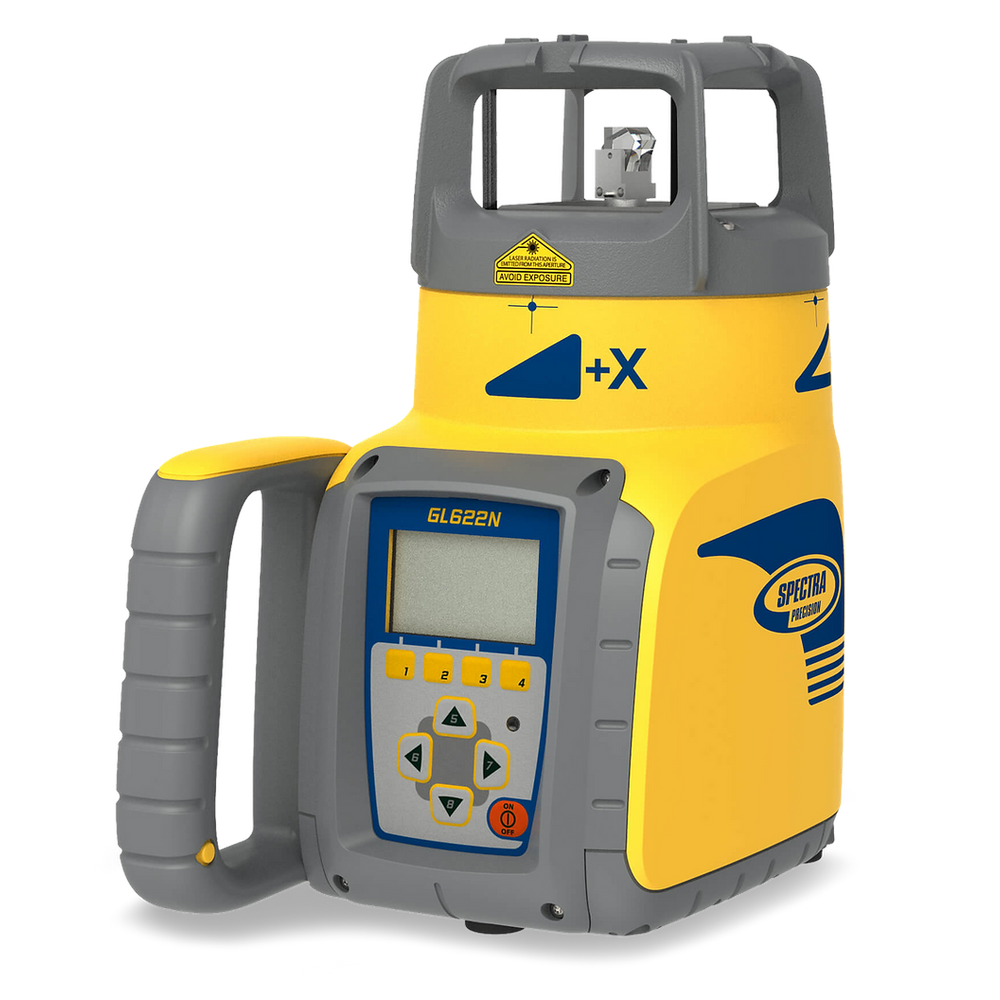

The GL622N is a rugged, automatic self-levelling dual grade laser capable of grades from -25% to +25%. It is designed for a wide variety of grade, excavating, and alignment applications by general and specialty contractors. The system provides one-person elevation and grade control with an 800-meter (2,600-foot) diameter range to increase jobsite productivity. It also features automatic axis alignment and PlaneLok technology to maintain high accuracy and eliminate costly errors.

Features

  • Automatic self-levelling for fast, easy setup in horizontal, grade, or vertical alignment.
  • Automatic Grade Matching wirelessly communicates with the receiver to automatically calculate unknown grades.
  • Large grade range from -25% to 25% accommodates a wide variety of project requirements.
  • Anti-Vibration Filter allows continued operation in high wind or excessive vibration environments.
  • PlaneLok function keeps the laser beam fixed to a receiver position to eliminate temperature-induced errors.
  • Rugged design withstands a 1m (3 feet) drop onto concrete, reducing costly repairs.
  • Mask Mode allows the laser beam to be turned off on up to three sides to avoid false readings.
Products specifications
Leveling Accuracy +/-0.5mm/10m, 1/16 inch @100ft, 10 inch
Grade Accuracy +/- 1.0 mm/10 m, 1/8 inch @ 100 ft, 20 arc second
Grade temperature drift sensitivity +/- 0.3mm/10m/1 degC; 1/16in@310ft@1 degF
Operating Diameter Approx. 800 m (2600 feet) with detector
Grade Range +/- 25% both axes (not simultaneously)
Rotation 300, 600, 750 rpm
Laser Type 639 nm
Laser Class Class 2
Self-leveling Range approx. +/- 14 deg
Power Source NiMH battery pack
Battery Life 35 hours NiMH
Operating Temp. -20 degC to 50 degC (-4 degF to 122 degF)
Storage Temp. -20 degC to 70 degC (-4 degF to 158 degF)
Tripod Attachments 5/8 x 11 horizontally and vertically
Dust and Waterproof Yes - IP67
Weight 3.1 kg (6.8 lbs)
Warranty 5 Years
*
*
*
