Spectra Precision GL412N Single Grade Laser System

Mfr.: Spectra Precision
Item #: I090586
Mfr. #: GL412N
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $3,357.10
i h h

Description

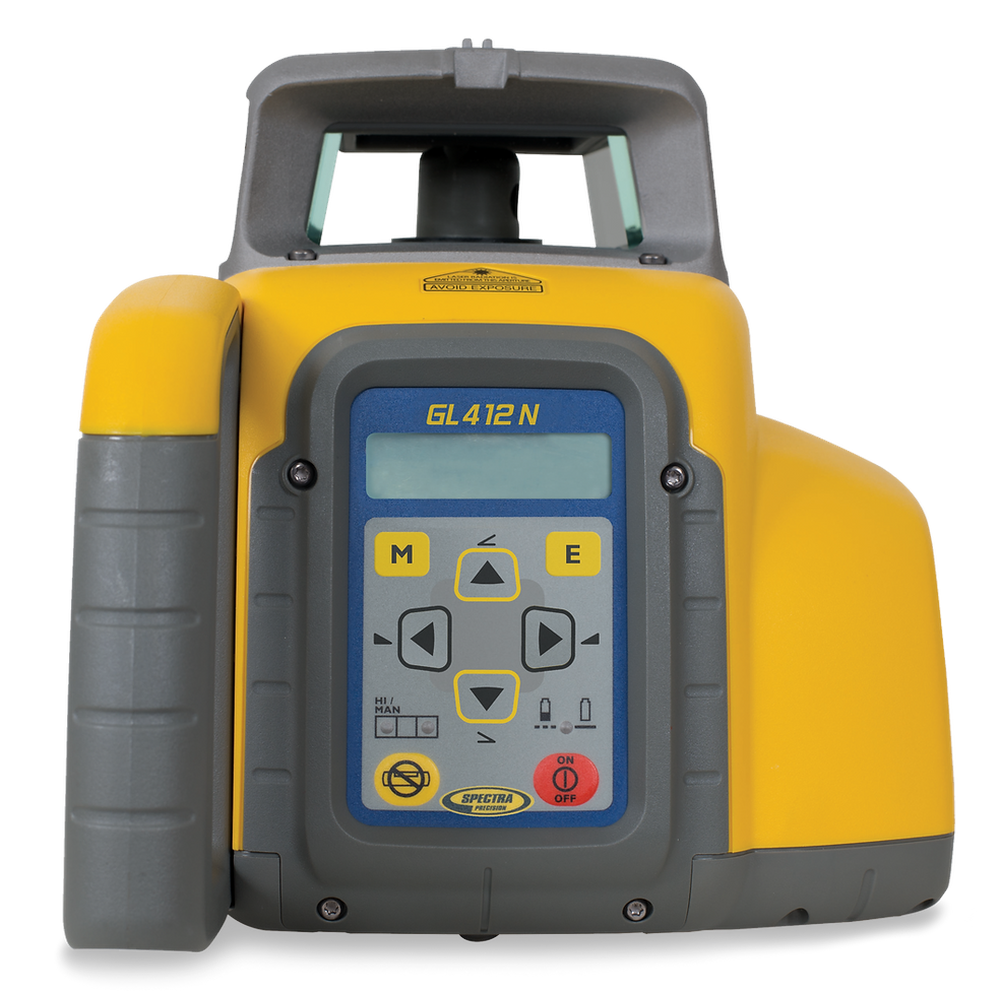

The GL412N is a rugged, self-leveling single grade laser designed for long-range operation and precision across a grade range up to 15%. This versatile tool offers a large operating diameter of up to 2,600 feet and includes a radio remote control for making grade changes from up to 330 feet away, significantly reducing setup time. Built for the toughest job sites, the laser is IP66 rated and can withstand drops of up to one meter onto concrete and tripod tip-overs. Pairing the laser with the HL760 receiver enables advanced features like automatic Grade Match and PlaneLok for increased site efficiency.

Features

  • Easy-to-use menu-driven interface reduces learning time and simplifies activation of advanced features.
  • One person elevation control with a 2600 ft (800 m) diameter range increases overall productivity.
  • RC402N radio remote control allows for full laser function control from up to 330 ft (100 m) away.
  • Durable IP66 environmental rating ensures performance in rainy, dusty, and harsh weather conditions.
  • Automatic Grade Match and Mask mode eliminate error-prone calculations and interference with other crews.
Products specifications
Leveling Accuracy +/- 1.5mm/30m, 1/16 inch @ 100ft, 10 arc sec
Operating Diameter Approx. 800 m (2600 feet)
Grade Range -10% to +15% (Single Axis GL412N)
Rotation 300, 600 rpm
Laser Type red diode laser 650 nm
Laser Class Class 2, <3.4 mW
Self-Leveling Range +/- 5 deg (+/-9%)
Leveling Indicators LCD indications and LED flashes
Radio Range (HL760) up to 100 m (330 ft)
Power Source 10.000 mAh NiMH battery pack (Alkalines can be us
Battery Life 35 hours NiMH; 50 hours alkaline
Operating Temp -20 degC to 50 degC (-4 degF to 122 degF)
Storage Temp -20 degC to 70 degC (-4 degF to 158 degF)
Tripod Attachments 5/8 x 11 horizontally and vertically
Dust Waterproof Yes - IP66
Weight 3.1 kg (6.8 lbs)
Warranty 5 Years
*
*
*
