Spectra Precision GL710 Single Grade Laser

Item #: I090592
Mfr. #: GL710-BCC
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $6,136.00
i h h

Description

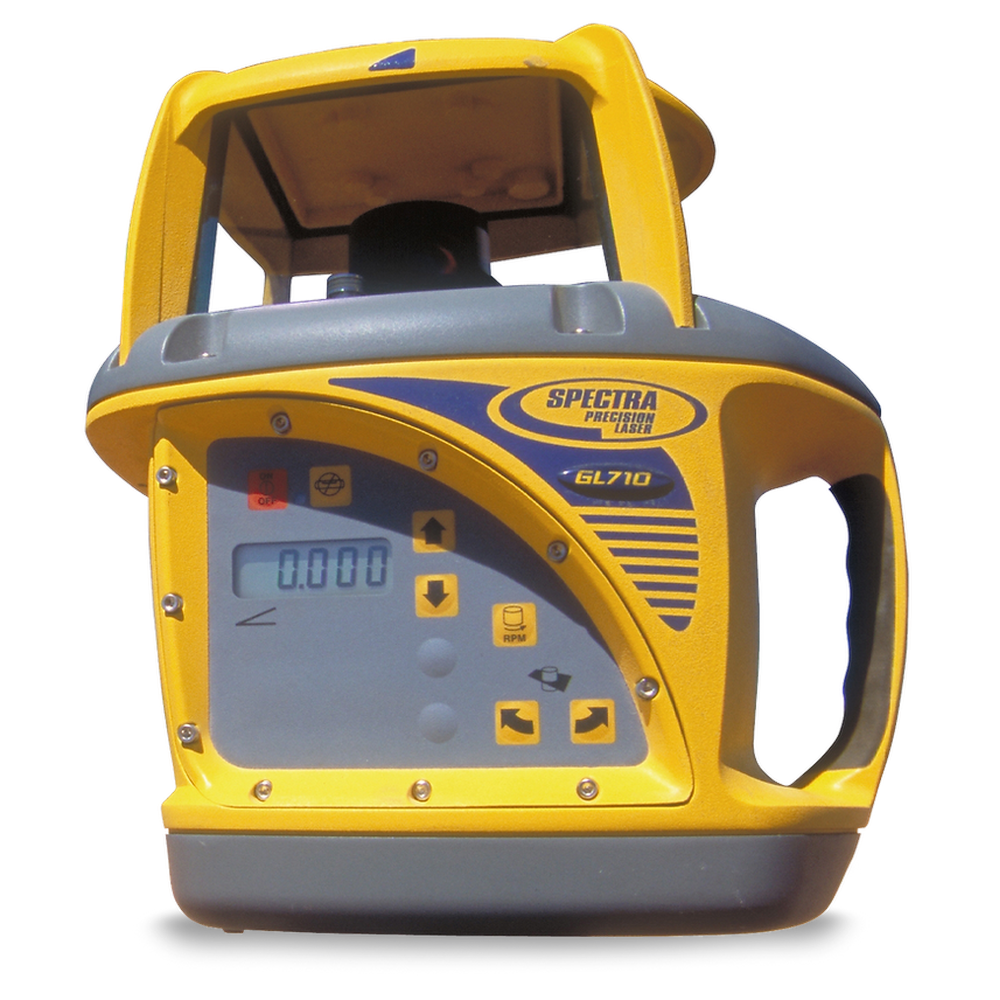

The Spectra Precision GL710 is a high-performance, automatic self-leveling single grade laser designed for the most demanding construction and earthmoving applications. As part of the industry-leading GL700 series, the GL710 delivers unmatched accuracy and stability over long distances, making it the ideal tool for site preparation, trenching, pipe-laying, and machine control.

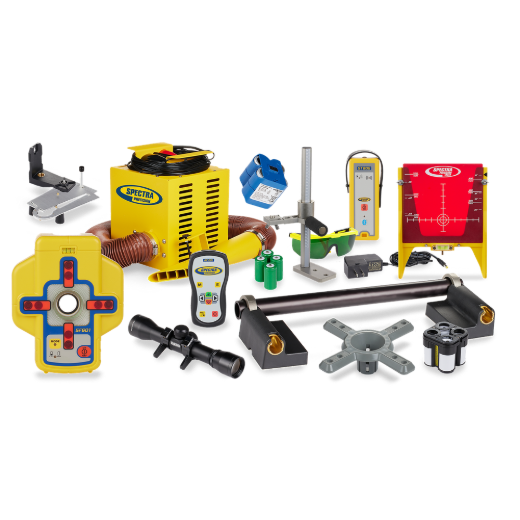

This configuration (GL710-BCC) includes the GL710 Single Grade Laser, high-capacity 10 Ah NiMH rechargeable batteries, a charger, and a rugged carrying case. The laser offers a versatile grade range from -0.5% to +25% on a single axis and provides an extensive operating diameter of up to 900 meters (3,000 feet). Built to withstand harsh jobsite conditions, it features a fully sealed aluminum housing and an IP66 environmental rating.

  • Active Temperature Compensation: Ensures stable and accurate results despite significant temperature fluctuations.
  • Long-Range Performance: Provides a working radius of 450 meters (1,500 feet) for large-scale projects.
  • High Precision: Maintains an accuracy of 1.5 mm at 30 meters (1/16 inch at 100 feet).
  • Rugged Construction: Features a fully sealed aluminum housing and protective lens hood for all-weather reliability.
  • User-Friendly Interface: Equipped with a large alphanumeric display and intuitive keypad for rapid setup.
Products specifications
Grade Range -0.5% to +25%
Accuracy +/-1.5 mm @ 30 m (1/16 inch @ 100 ft)
Operating Range 900 m (3,000 ft) diameter
Rotation Speed 300, 600, 900 RPM
Self-Leveling Range +/-5 degrees
Laser Type 635 nm, Class 2
IP Rating IP66
Power Source 10 Ah NiMH Rechargeable
Battery Life Up to 45 hours
Tripod Thread 5/8-11
Weight 8.5 kg (18.8 lbs)
Dimensions 29.8 x 25.4 x 19.7 cm
*
*
*
