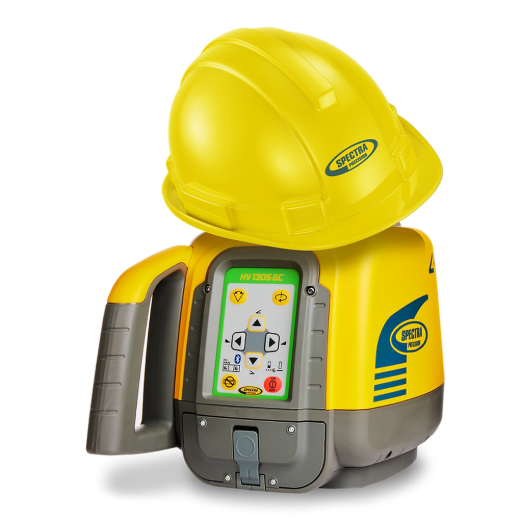

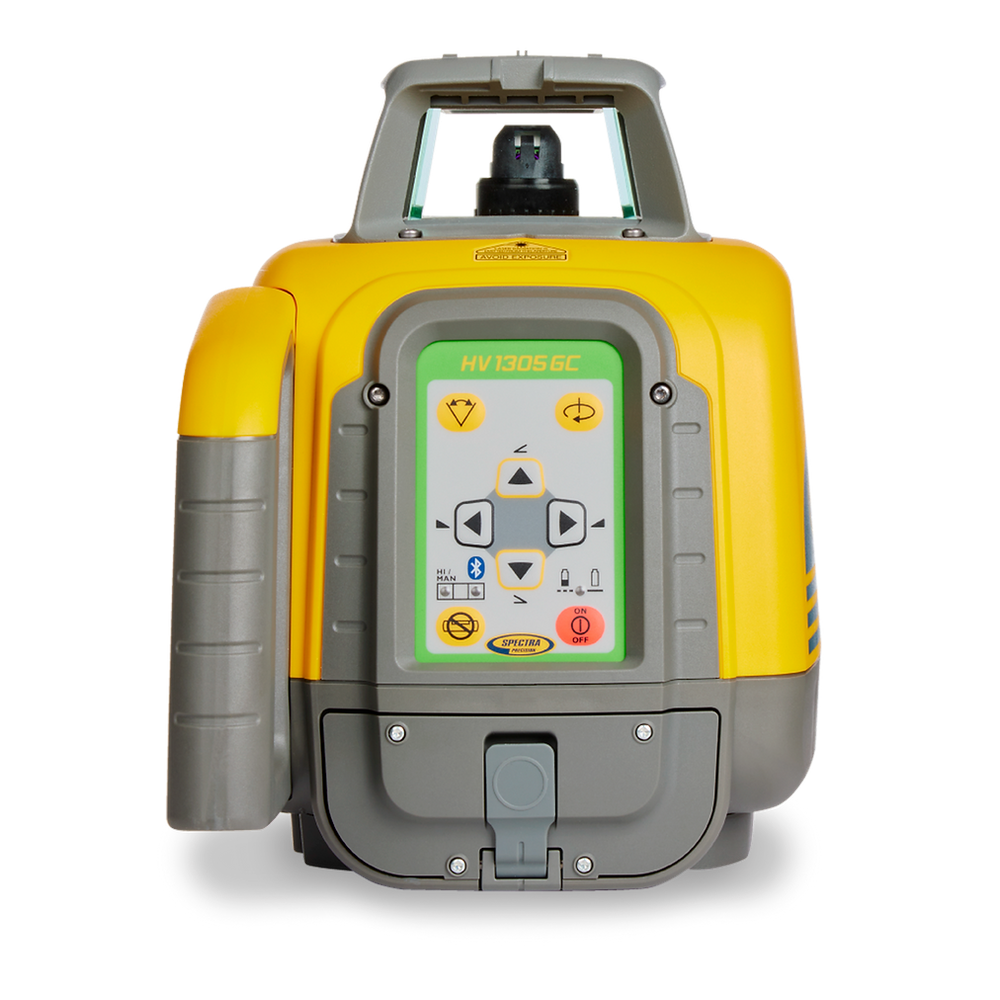

Spectra Precision HV1305GC Green Beam Laser Level Kit

Mfr.: Spectra Precision
Item #: I090583
Mfr. #: HV1305GC-7
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $2,642.02
i h h

Description

The automatic self-leveling Spectra Precision HV1305GC green beam laser is a rugged, cost-effective solution for both horizontal and vertical alignment. Even in harsh jobsite conditions, the laser delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The high-visibility green beam is easily visible even in brightly lit conditions and includes a Bluetooth connection for control via a smartphone. It is extremely durable and portable, featuring a professional-grade design with a 5-year warranty.

Features

  • Complete leveling crew in a case securely holds all components including the tripod and grade rod.
  • Automatic horizontal and vertical self-leveling with an accuracy of 1.5mm @ 30 m.

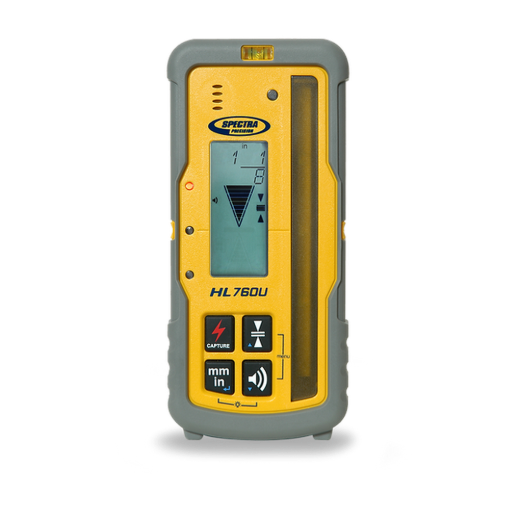

  • Extended working range of up to 1200m (4,000 ft) diameter when paired with the HL760U receiver.
  • Height of Instrument Alert stops rotation when the unit is jarred to avoid erroneous readings.

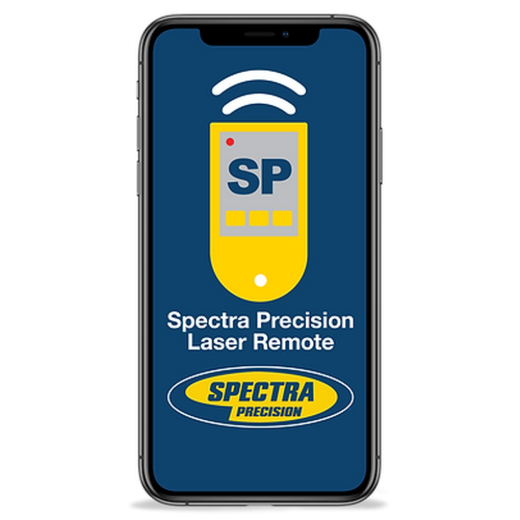

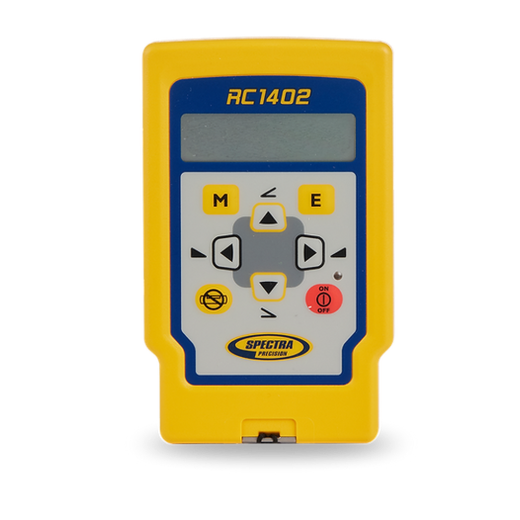

  • Bluetooth connection allows laser control through a smartphone app or remote control from anywhere on the job site.
Products specifications
Leveling Accuracy +/- 1.5mm/30m, 1/16in@100ft (10 inch), +/- 1.5mm/30m, 1/16in@100ft (10 inch)
Operating Diameter wHL760 Typ. 1200 m (4000 feet), Typ. 1200 m (4000 feet)
Rotation Preset 0, 10, 100, 200, 300 and 600 rpm; Adjustab, Preset 0, 10, 100, 200, 300 and 600 rpm; Adjustab
Scan Angles Preset 5,15,45,90; Adj 5 deg incr, Preset 5,15,45,90; Adj 5 deg incr
Laser Type 510 - 530 nm, 510 - 530 nm
Laser Class Class 2 / Class 3, Class 2 / Class 3
Self-leveling Range Typ. +/- 5 deg (+/- 8.7%), Typ. +/- 5 deg (+/- 8.7%)
Leveling Indicators LED flashes, LED flashes
Radio Range (HL760) up to 100 m (330 ft), up to 100 m (330 ft)
Power Source 10,000 mAh NiMH battery pack or 4 x 1.5V D alkali, 10,000 mAh NiMH battery pack or 4 x 1.5V D alkali
Battery Life HV1305GC up to 30 hours
Battery Charging Time < 10 hours
Operating Temperature -20 degC to +50 degC (-4 degF to +122 degF)
Storage Temperature -25 degC to +70 degC (-13 degF to +158 degF)
Tripod Attachments 5/8 x 11 horizontally and vertically
Dust and Waterproof Yes - IP66
Weight 3.49 kg (7.7 lbs)
Product Dimensions 240mm x 280mm x 180mm (9.45 in x 11.02 in x 7.09
Warranty 5 Years
*
*
*
