Spectra Precision Line Receiver with C20 Rod Clamp

Mfr.: Spectra Precision
Item #: I090600
Mfr. #: HR1220
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $241.90
i h h

Description

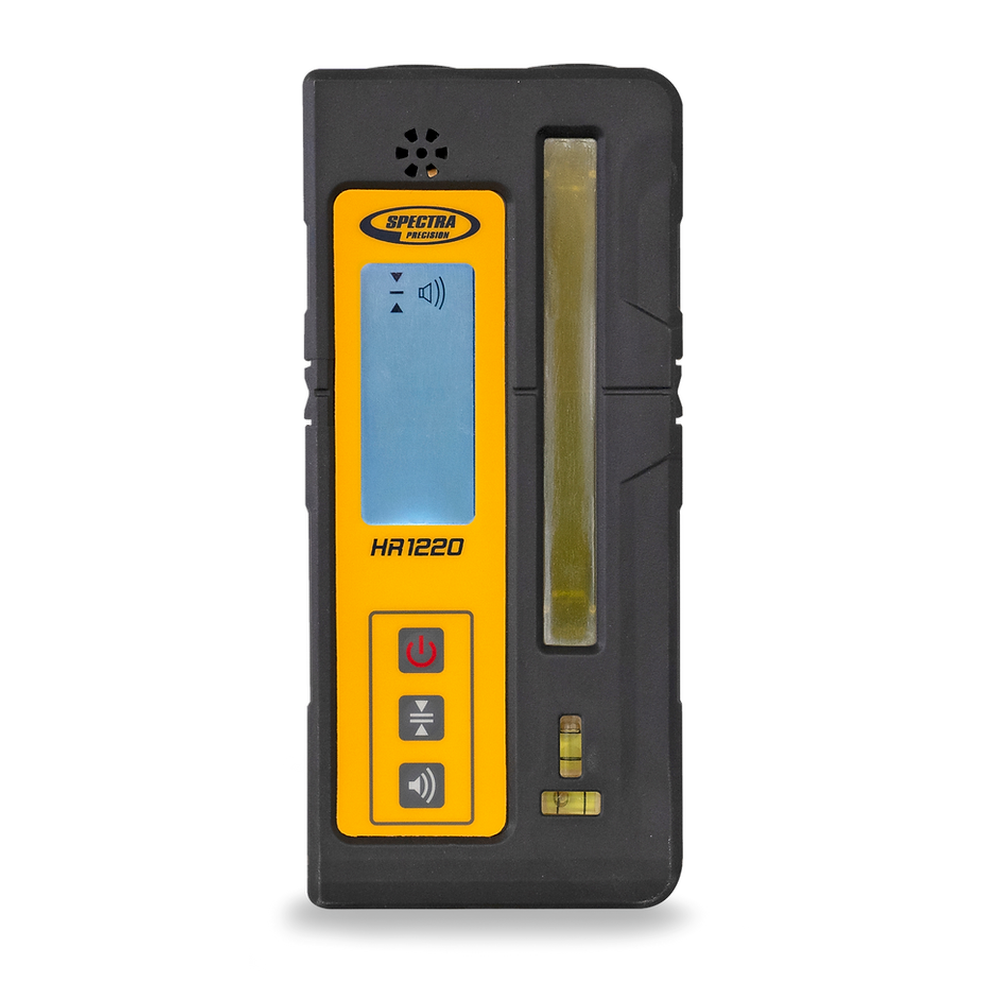

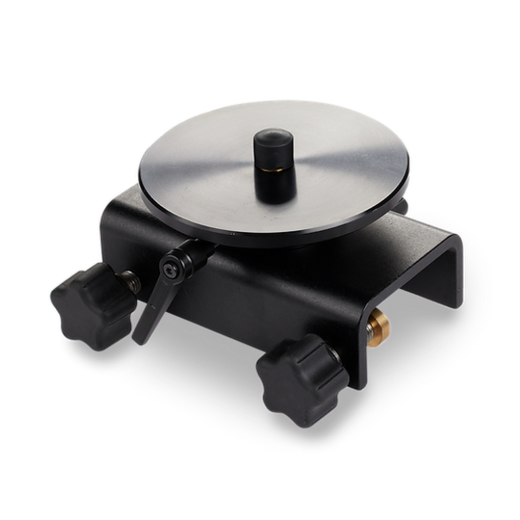

The Laser Receiver detects both red and green laser beams generated from crossline lasers including the LT52R, LT52G, LT56, and LT58G. It extends the indoor working range of these tools and increases versatility by allowing outdoor use when the beam may not be visible. This kit includes the C20 rod clamp for easy attachment to grade rods or staffs.

Features

  • Green and Red Beam Line Laser Receiver
  • Front and rear LCDs provide easy viewing from either side
  • Large 80 mm (3 inch) reception height for quick beam acquisition
  • Built-In magnets on top of receiver for quick attachment to ceiling grids or metal studs
  • 3-Year Warranty
Products specifications
Working Radius 85 m (275 ft.)
Laser Detection Height 127.0 mm (5 inch)
Elevation Readout Front and rear LCDs
Audio Control Loud / Low / Off
Capture Height 80 mm (3.1 inch)
Accuracy +/-1.0 mm (1/16 inch) / +/-2.0 mm (1/8 inch)
Marking Notches 60 mm (2.36 inch) below top of receiver
Battery Life 40+ hours
Low Battery Indicator Battery symbol on LCD
Power Supply 2 AA alkaline batteries
Operating Temperature -10 degC to 50 degC (-14 degF to 122 degF)
Storage Temperature -20 degC to 70 degC (-4 degF to 158 degF)
Automatic Shut-Off 30 min
*
*
*
