Spectra Precision LL100N Laser Level Package

Mfr.: Spectra Precision
Item #: I090562
Mfr. #: LL100N-2
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $932.20
i h h

Description

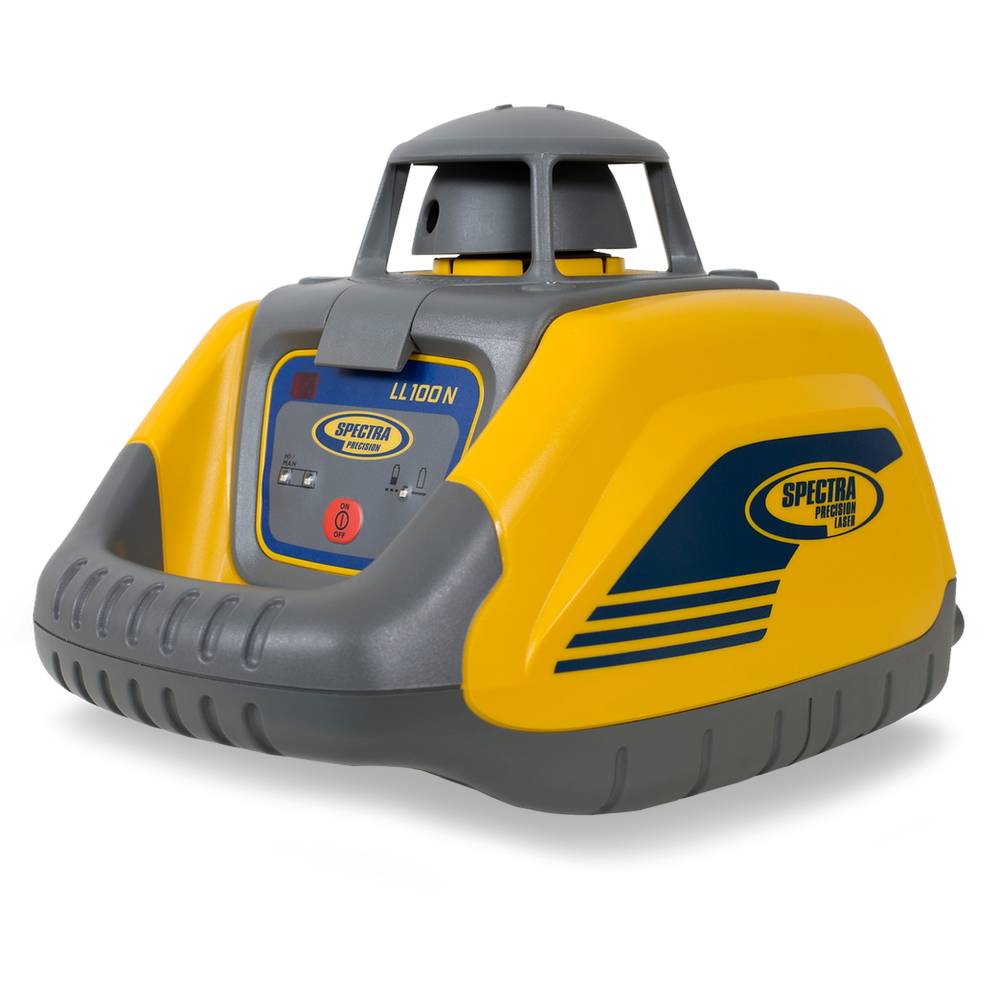

The Spectra Precision LL100N Laser Level is a complete one-man leveling crew in a portable system case. This fully automatic, self-leveling laser increases productivity with fast setups and minimal training. Designed for durability, the LL100N can withstand tough jobsite conditions and includes a Height of Instrument Alert that stops the unit from rotating if jarred to avoid erroneous readings.

Features

  • Automatic self-leveling increases productivity with fast setups and minimal training.
  • Working range of 1,150 ft (350 m) diameter provides extensive jobsite coverage.
  • Height of Instrument Alert stops laser rotation if elevation changes occur to avoid errors.
  • Extremely durable design allows the laser to withstand a drop of up to 3 feet (1 m) onto concrete.

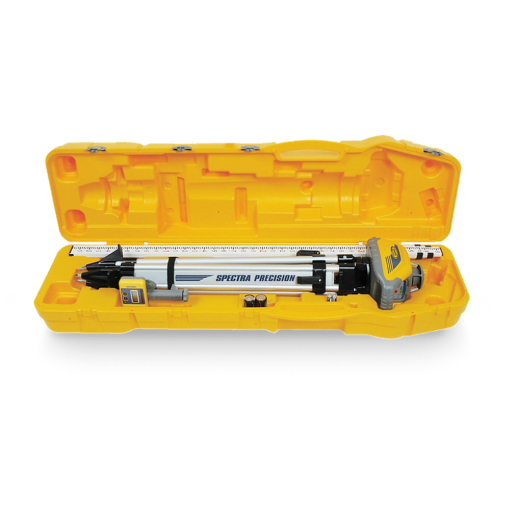

  • Complete system fits in one carrying case with the tripod and grade rod for easy portability.
  • Simple one-button operation allows for quick start-up and ease of use.
Products specifications
Laser Source 650 nm visible, Class 2
Laser Accuracy +/-1/8 in at 100 ft (+/-3 mm at 30 m)
Compensation Method Electronic self-leveling / +/-5 degrees
Operating Range 1,150 ft (350 m) diameter with receiver HR320
Out of Level Warning Rotor stops, laser shuts off, red out-of-level LE
Rotation Speed 600 RPM
Operating Temperature 23 degF to 113 degF (-5 degC to 45 degC)
Storage Temperature -4 degF to 158 degF (-20 degC to 70 degC)
Battery Life 80 Hours Alkaline
Size 8.5L x 6.7W x 6.0H in (21.6L x 17.1W x 15.2H cm)
Water Resistant IP Rating IP54
Weight 1.5 kg (3.3 lbs)
Warranty 2 Years

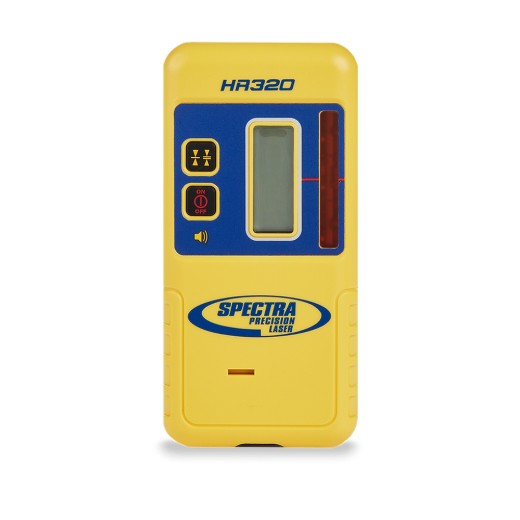

Receiver Accuracy (HR320) Fine 1/16 in (2 mm) / Standard 1/4 in (6 mm)
Receiver Battery Life (HR320) 70 hrs
*
*
*
