Spectra Precision LL100N Laser Level Package with Receiver, Clamp, Tripod, Grade Rod

Mfr.: Spectra Precision
Item #: I090561
Mfr. #: LL100N-1
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $932.20
i h h

Description

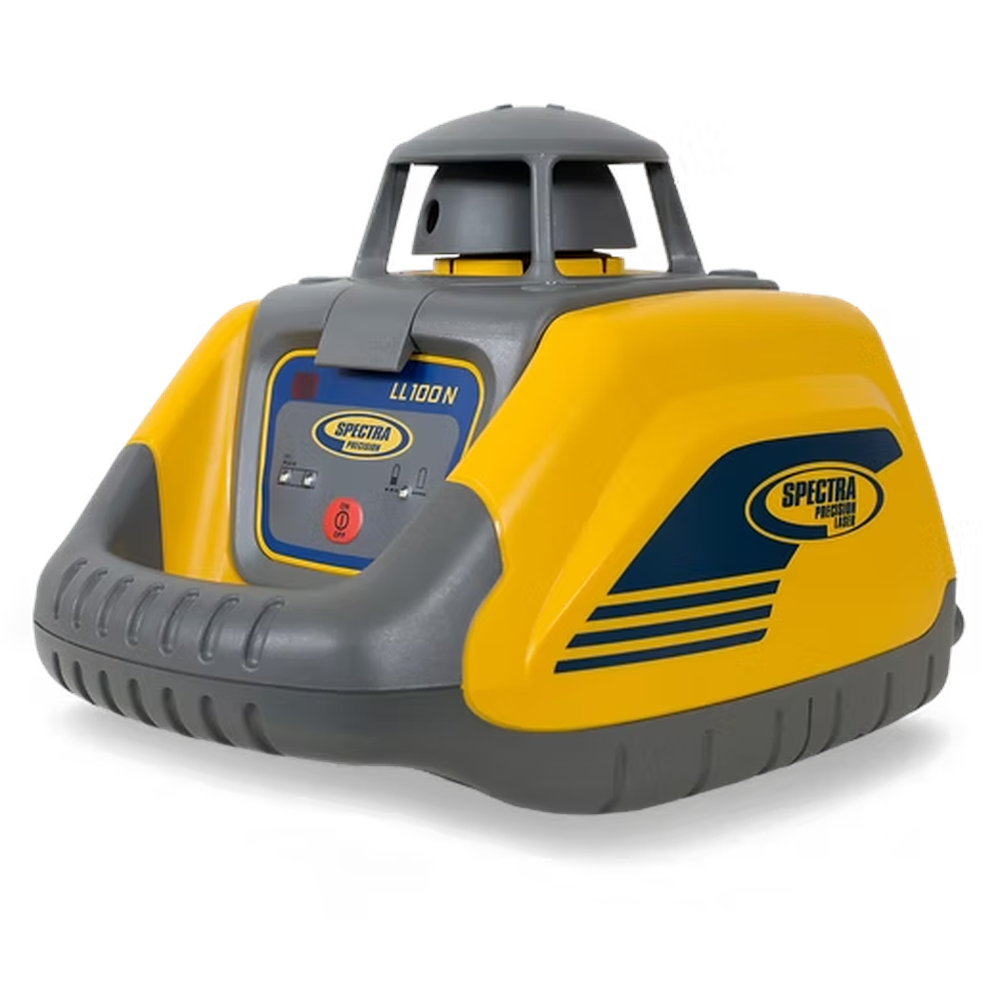

The LL100N Laser Level is a complete one-man leveling crew in a case designed for increased productivity on various job sites. It features automatic self-leveling for fast setups and simple one-button operation for quick start-up. This durable unit is built to withstand tough jobsite conditions and includes a height of instrument alert to prevent erroneous readings if the unit is jarred.

Features

  • Automatic self-leveling increases productivity with fast setups and minimal training
  • One person elevation control with 1,150 ft (350 m) diameter range
  • Height of Instrument alert stops laser rotation if elevation changes occur to avoid erroneous readings
  • Durable construction can withstand tough jobsite conditions
  • Single axis manual slope mode (with RC601 Remote Control)

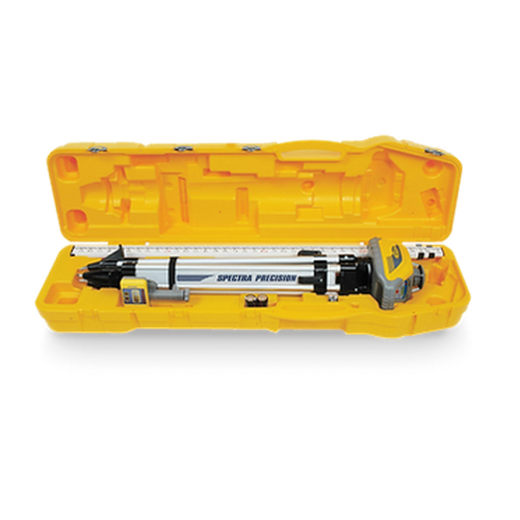

  • Complete kit available that fits in one case with tripod and grade rod
Products specifications
Laser Source 650 nm visible, Class 2
Laser Accuracy +/-1/8 in at 100 ft (+/-3 mm at 30 m)
Compensation Method Electronic self-leveling / +/-5 degrees
Operating Range 1,150 ft (350 m) diameter with receiver HR320
Out of Level Warning Rotor stops, laser shuts off, red out-of-level LE
Rotation Speed 600 RPM
Operating Temperature 23 degF to 113 degF (-5 degC to 45 degC)
Storage Temperature -4 degF to 158 degF (-20 degC to 70 degC)
Battery Life 80 Hours Akaline
Size 8.5L x 6.7W x 6.0H in (21.6L x 17.1W x 15.2H cm)
Water Resistant IP Rating IP54
Weight 1.5 kg (3.3 lbs)
Warranty 2 Years

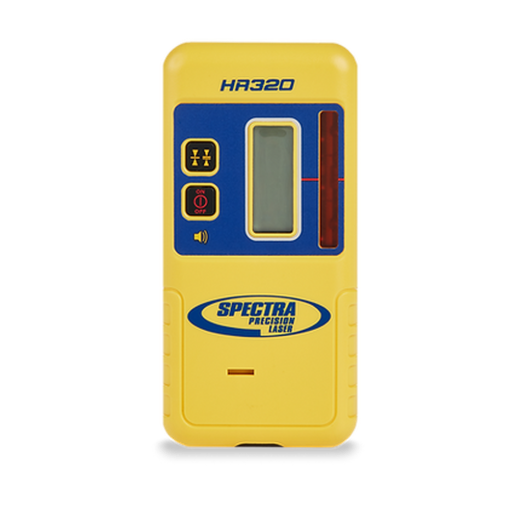

Receiver Model HR320
Receiver On-Grade Sensitivities Fine 1/16 in (2 mm), Standard 1/4 in (6 mm)
Receiver LCD Channels 5
Receiver Battery Life 70 hrs
Receiver Automatic Shutoff 30 minutes
Receiver Dust Waterproof Yes IP67
*
*
*
