Spectra Precision LL500 Laser Level with HL700 receiver and C70 rod clamp

Mfr.: Spectra Precision
Item #: I090573
Mfr. #: LL500
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $2,230.20
i h h

Description

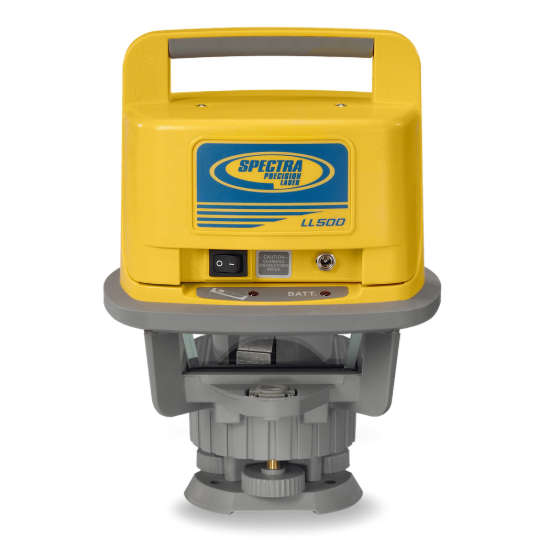

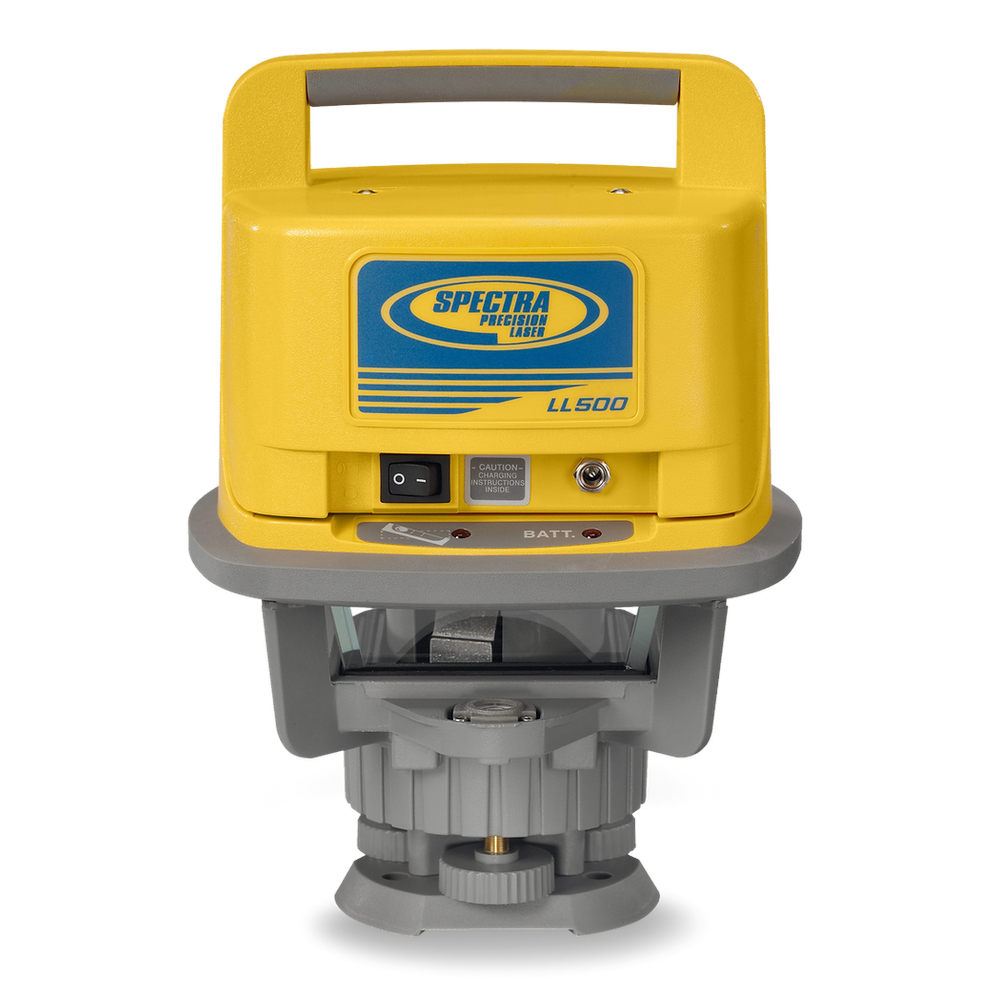

The Laser level LL500 is a one-person leveling system designed for longer range measurements across your entire site. Accurate, stable and reliable, the LL500 features a 1,650 ft (500 m) working diameter which increases productivity by reducing the need for multiple setups on a large job site. This proven workhorse is ideally suited for high-accuracy job sites, including concrete work, and has been trusted for over 40 years.

Features

  • Temperature Compensation provides highly stable, repeatable accuracy even under large temperature changes
  • One Person Elevation Control with 1,650 ft (500 m) diameter range increases productivity
  • Self-leveling with built-in shut off for increased accuracy over the entire work area and reduced errors
  • Maintains performance even in harsh job site conditions
  • Ideally suited for high-accuracy job sites, including concrete work
Products specifications
Self-Leveling Range +/-11 arc minutes
Compensation Type Wire Hung, Air Damped
Accuracy 1.5 mm at 30 m (1/16 in at 100 ft)
Laser Type 670nm visible, Class 2
Battery Life at 20C (68F) 4 D-Cell Alkaline - 175 hrs; NiMH - 100 hrs
Operating Diameter 500m (1,600ft)
Operating Temperature -20 degC to 50 degC (-4 degF to 122 degF)
Weight 3.6 kg (8 lbs)
Tripod Mount 5/8 in x 11
Warranty 5 Years
*
*
*
