Spectra Precision LL500 Laser Level with HL700 Receiver, C70 Rod Clamp, NiMH Batteries and Charger

Mfr.: Spectra Precision
Item #: I090575
Mfr. #: LL500-4
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $2,383.60
i h h

Description

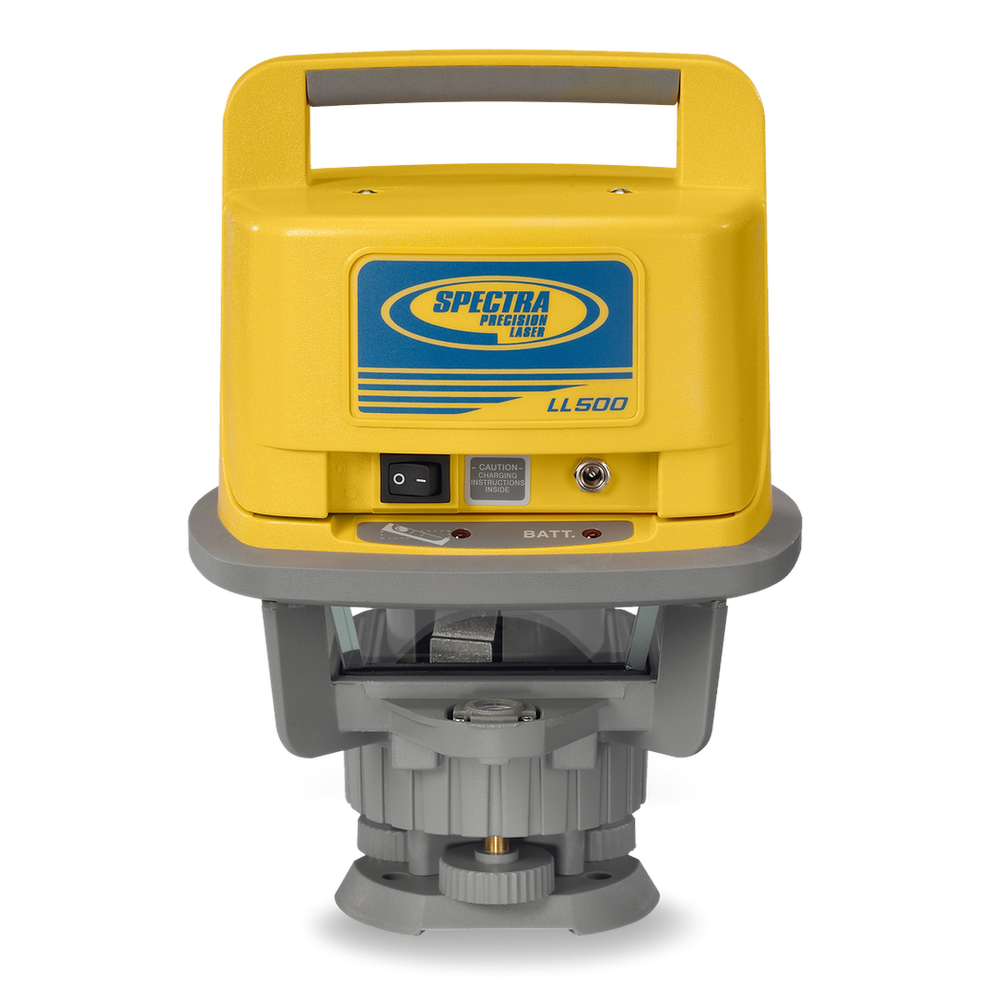

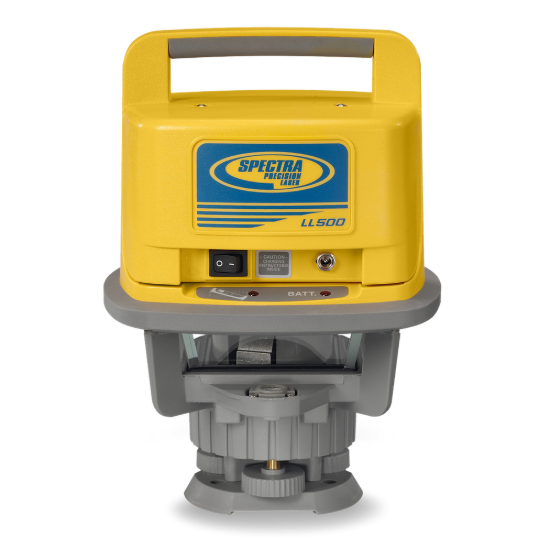

The Laser level LL500 is a one-person leveling system designed for longer range measurements across your entire site. Accurate, stable and reliable, the LL500 features a 1,650 ft (500 m) working diameter which increases productivity by reducing the need for multiple setups on a large job site. This proven workhorse has been trusted for over 40 years for high-accuracy job sites, including concrete work.

Features

  • Temperature Compensation provides highly stable, repeatable accuracy even under large temperature changes.
  • One Person Elevation Control with 1,650 ft (500 m) diameter range increases productivity.
  • Self-leveling with built-in shut off for increased accuracy and reduced errors.
  • Maintains performance even in harsh job site conditions.

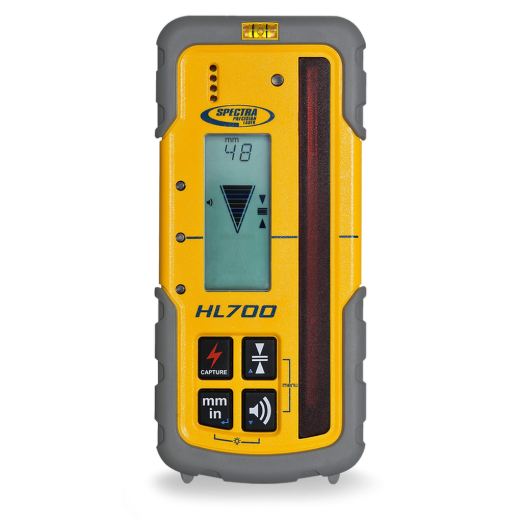

  • Comes with a digital readout receiver featuring six on-grade sensitivities.
Products specifications
Self-Leveling Range +/-11 arc minutes
Compensation Type Wire Hung, Air Damped
Accuracy 1.5 mm at 30 m (1/16 in at 100 ft)
Laser Type 670nm visible, Class 2
Battery Life (Laser) 4 D-Cell Alkaline - 175 hrs, NiMH - 100 hrs
Operating Diameter 500m (1,600ft)
Operating Temperature (Laser) -20 degC to 50 degC (-4 degF to 122 degF)
Weight (Laser) 3.6 kg (8 lbs)
Tripod Mount 5/8 in x 11
Warranty (Laser) 5 Years
Receiver Reception Height 127mm (5 inches)
Receiver Weight 0.27kg (9 1/2 oz)
Receiver On-Grade Sensitivities Ultra Fine 0.5 mm, Super Fine 1 mm, Fine 2 mm, Me
Receiver Battery Life 60+ hours continuous operation
Receiver Warranty 3 Years No Excuses
Dust Waterproof Yes
*
*
*
