Spectra Precision Universal Laser RC603N with Receivers, Clamps, Adapters, Spot Finder, Batteries, C

Mfr.: Spectra Precision
Item #: I090598
Mfr. #: UL633N
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $6,018.00
i h h

Description

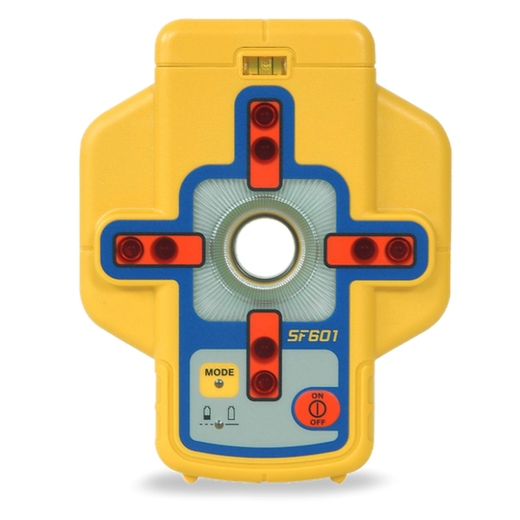

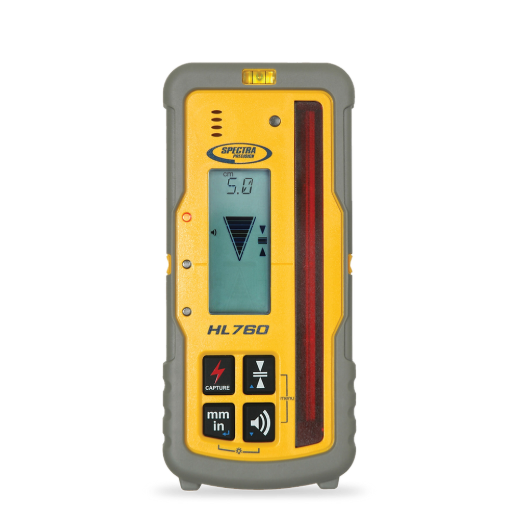

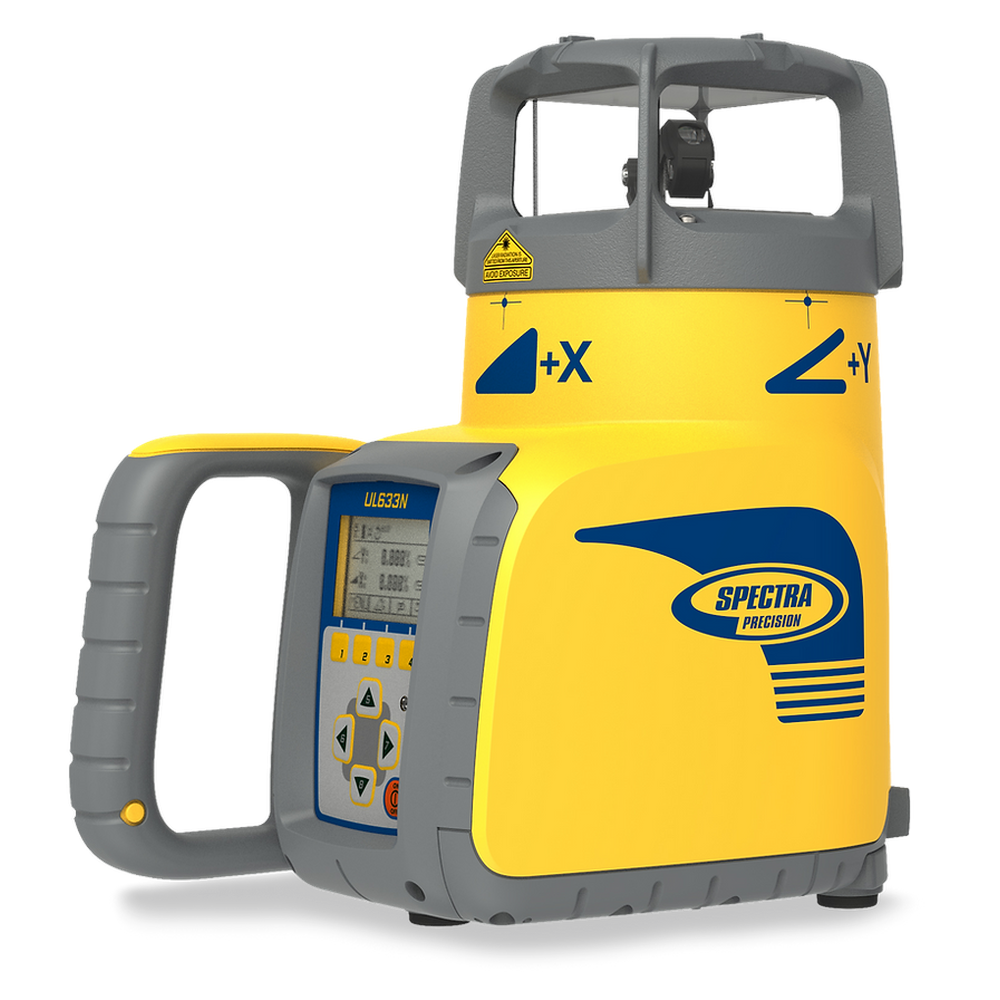

The Spectra Precision Universal Laser is a comprehensive construction tool designed to control level, alignment, single/dual grade, and vertical applications. It is an all-in-one solution that includes the SF601 Spot Finder for enhanced 90-degree layout versatility on concrete pads and interior walls. This rugged system comes equipped with two HL760 advanced digital readout receivers and is built to withstand the toughest jobsite conditions.

Features

  • Automatic Self-Leveling provides fast and easy setup for horizontal level, grade, or vertical alignment.
  • Automatic Grade Matching allows the laser to move to the on-grade position automatically via wireless communication.
  • Large fully compensated grade range from -25% to 25% maintains accuracy across various slopes.
  • Automatic Axis Alignment facilitates quick setup and eliminates costly errors when working with grade hubs.
  • Rugged design withstands a 1m (3 ft) drop directly onto concrete or a 1.5m (5 ft) tripod pushover.
  • PlaneLok function keeps the laser beam fixed to a receiver to eliminate errors from temperature fluctuations.
Products specifications
Grade Range Accuracy +/- 1.0 mm/10 m, 1/8 inch @ 100 ft, 20 arc second
Grade Range YX +/- 25% both axes (not simultaneously)
Grade Range Z +/- 25%
Grade Temperature Drift Sensitivity +/- 0.3mm/10m/1 degC; 1/16in@310ft@1 degF
Rotation 0 - 750 rpm
Scan Mode 5 preset sizes + variable adjustment
Laser Type Class Red diode laser 650 nm / Class 3
Radio Range up to 150 m (490 ft)
Power Source Life NiMH battery pack/alkalines / 35 hours NiMH
Operating Temperature -20 degC to 50 degC (-4 degF to 122 degF)
Storage Temperature -20 degC to 70 degC (-4 degF to 158 degF)
Tripod Attachments 5/8 x 11 horizontally and vertically
Dust Waterproof Yes - IP67
Weight 3.1 kg (6.8 lbs)
Warranty 5 Years
*
*
*
