  • Stabila BATTER BOARD & FORM MOUNT BRACKET FOR LASERS

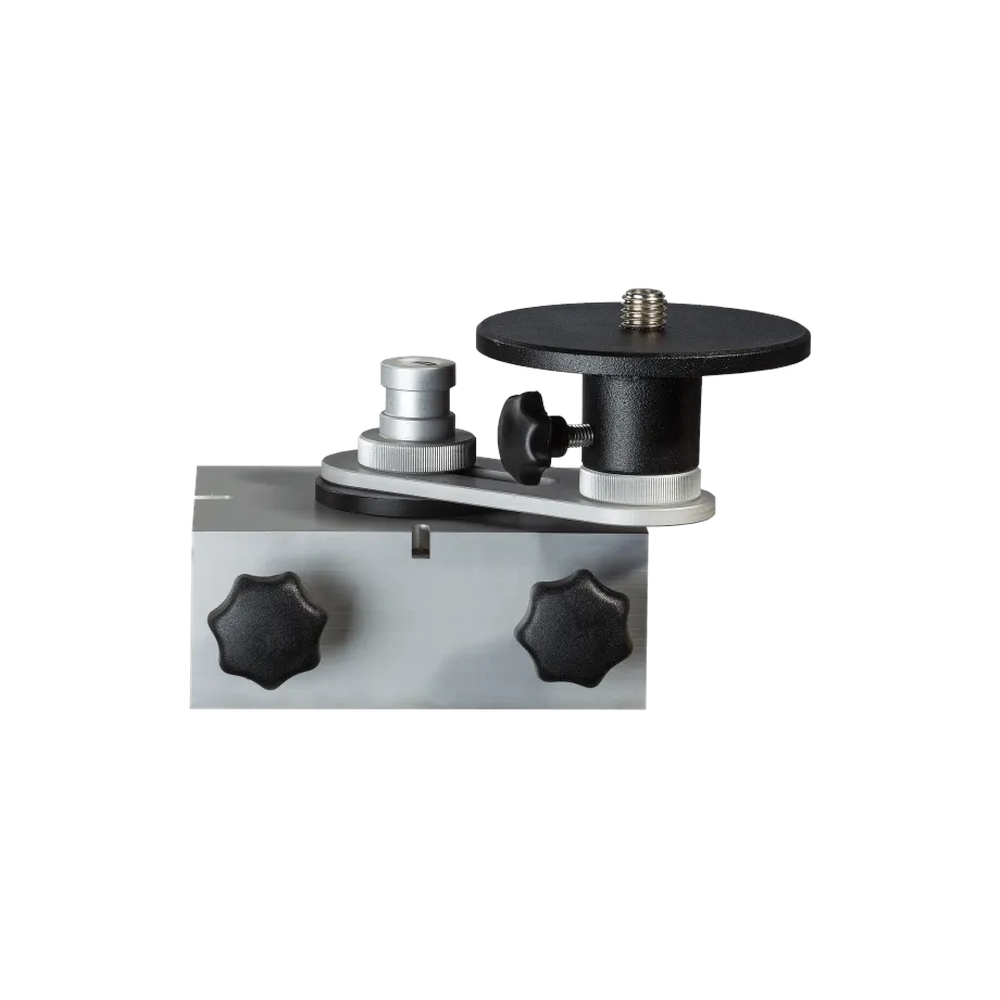

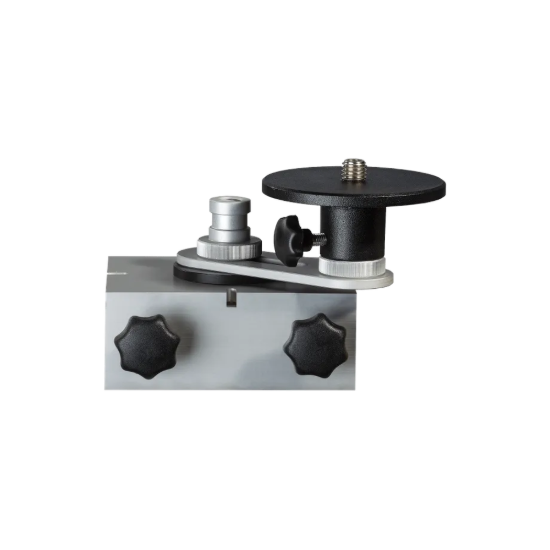

Stabila BATTER BOARD & FORM MOUNT BRACKET FOR LASERS

Mfr.: Stabila
Item #: I090455
Mfr. #: 07410
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $234.82
i h h

Description

The Stabila 07410 is a specialized mounting solution designed for the secure and precise placement of laser levels on batter boards and forms during construction. This robust metal bracket is ideal for both indoor and outdoor applications, providing a stable platform for accurate readings. Its adjustable design ensures that professional layouts and site alignments are executed with high precision and speed.
  • 360-Degree Rotation
  • All-Metal Construction

Features

  • Flexible guide rail allows for quick positioning and precise alignment of the laser device.
  • Versatile mounting allows for central positioning or off-center placement using the rotary plate.
  • Securely attaches to batter boards or forms with a thickness of up to 3.25 inches using four screws.
  • Adjustable by 2.5 inches (6.35 cm) to fine-tune the laser's position without repositioning the entire mount.

Includes

  • Stabila 07410 Laser Mount for Batter Boards
  • Removable Rotary Plate
  • Four Mounting Screws
Products specifications
Model Number 07410
Tripod Connection 5/8-11
Weight 3.45 lbs
Max Board Thickness 3.25 inches
Adjustment Range 2.5 inches
Rotation 360 degrees
Material Metal
*
*
*
