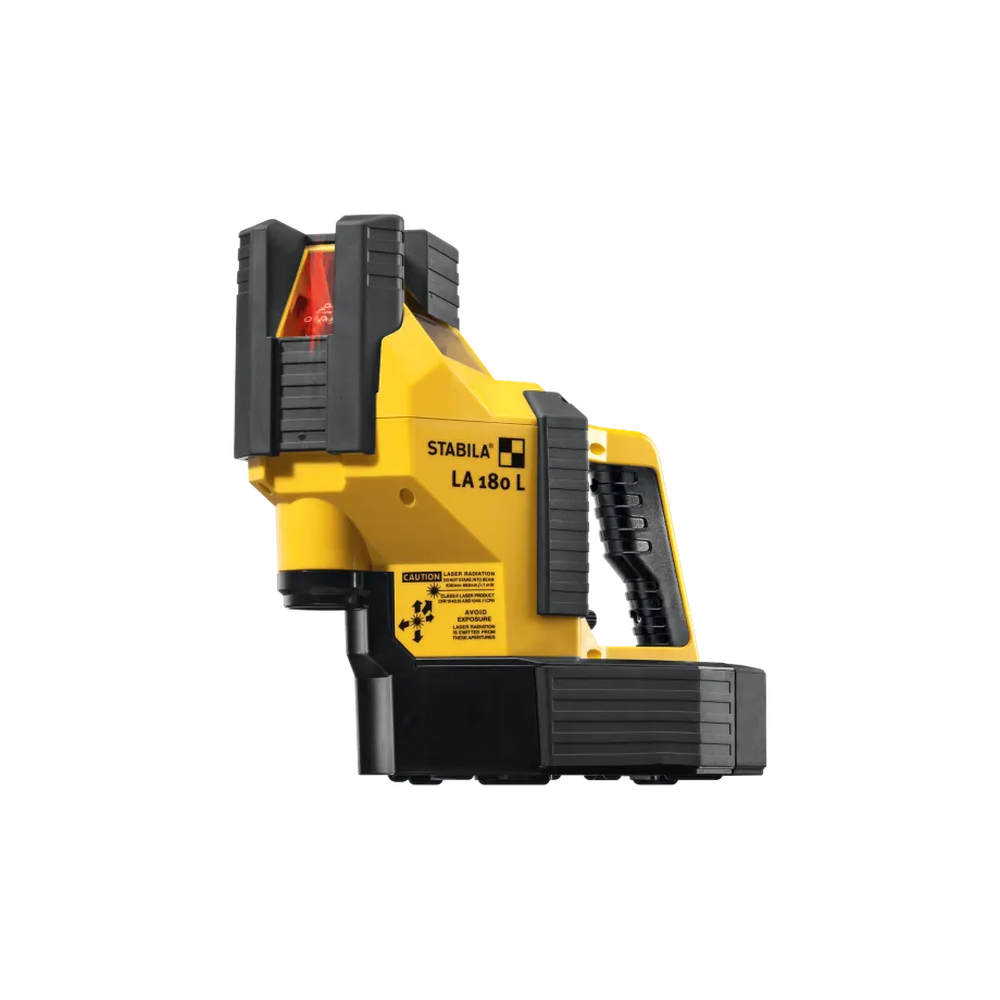

Stabila LA 180 L Layout Station with Auto Alignment Laser

Mfr.: Stabila
Item #: I090429
Mfr. #: 02180
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $2,756.48
i h h

Description

STABILA's LA 180 L Layout Station is a professional-grade, fully automatic self-leveling laser tool specifically engineered for rapid and precise layout work. Using innovative AUTO ALIGNMENT technology, the included RF receiver can automatically position the laser to establish perfect 90-degree angles and transfer axes over long distances. This powerful system is designed to significantly reduce labor costs and minimize measurement errors in commercial construction and masonry applications.
  • Self-leveling multi-line laser
  • Wireless AUTO ALIGNMENT technology
  • Indoor and outdoor capability

Features

  • Receiver controls laser positioning up to 150ft.

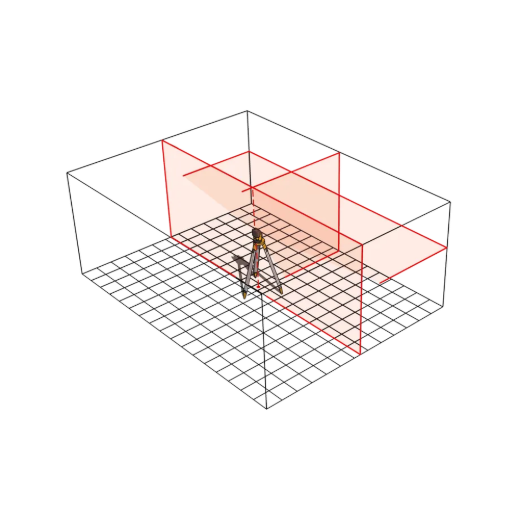

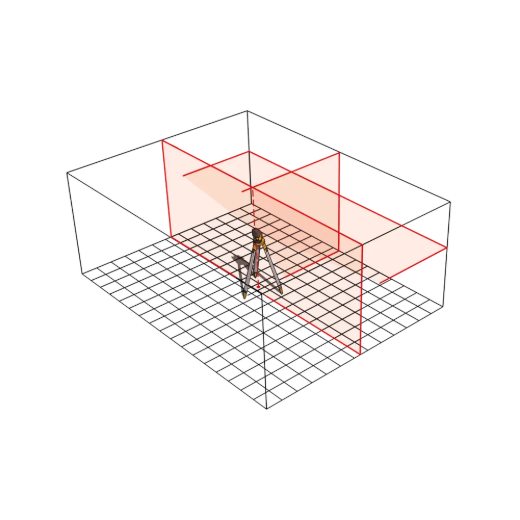

  • Projects three vertical and one horizontal line.
  • Unique housing for corner and edge positioning.
  • Plumb-line function for vertical point transfer.

Includes

  • LA 180 L multi-line laser
  • REC 410 line RF receiver with bracket
  • Laser enhancement glasses
  • Two target plates
  • Hard protective case
  • 4 D batteries and 3 AA batteries
Products specifications
Laser Class 2
Output < 1 mW
Laser Wavelength 635 nm
Self-leveling Range ± 5 deg
Leveling Accuracy ± 3/32 in @ 100 ft
Line Straightness ± 1/8 in @ 100 ft
Receiver Range 328 ft
Visible Line Range 65 ft
Operating Life 20 h
Protection Rating IP 54
Tripod Connection 5/8 inch-11
*
*
*
