  • Stabila LA-5P G 5-Point Green Layout Laser

Stabila LA-5P G 5-Point Green Layout Laser

Mfr.: Stabila
Item #: I090430
Mfr. #: 03165
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $472.00
i h h

Description

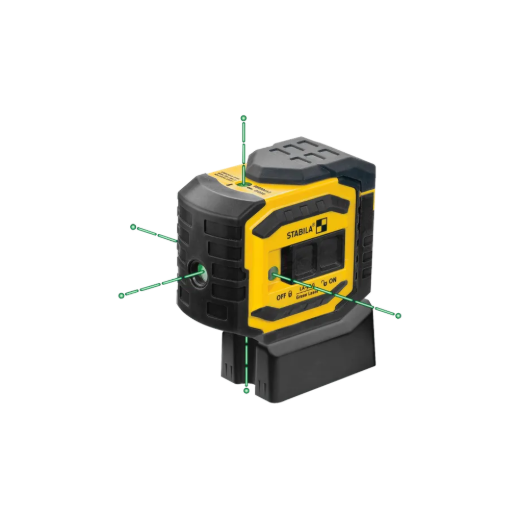

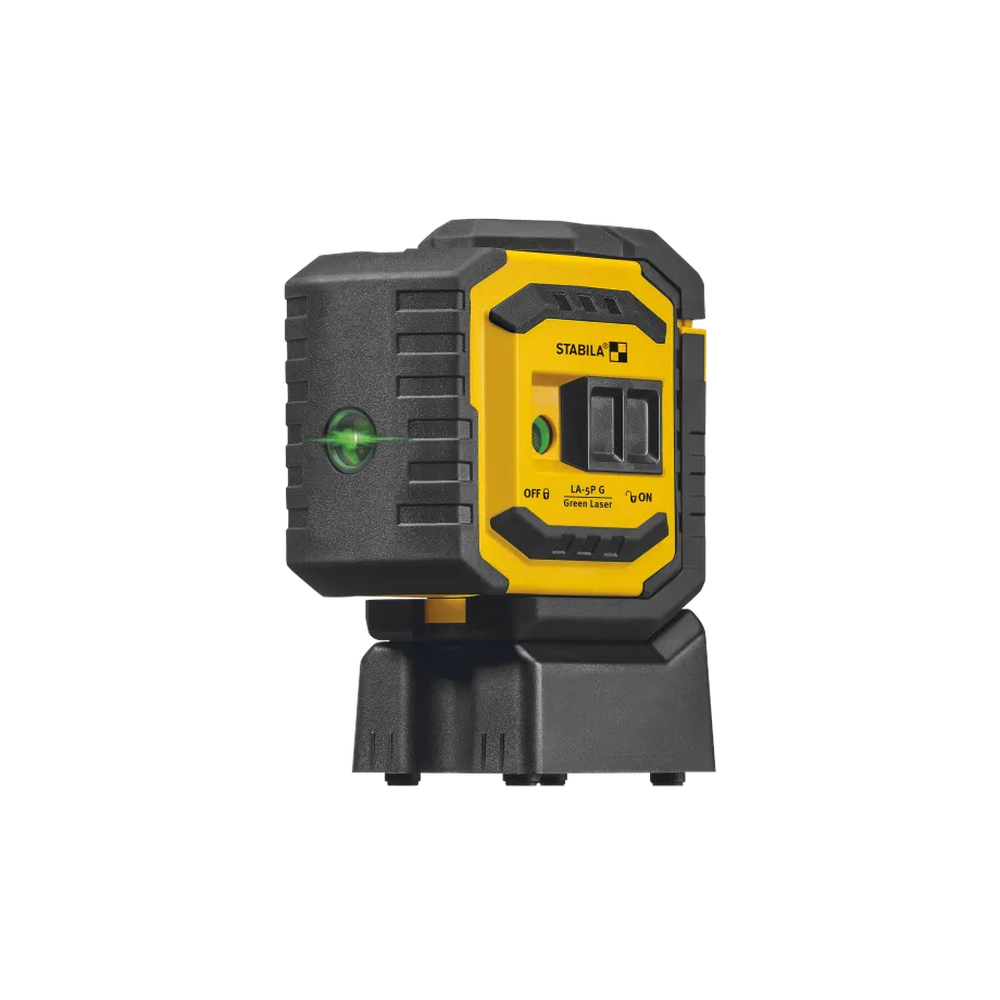

The Stabila LA-5P G (03165) is a professional self-leveling laser that projects five ultra-bright GREENBEAM dots, providing up to four times greater visibility than standard red lasers. This compact and durable tool is designed for rapid plumbing and squaring, allowing layout points to be transferred from floor to ceiling with exceptional speed. It is specifically engineered for framing walls and interior layout, enabling builders to work directly against wood plates and metal tracks even in brightly lit conditions.
  • High-visibility GREENBEAM technology for use up to 60 feet
  • Simultaneous plumbing, leveling, and squaring capabilities

Features

  • Mechanical on/off switch with integrated pendulum lock for secure transport.
  • Internal 360-degree rotation protects lenses and facilitates precise point transfer.
  • Rare earth V-groove magnet provides secure attachment to metal tracks and steel surfaces.
  • Rugged shock-absorbing STABILA Softgrip rubber casing for job site durability.

Includes

  • LA-5P G 5-Point Green Layout Laser
  • Removable Framing Base
  • Magnetic Target Plate
  • Metal Wall Mount Plate
  • Padded Carrying Pouch
  • 3 x AA 1.5V Batteries
Products specifications
Catalog Number 03165
Laser Class 2
Output < 1 mW
Laser Wavelength 510 - 530 nm
Self-Leveling Range ± 4.5 deg
Leveling Accuracy ± 3/16 inch @ 30 ft
Up Beam Accuracy ± 3/32 inch @ 30 ft
Down Beam Accuracy ± 1/8 inch @ 30 ft
Visible Range 60 ft
Operating Life Up to 20 hours
Protection Rating IP 54
Tripod Connection 1/4 inch-20
*
*
*
