  • Stabila LAX 320 G Cross Line Laser with Plumb Dots

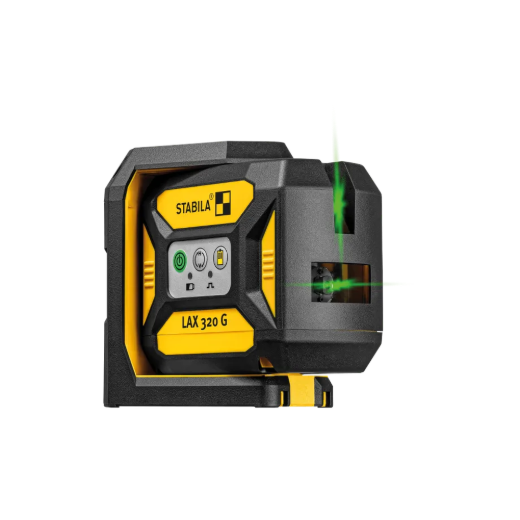

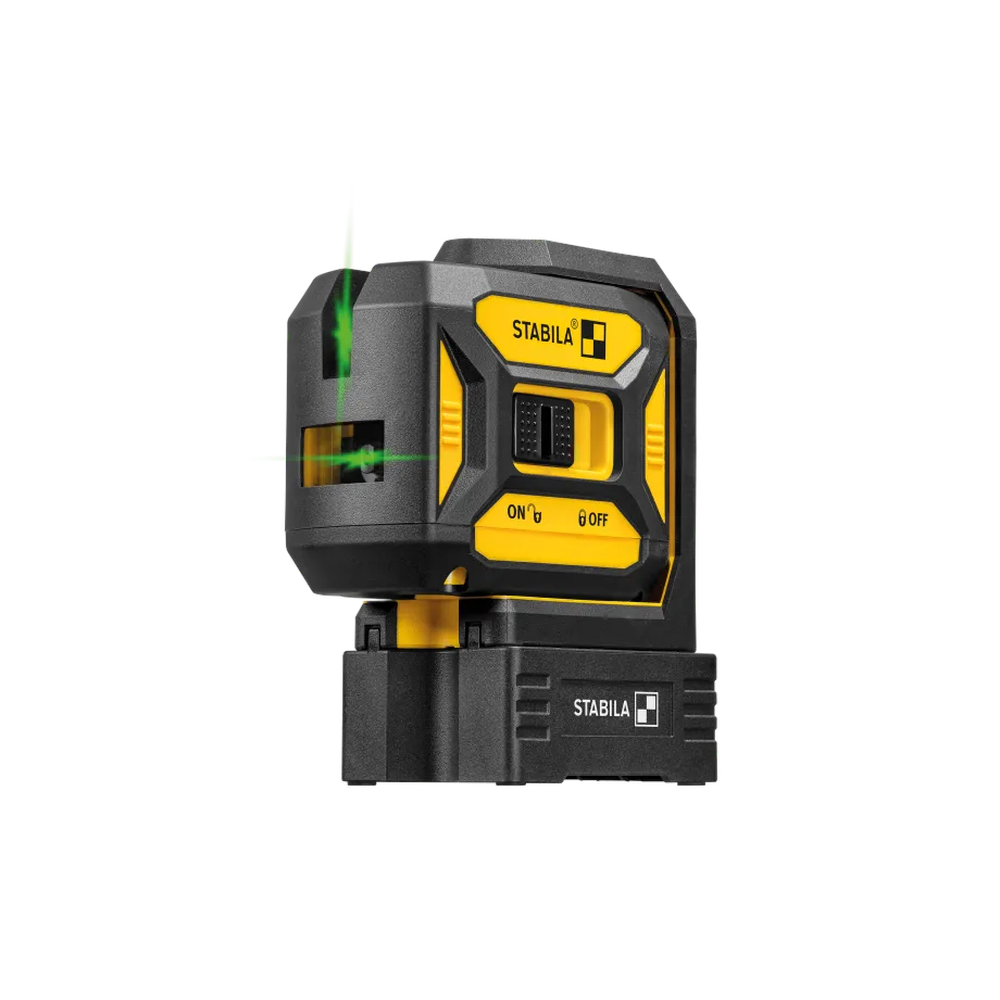

Stabila LAX 320 G Cross Line Laser with Plumb Dots

Mfr.: Stabila
Item #: I090432
Mfr. #: 03190
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $513.30
i h h

Description

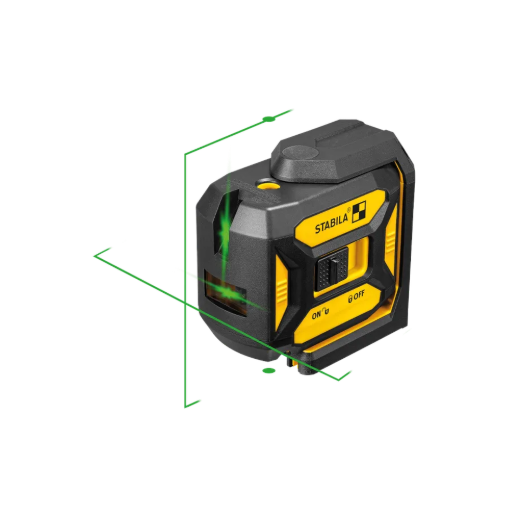

The STABILA LAX 320 G is a professional-grade, compact cross line laser featuring innovative GREENBEAM technology for razor-sharp visibility up to 100 feet. It projects precise horizontal and vertical lines alongside up and down plumb dots, making it an essential tool for high-precision interior layout work. The unique screw-in housing design allows the optics to rotate inward for maximum protection during transport and storage.
  • GREENBEAM Technology for superior visibility
  • Integrated Plumb Dots for vertical transfer
  • Rotatable Screw-in Protective Housing
  • IP 54 Dust and Splash Protection

Features

  • Fast self-levelling pendulum technology for immediate setup on the jobsite.
  • Manual mode allows for laser positioning at any inclination for sloped layouts.
  • Pulse-modulated lines enable use with optional line receivers for extended range.
  • Versatile mounting options including rare-earth magnets, wall bracket, and 1/4-inch thread.

Includes

  • LAX 320 G Cross Line Laser
  • Adjustable Laser Base
  • Magnetic Wall Bracket
  • Green Target Plate
  • Durable Belt Pouch
  • 3 x AA 1.5 V Batteries
Products specifications
Laser Class 2
Laser Color Green
Levelling Accuracy ± 1/8 in @ 30 ft
Self-Levelling Range ± 4 deg
Working Range Up to 100 ft
Operating Life Approx. 20 hours
Protection Rating IP 54
Tripod Connection 1/4 inch
Wavelength 510 - 530 nm
Plumb Accuracy (Up) ± 3/16 in @ 30 ft
*
*
*
