Stabila REC 230 Red/Green Line Receiver

Mfr.: Stabila
Item #: I090451
Mfr. #: 07210
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $199.42
i h h

Description

The Stabila REC 230 Red/Green Line Receiver is a powerful accessory designed to significantly extend the working area of pulse-modulated line lasers. This high-performance receiver accurately determines the position of laser lines even over long distances or in bright sunlight where the beam is no longer visible. With illuminated digital displays on both sides and acoustic guidance, it provides professionals with the flexibility and precision needed for demanding construction projects.
  • Compatible with both red and green pulse-line lasers

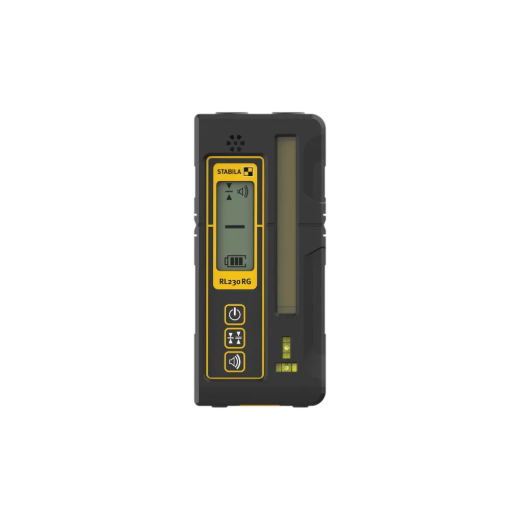

  • Dual-sided illuminated digital displays for front and rear viewing
  • Large 3.5-inch (90 mm) receiving window for quick beam capture

Features

  • IP 66 protection rating makes the unit waterproof and dustproof for jobsite durability.
  • Two sensitivity levels: Fine ( 1/32 inch) for precision and Coarse ( 1/8 inch) for fast results.
  • Acoustic guidance with adjustable volume levels (Loud: 105 dB, Quiet: 85 dB) for eyes-free alignment.
  • Integrated magnet system on the housing edge for easy attachment to metal surfaces.

Includes

  • REC 230 Line Receiver (RL 230 RG)

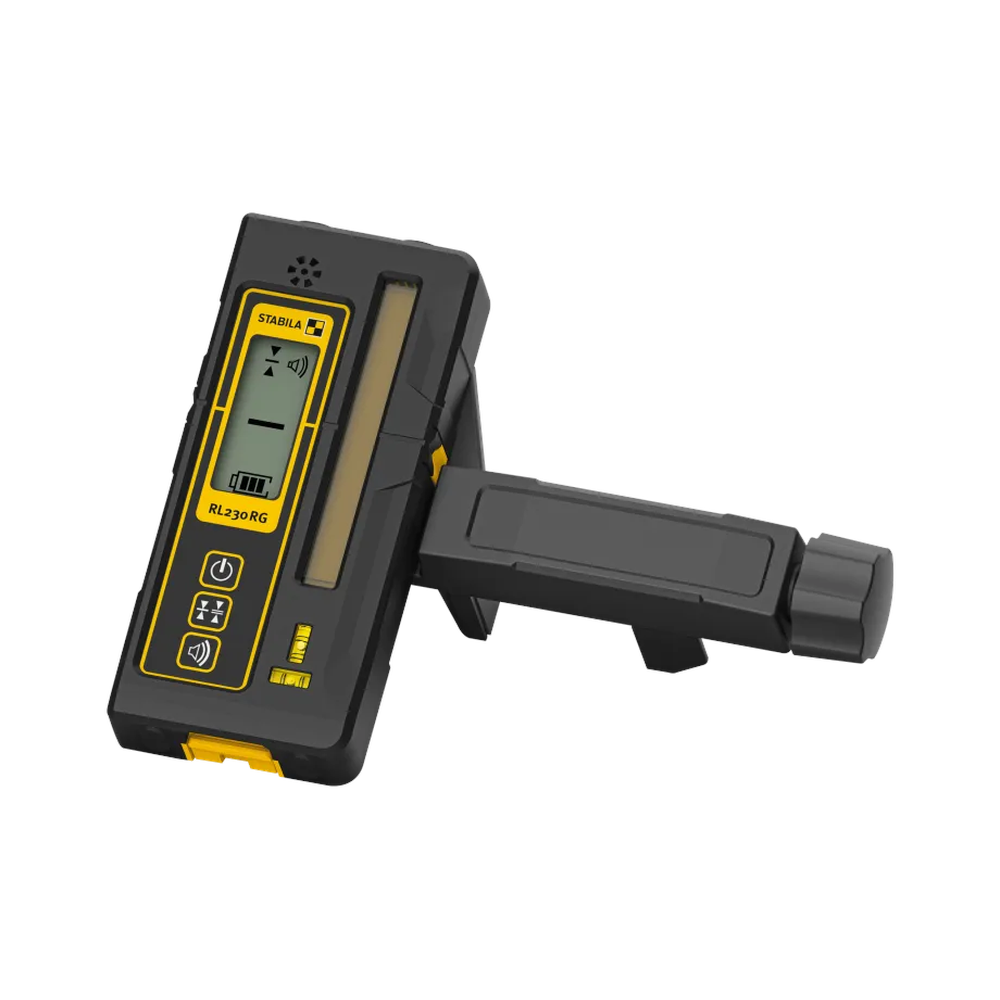

  • Mounting Bracket for leveling rods
  • 2 x AA Batteries
Products specifications

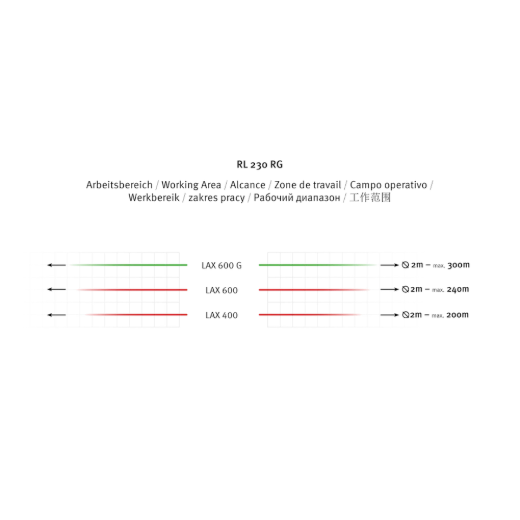

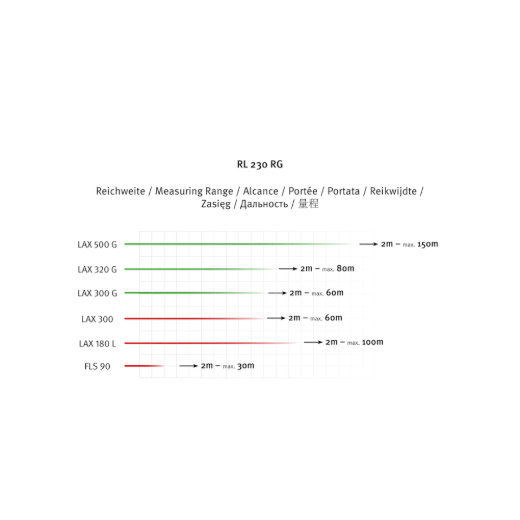

Working Range Up to 330 ft
IP Rating IP 66
Operating Life 45 Hours
Fine Sensitivity ± 1/32 in (1 mm)
Coarse Sensitivity ± 1/8 in (3 mm)
Receiving Window 3.5 in (90 mm)
Audio Levels 85 dB / 105 dB
Compatibility Red and Green Pulse Lasers
Item Number 07210
*
*
*
