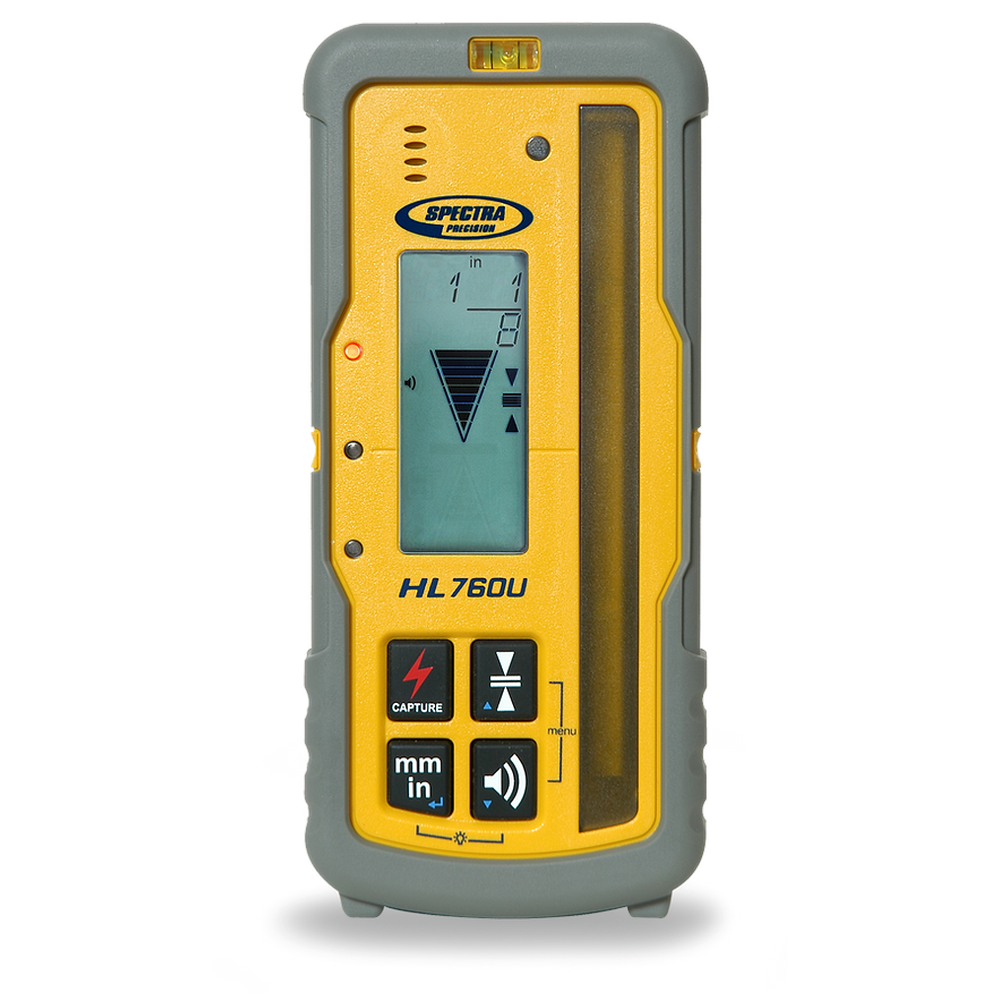

Digital Readout Receiver w/Radio Transceiver, C70 rod clamp and level vial

Mfr.: Spectra Precision
Item #: I053181
Mfr. #: HL760
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $605.34
i h h

Description

The HL760 is a highly versatile digital readout receiver for basic and advanced leveling and aligning applications. Designed for general, concrete, and site preparation contractors, it features a large 12.7 cm (5 inch) reception height to acquire the beam quickly. The unit includes an anti-strobe sensor that stops construction strobe lights from setting off the receiver, making it easier to identify true laser signals.

Features

  • Digital readout of elevation saves considerable time by eliminating the need to go to on-grade
  • Large 12.7 cm (5 inch) reception height acquires the beam quickly and makes it easy to stay in the beam
  • Wireless remote display and monitoring functionality for long-range use up to 80 m (260 ft)
  • Anti-strobe sensor identifies true laser beam signals and prevents interference from construction strobe lights
  • IP67 rated dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete
  • Includes C70 rod clamp with bubble vial
Products specifications
Storage Temperature -40 degC...+70 degC (-40 degF...+158 degF)
Automatic Shut-Off 30 min
Dimensions 168x76x36mm (6.6x3.0x1.4in)
Operating Temperature -20 degC...+60 degC (-4 degF... +140 degF)
Environmental Waterproof, Dust-proof to IP67
Reception Angle +/- 45 deg minimum
Battery Life 60+ hours; 16 continuous backlight
Accuracy (Medium) 5.0 mm (0.20 in)
Accuracy (Coarse) 10.0 mm (0.50 in)
Numeric Readout Height 102.0 mm (4 inch)
Accuracy (Ultra Fine) 0.5 mm (0.02 in)
Working Radius 1 m - 460 m (3 ft - 1500 ft)
Laser Detection Height 127.0 mm (5 inch)
Accuracy (Super Fine) 1.0 mm (0.05 in)
Beeper Volumes Loud = 110 dBA, Medium = 95 dBA, Low = 65 dBA
Power Supply 2 x 1.5 Volt AA batteries
Accuracy (Fine) 2.0 mm (0.10 in)
Detectable Spectrum 610 nm ... 780 nm
*
*
*
