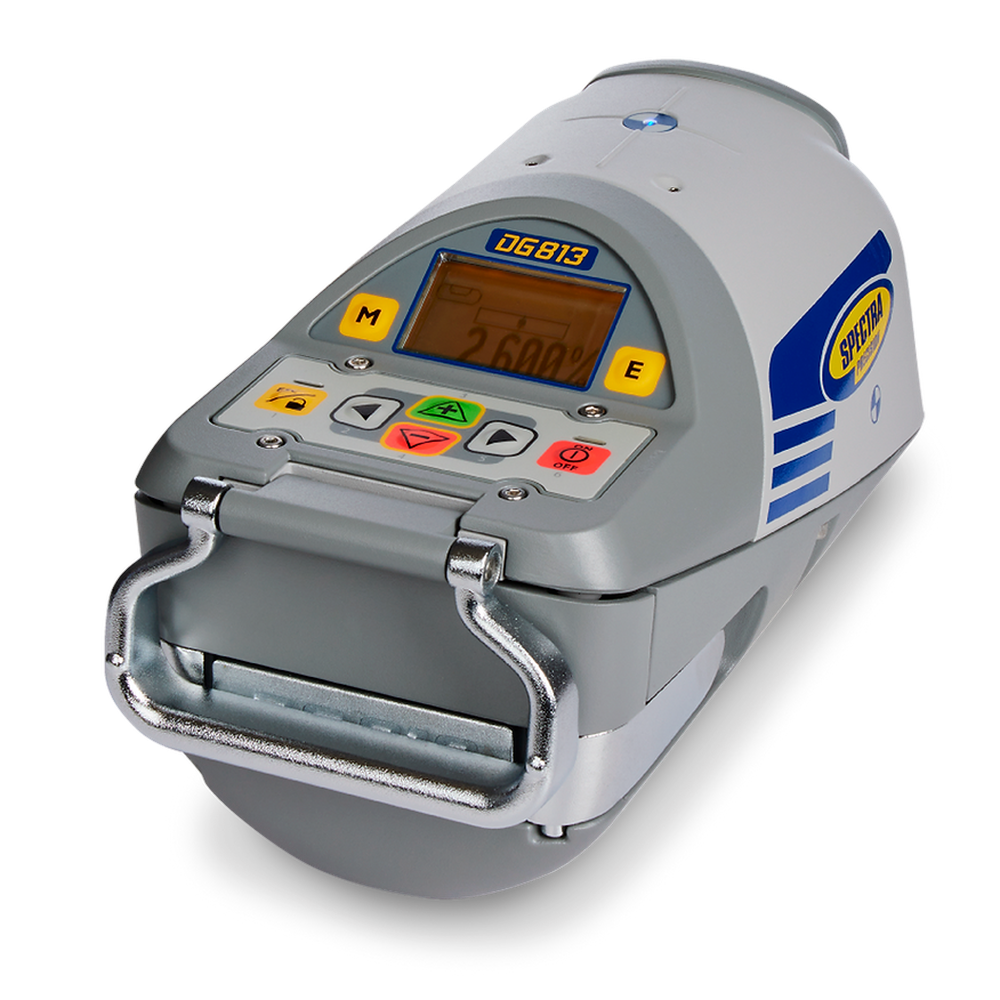

Laser, 1248 trivet plate 8 inch (200mm), RC803 IR/Radio Remote Control, SF803 Spot Finder w/pole ada

Mfr.: Spectra Precision
Item #: I056163
Mfr. #: DG813
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $7,664.10
i h h

Description

The Spectra DG813 pipe laying laser is designed for professionals who require speed, reliability, and long-lasting performance. This completely waterproof tool features a large self-leveling grade range and advanced alignment functions like Spot Align, Spot Match, and SpotLok, making it one of the smartest pipe lasers in the industry. It simplifies the setup process and ensures high accuracy even in challenging high-vibration or wet job site conditions.

Features

  • Grade range from -12% to +40% with ultra-fast beam movement
  • IP68 rated protection ensures the unit is completely dust and waterproof

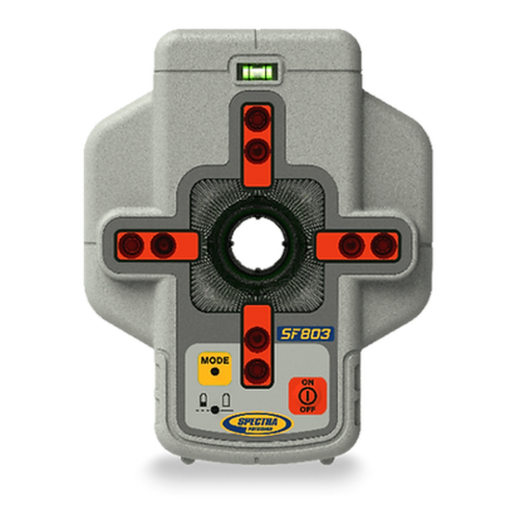

  • Automatic functions for beam alignment, beam detection, and grade calculation via the SF803 Spot Finder
  • Unique Line Alert and Line Set/Check capabilities to notify of disturbances and simplify above-ground setups
  • Cross axis compensation provides quicker, more accurate setups by leveling the laser within the pipe automatically
Products specifications
Weight 3.98 kg (6.61 lbs)
Tripod Mount 5/8 x 11 horizontal
Dust Waterproof Yes, IP68
Storage Temperature -20 degC to 70 degC (-4 degF to 158 degF)
Operating Temperature -20 degC to 50 degC (-4 degF to 122 degF)
Warranty 5 Years
Laser Type Red diode laser 600 - 680 nm, Class 3A/3R, <5mW o
Leveling Accuracy +/- 1.5 mm /30 m (1/16 in @ 100 ft)
Power Source Life 10000mAh NiMH battery pack; 40 hours
Operating Range Up to 150 m (500 feet)

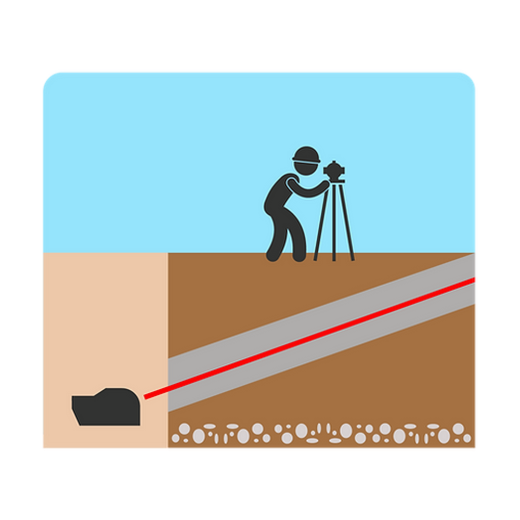

Grade Range -12% to +40%
*
*
*
