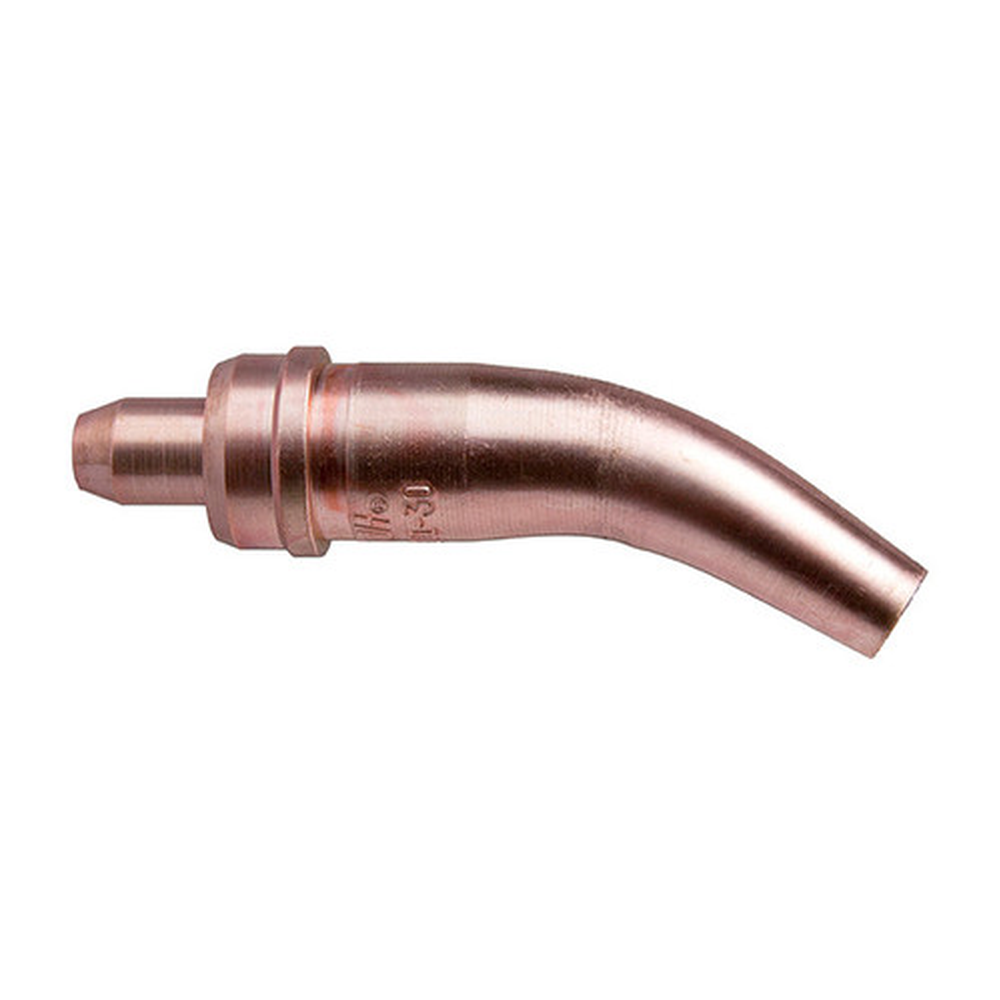

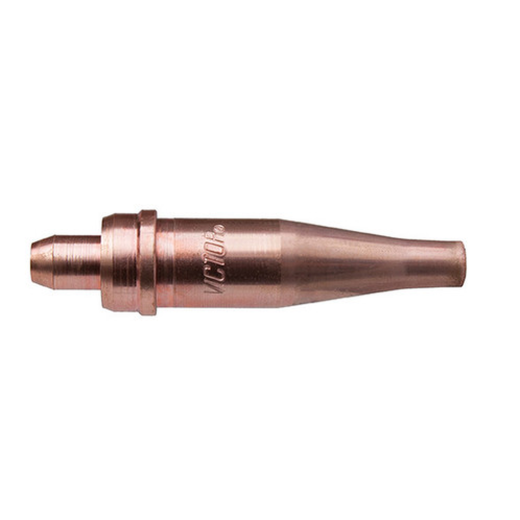

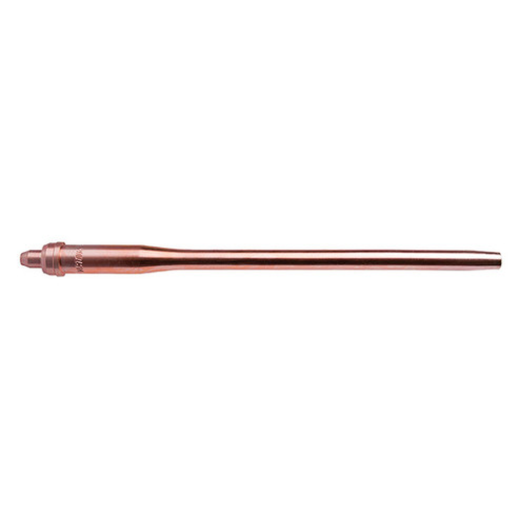

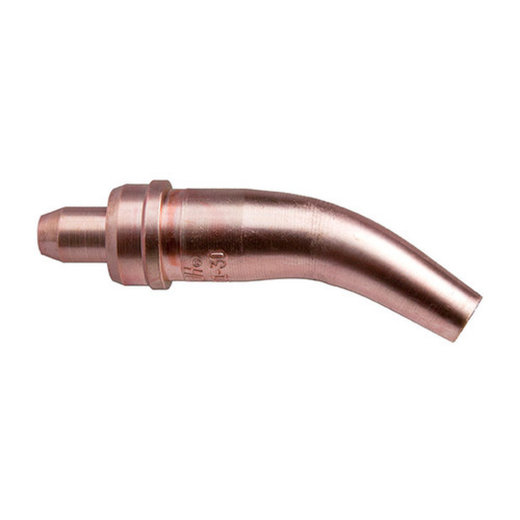

Victor Type 101 Acetylene Cutting Tip Size 1

Mfr.: Victor
Item #: I097549
Mfr. #: 0330-0005
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $64.82
i h h

Description

Acetylene cutting tip for manual or mechanized applications, part number 0330-0005, size 1, suitable for cutting metal thickness up to 3/4 inch.
  • Part Number: 0330-0005
  • Tip Size: 1
  • Metal Thickness: 3/4 in.
  • Cutting Speed: 17-21 in./min
  • Average Kerf Width: .07 in.

Features

  • Total Acetylene Consumption: 8-13 cfh
  • Gas Pressure - Acetylene: 3-5 psig
  • Total Preheat Oxygen Consumption: 9-14 cfh
  • Gas Pressure - Cutting Oxygen: 30-35 psig
  • Gas Pressure - Preheat Oxygen: 4-7 psig

Specifications


Part Number0330-0005Tip Size1
Metal Thickness3/4 inchCutting Speed17-21 inch/min
Average Kerf Width.07 inchTotal Acetylene Consumption8-13 cfh
Gas Pressure - Acetylene3-5 psigTotal Preheat Oxygen Consumption9-14 cfh
Gas Pressure - Cutting Oxygen30-35 psigGas Pressure - Preheat Oxygen4-7 psig
Total Oxygen Consumption80-85 cfh
*
*
*
