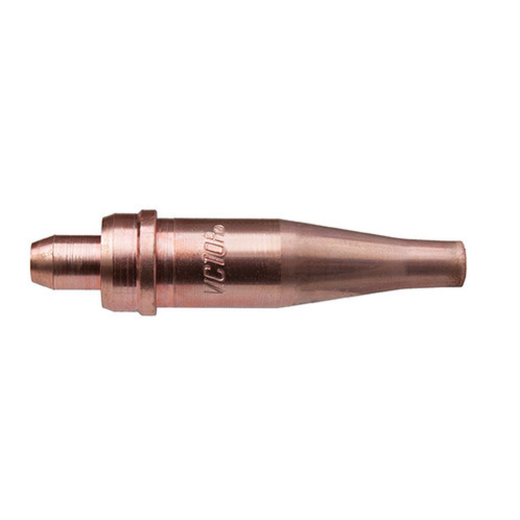

Victor Type 101 Acetylene Cutting Tip Size 3

Mfr.: Victor
Item #: I097546
Mfr. #: 0330-0002
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $64.82
i h h

Description

Acetylene cutting tip for manual or mechanized applications, size 3, suitable for metal thickness up to 2.5 inches.
  • Tip Size: 3
  • Metal Thickness: 2 in. to 2.5 in.
  • Cutting Speed: 10-15 in./min
  • Average Kerf Width: 0.11 in.
  • Acetylene Consumption: 14-26 cfh

Features

  • Designed for acetylene cutting
  • Copper construction
  • Compatible with Type 101 series
  • Multiple gas pressure ranges provided

Specifications


Part Number0330-0002Tip Size3
Metal Thickness2 inch to 2.5 inchCutting Speed10-15 inch/min
Average Kerf Width0.11 inchTotal Acetylene Consumption14-26 cfh
Gas Pressure - Acetylene4-10 psigTotal Preheat Oxygen Consumption15-29 cfh
Gas Pressure - Cutting Oxygen40-50 psigGas Pressure - Preheat Oxygen5-16 psig
Total Oxygen Consumption210-240 cfh
*
*
*
