  • Traffix Water Wall / K-Rail Barrier - 72" x 32" x 18" - Orange

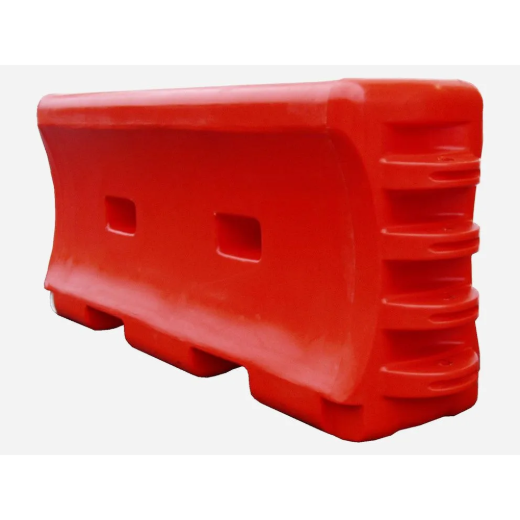

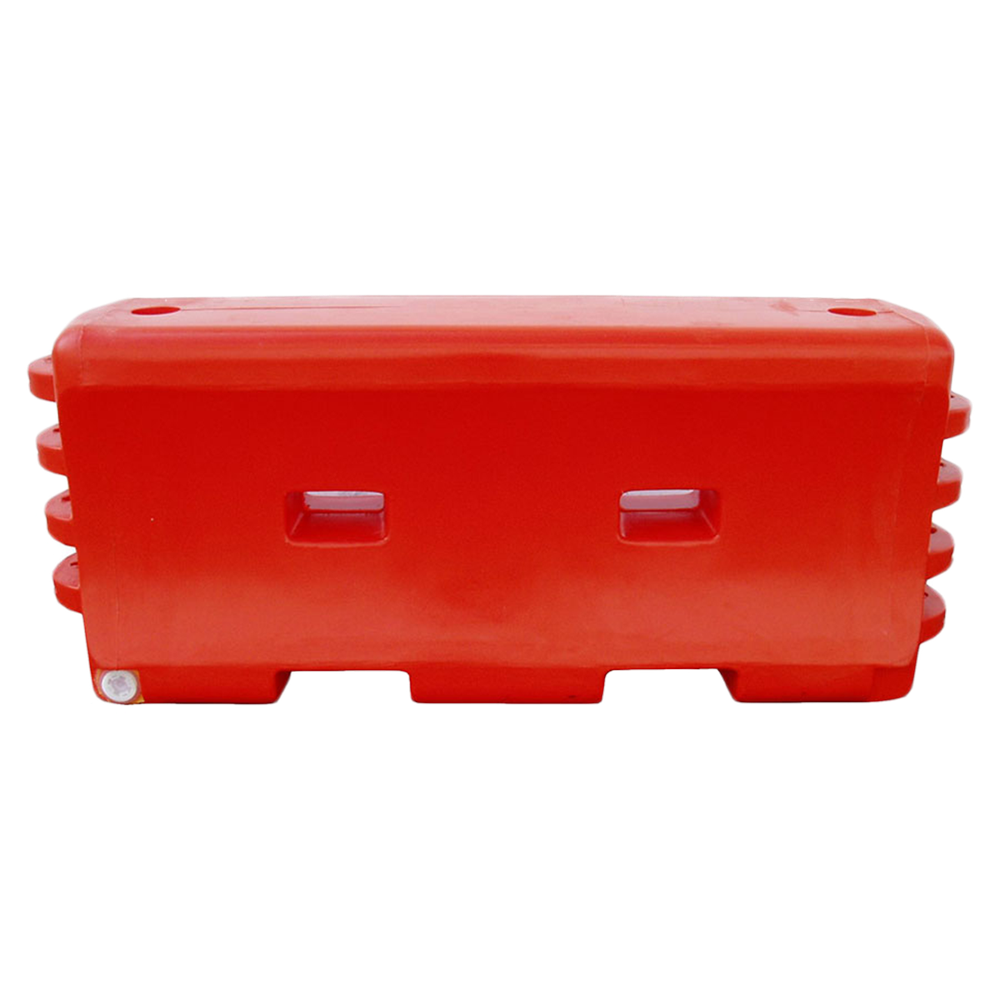

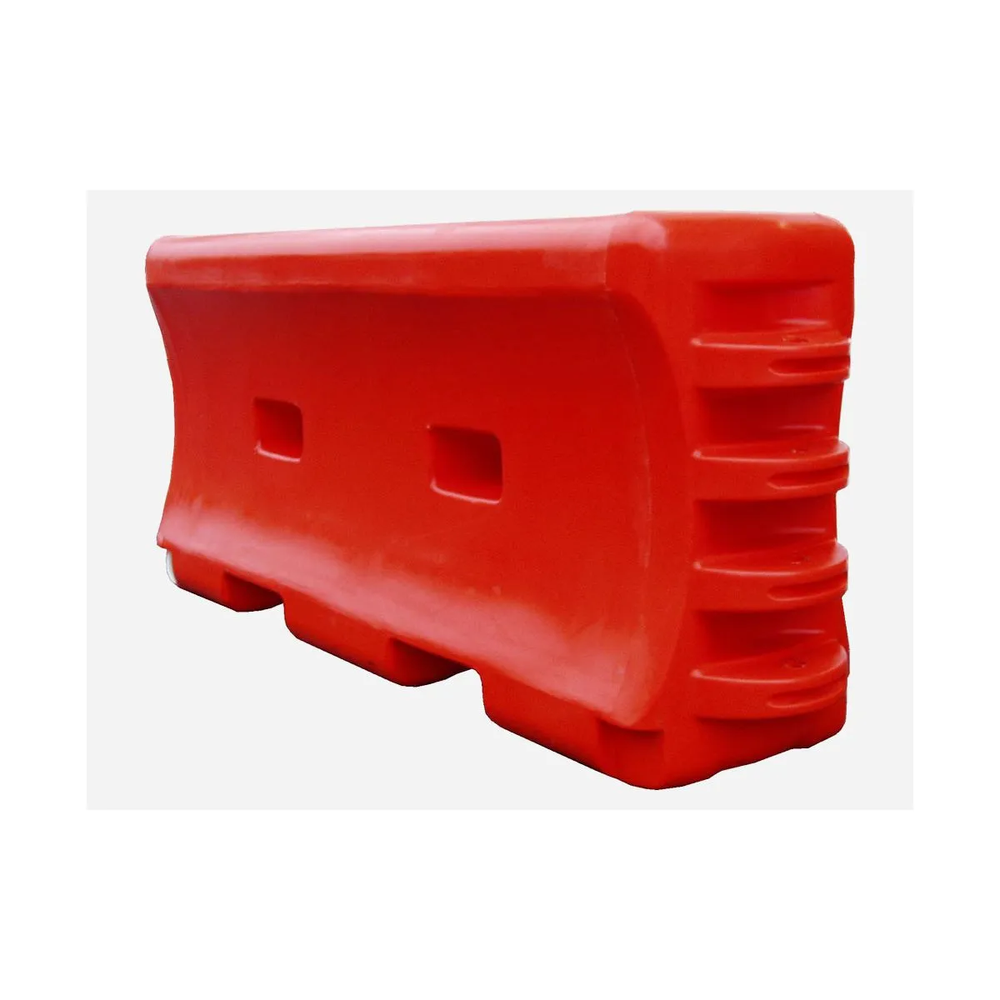

Traffix Water Wall / K-Rail Barrier - 72" x 32" x 18" - Orange

Mfr.: Traffix Devices
Item #: I009208
Mfr. #: 45032-O
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $779.15
i h h

Description

The Water-Wall Barrier is an economic and easy to install crash barrier system designed for temporary side protection. It can be used in various situations including construction site protection and work-zone safety on roads and highways. The system connects directly to SLED end treatment without needing additional shielding.
  • MASH Tested, Passed, and Eligible
  • Durable polyethylene plastic minimizes cracking and breaking

Features

  • Durable polyethylene plastic minimizes cracking and breaking
  • Molded through holes eliminate bowing when filled with water
  • Double wall knuckle design minimizes breakage at hinge points
  • Hinge design allows for a 30 pivot between sections
  • Large 8 inch fill hole speeds filling process, includes twist-lock plastic cap
  • New tamper resistant, corner offset drain plug with coarse buttress thread - screws in or out in only 21/2 turns
  • Includes one steel connection pin that allows sections to be locked together
  • Forklift/Pallet Jack slots at bottom allow for easy movement and transport
  • Standard colors are orange/red or white - additional colors available upon request

Includes

  • T-pin
  • Cotter Pin
  • Drain Plug
  • Fill Cap
Products specifications
Width 18 inch (45.72 cm), 18 inch (45.72 cm)
Height 32 inch (81.28 cm)
Weight Filled 1,110 lbs (503.49 kg)
Weight Empty 80 lbs (36.29 kg)
Part Number 45032-O & 45032-W
SKU 45032-O
Length 6 (182.88 cm)
Type Longitudinal Channelizing Device
Material Low Density Polyethylene
Fill Hole Size 8 inch
Hinge Pivot 30 deg between sections
Drain Plug Type Tamper resistant corner offset
Connection Pin Steel
Section Length 72 inch long
Color Orange/Red or White
Section Width 18 inch wide
Section Height 32 inch tall
*
*
*
