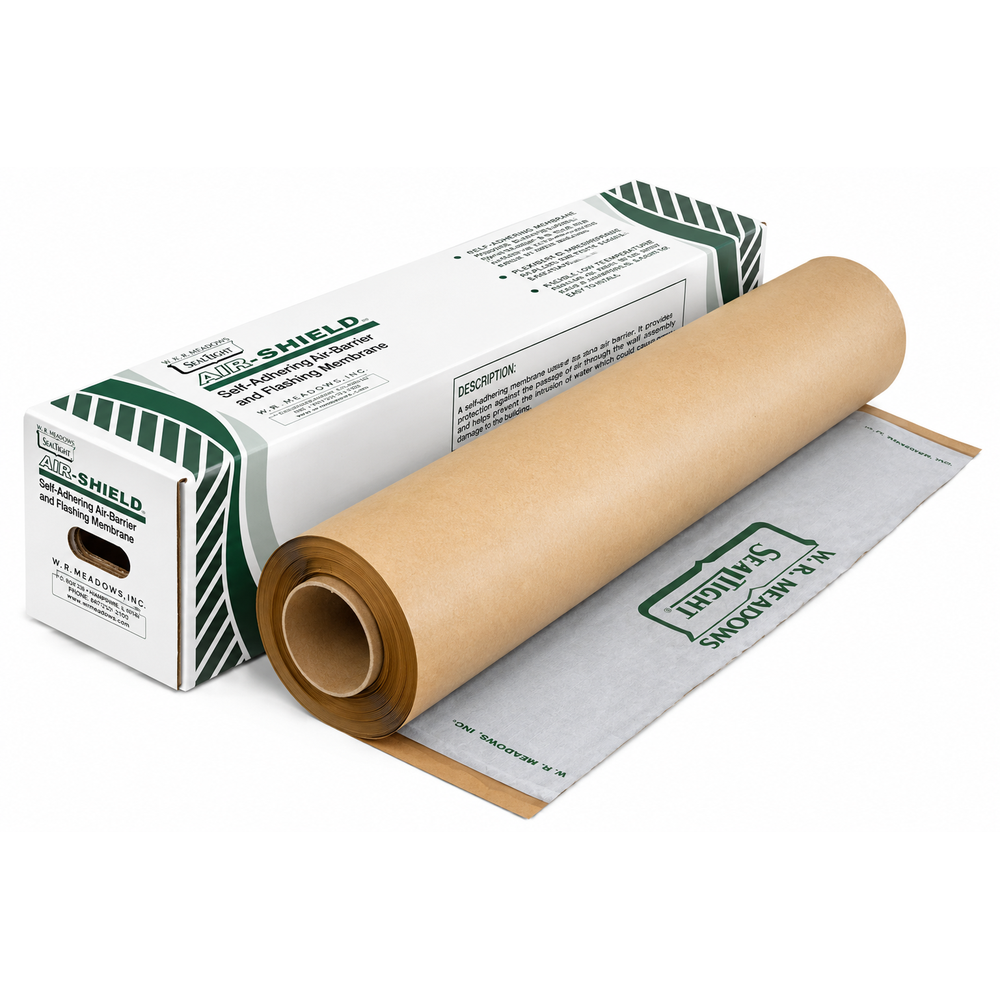

WR Meadows AIR-SHIELD AF Moisture Barrier - 4" x 75' - Roll (Sold Per Case of 9)

Mfr.: WR Meadows
Item #: I100698
Mfr. #: 5116104
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $76.87
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Self-adhering air, vapor, and moisture barrier made of 40-mil rubberized asphalt membrane laminated to cross-laminated film. Forms a tough, flexible seal that won't shrink, sag, or dry out.
  • 40 mil thickness
  • Self-adhering
  • Low permeability
  • Flexible at low temperatures

Features

  • Low permeability prevents air and moisture transmission
  • Provides complete above-grade air, vapor, and water barrier
  • Controlled thickness membrane ideal for air barrier applications
  • Strong adhesion and puncture resistance
  • Easy installation without open flame

Includes

  • 1 roll of AIR-SHIELD AF Moisture Barrier (4 inch x 75')

Specifications


ColorWhiteThickness40 mils (1 mm)
Pliability @ -25FNo effectTensile Strength Film (ASTM D412 modified MD)4000 psi (27.6 MPa)
Tensile Strength Film (ASTM D882 MD)23.5 lb/in (4.1 N/mm)Elongation Film (ASTM D412 modified MD)400%
Elongation Film (ASTM D882 MD)400% Min.Puncture Resistance (ASTM E154)40 lbf (178 N) Min.
Water Vapor Permeance (free film ASTM E96 Procedu0.035 PermsWater Absorption (% by weight ASTM D1970)0.25 Max
Water Absorption (% by weight ASTM D570-81)0.1 MaxWater Penetration (ASTM E331)Pass
Application Temperature40 degF (4 degC) Min.Low Temperature Flexibility @ -22F (-30C)PASS
Service Temperature-40 degF to 158 degFLap Peel Strength @ 39F (4C) (ASTM D903 180)10 lbf/in width (1.75 N/mm)
Adhesion to Exterior Gypsum Sheathing CMU Concret>16 PSI (0.11 MPa)
*
*
*
