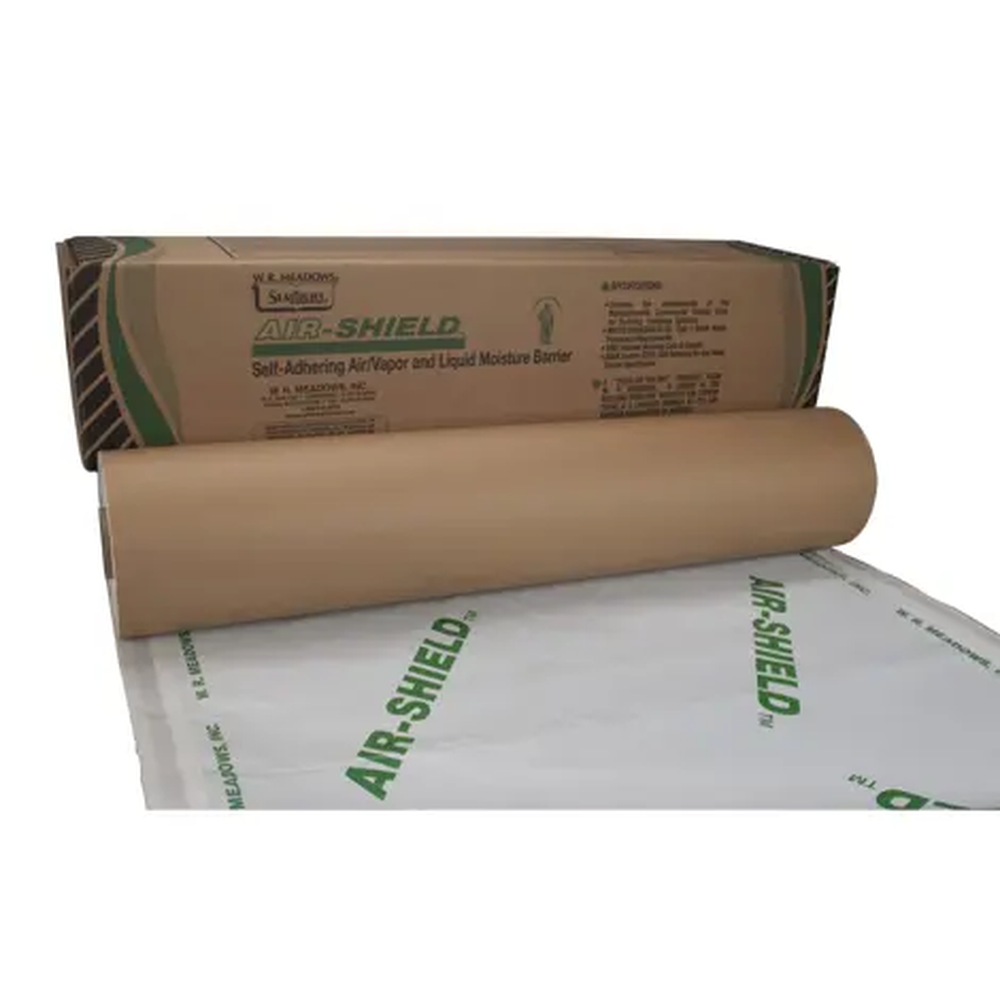

WR Meadows AIR-SHIELD Moisture Barrier - 18" x 75'

Mfr.: WR Meadows
Item #: I100710
Mfr. #: 5115218
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $232.98
i h h

Description

Self-adhering air, vapor, and moisture barrier made of 40-mil rubberized asphalt membrane laminated to cross-laminated film. Forms a tough, flexible seal that won't shrink, sag, or dry out.
  • 40 mil thickness
  • Self-adhering
  • Low permeability
  • Flexible at low temperatures

Features

  • Provides a complete above-grade air, vapor, and water barrier
  • Strong adhesion to primed surfaces
  • Puncture resistant
  • Easy installation without open flame
  • Improves energy efficiency

Includes

  • 1 roll of AIR-SHIELD membrane

Specifications


ColorWhiteThickness40 mils (1 mm)
Pliability @ -25F (-32C)No effectTensile Strength (Film ASTM D412 modified MD)4000 psi (27.6 MPa)
Tensile Strength (ASTM D882 MD)23.5 lb/in (4.1 N/mm)Elongation (Film ASTM D412 modified MD)400%
Elongation (ASTM D882 MD)400% MinPuncture Resistance (ASTM E154)40 lbf (178 N) Min
Water Vapor Permeance (free film ASTM E96 Procedu0.035 PermsWater Absorption (% by weight ASTM D1970)0.25 Max
Water Absorption (% by weight ASTM D570-81)0.1 MaxWater Penetration (ASTM E331)Pass
Application Temperature40 degF (4 degC) MinLow Temperature Flexibility @ -22F (-30C) (CGSBPASS
Service Temperature-40 degF to 158 degFLap Peel Strength @ 39F (4C) (ASTM D903 180)10 lbf/in width (1.75 N/mm)
Adhesion to Exterior Gypsum Sheathing CMU Concre>16 PSI (0.11 MPa)
*
*
*
