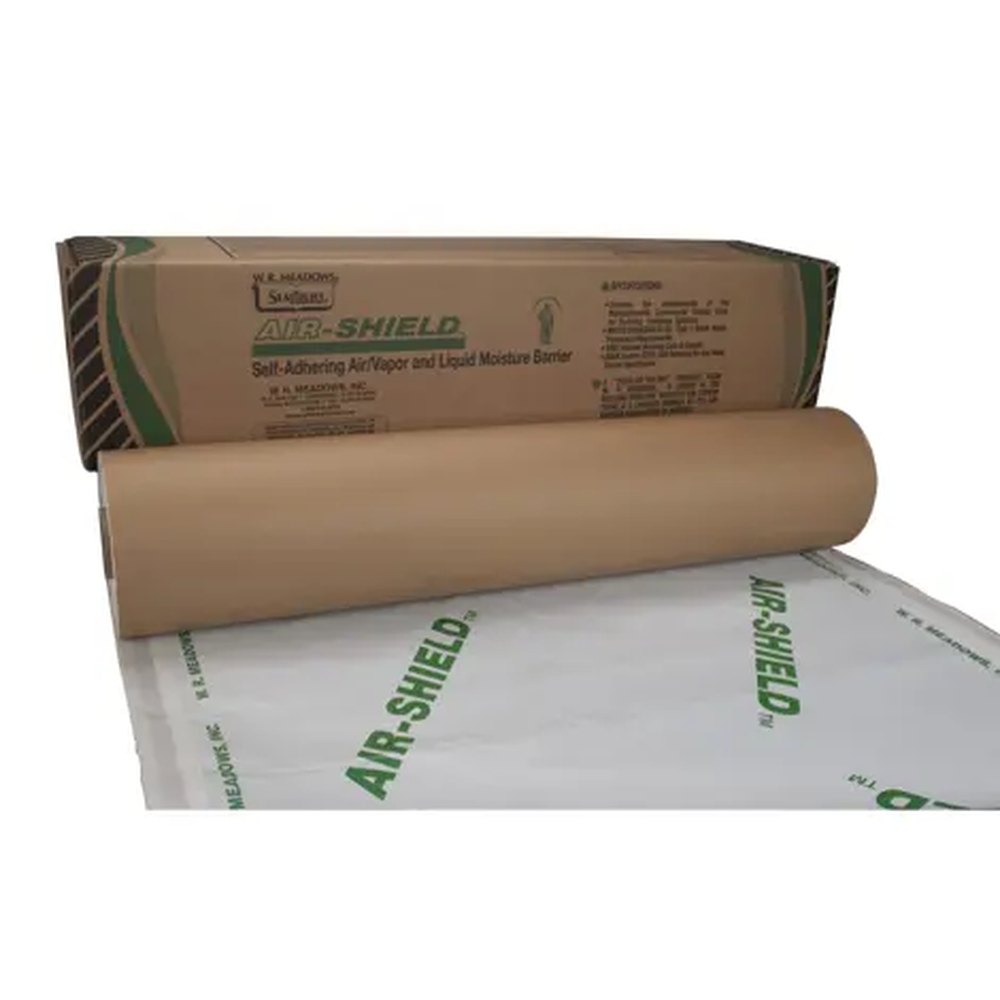

WR Meadows AIR-SHIELD Moisture Barrier - 38-1/2" x 75'

Mfr.: WR Meadows
Item #: I100712
Mfr. #: 5115075
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $485.64
i h h

Description

Self-adhering air, vapor, and moisture barrier made from 40-mil rubberized asphalt membrane laminated to cross-laminated film. Forms a tough, flexible seal that won't shrink, sag, or dry out.
  • 40 mils thick
  • Roll size: 38.5 inch x 75'
  • Low permeability (0.035 Perms)
  • Application temperature: 40F min
  • Service temperature: -40F to 158F

Features

  • Self-adhering, no open flame needed
  • Excellent puncture resistance
  • Strong adhesion to primed surfaces
  • Flexible at low temperatures
  • Helps improve energy efficiency

Specifications


ColorWhiteThickness40 mils (1 mm)
Pliability @ -25FNo effectTensile Strength (Film ASTM D412)4000 psi (27.6 MPa)
Tensile Strength (ASTM D882 MD)23.5 lb/in (4.1 N/mm)Elongation (Film ASTM D412 MD)400%
Elongation (ASTM D882 MD)400% MinPuncture Resistance (ASTM E154)40 lbf (178 N) Min
Water Vapor Permeance (ASTM E96)0.035 PermsWater Absorption (ASTM D1970)0.25% Max
Water Absorption (ASTM D570-81)0.1% MaxWater Penetration (ASTM E331)Pass
Application Temperature40 degF (4 degC) MinLow Temperature Flexibility @ -22FPASS
Service Temperature-40 degF to 158 degFLap Peel Strength @ 39F (ASTM D903)10 lbf/in width (1.75 N/mm)
Adhesion to Substrates (ASTM D4541)>16 PSI (0.11 MPa)
*
*
*
