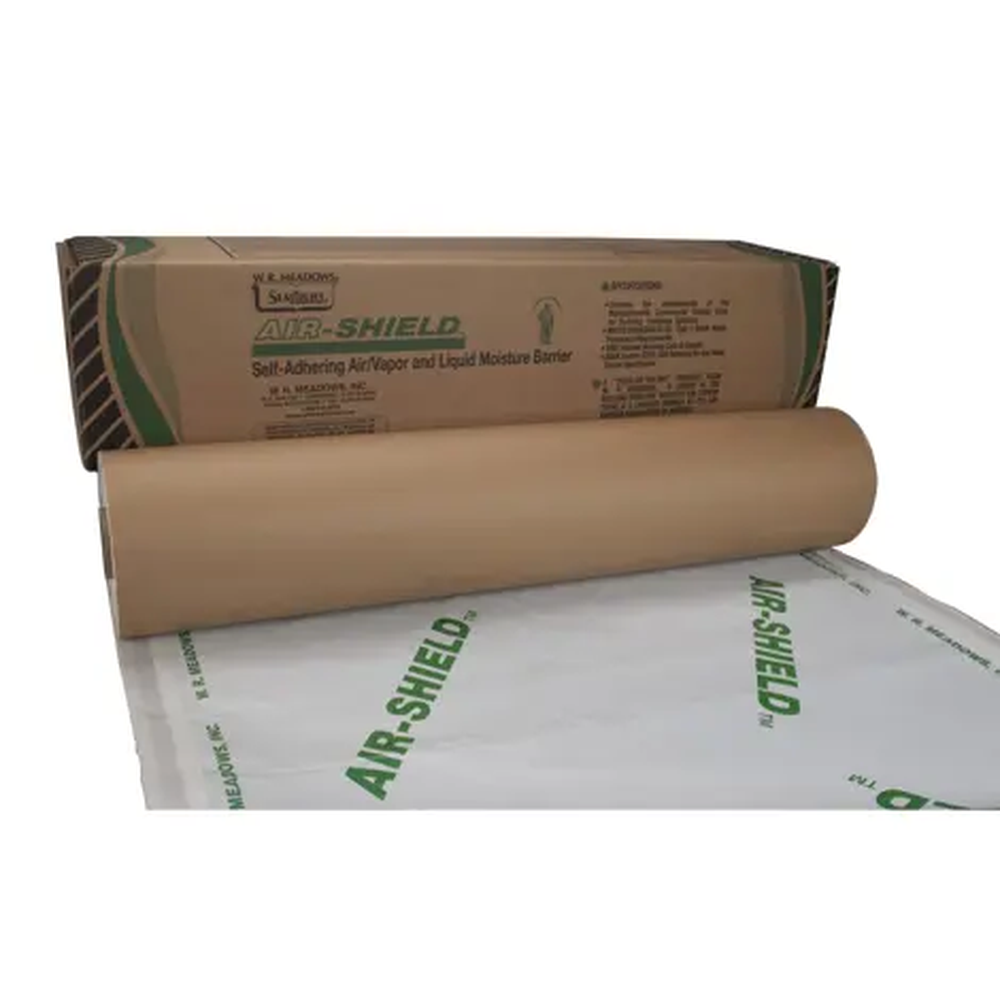

WR Meadows AIR-SHIELD Moisture Barrier - 4" x 75'

Mfr.: WR Meadows
Item #: I100713
Mfr. #: 5115204
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $67.83
i h h

Description

Self-adhering air, vapor, and moisture barrier made from 40-mil rubberized asphalt membrane laminated to cross-laminated film. Forms a tough, flexible seal that won't shrink, sag, or dry out.
  • 40 mil thickness
  • Self-adhering
  • Low permeability
  • Flexible at low temperatures

Features

  • Prevents air and moisture transmission
  • Adheres to primed surfaces like concrete, plywood, gypsum, and metal
  • Puncture resistant
  • Easy installation without open flame
  • Improves energy efficiency

Specifications


ColorWhiteThickness40 mils (1 mm)
Pliability @ -25FNo effectTensile Strength Film ASTM D412 modified (MD)4000 psi (27.6 MPa)
Tensile Strength ASTM D882 (MD)23.5 lb/in. (4.1 N/mm)Elongation Film ASTM D412 modified (MD %)400 (Typical)
Elongation ASTM D882 (MD %)400 Min.Puncture Resistance ASTM E15440 lbf (178 N) Min.
Water Vapor Permeance ASTM E96 Procedure B0.035 PermsWater Absorption ASTM D19700.25 Max
Water Absorption ASTM D570-810.1 Max.Water Penetration ASTM E331Pass
Application Temperature40 degF (4 degC) Min.Low Temperature Flexibility @ -22FPASS
Service Temperature-40 degF to 158 degFLap Peel Strength @ 39F ASTM D903 18010 lbf/in width (1.75 N/mm)
Adhesion to Exterior Gypsum Sheathing CMU Concre>16 PSI (0.11 MPa)
*
*
*
