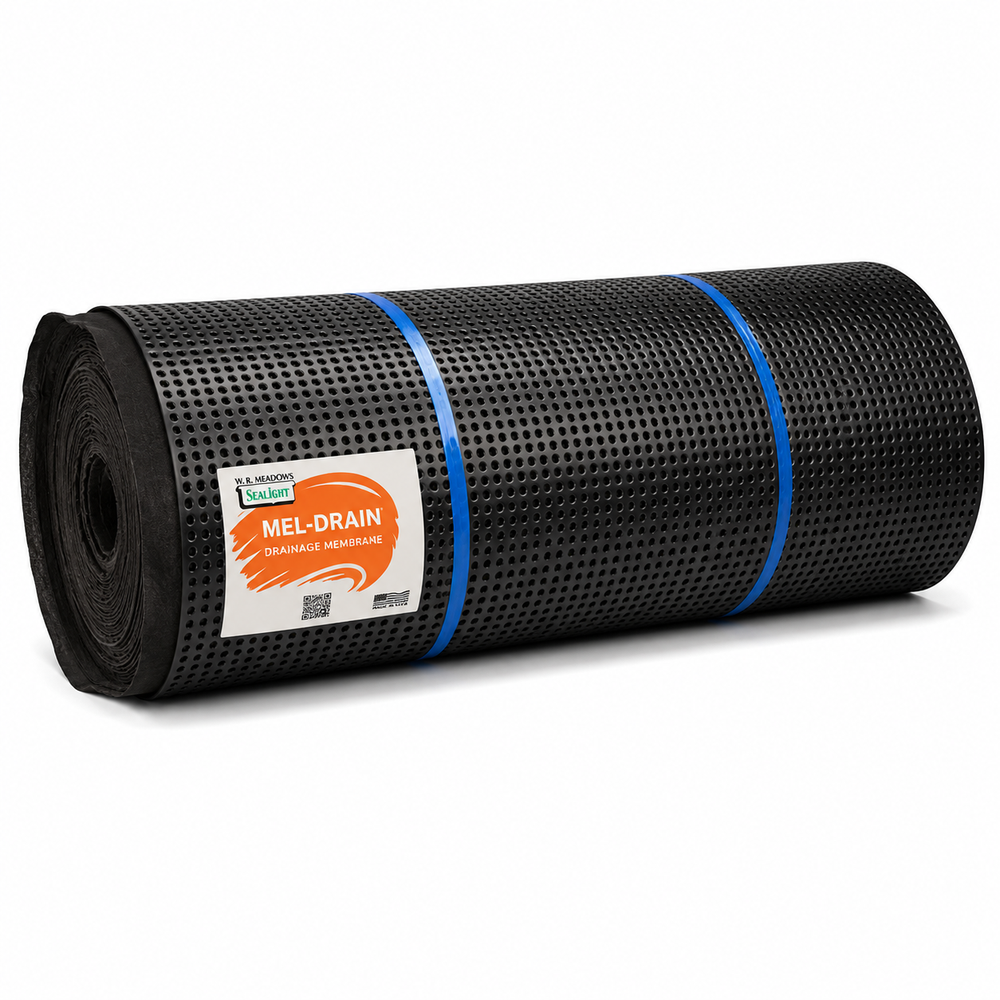

WR Meadows MEL-DRAIN TOTAL DRAIN SYSTEM - 2' x 50'

Mfr.: WR Meadows
Item #: I100874
Mfr. #: 5754150
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $488.43
i h h

Description

Prefabricated drainage system combining a standard sheet drain with a built-in high-flow section for below-grade water collection and horizontal discharge. Compatible with all MEL-DRAIN products, it eliminates the need for separate perforated pipe or special backfill.
  • Two-part design with non-woven filter fabric
  • High-profile flow section for horizontal water flow
  • Secure manufactured transition between sections
  • Eliminates select backfill required for perforated pipe

Features

  • Flow capacity: Sheet drain 21 gpm/ft @ HG=0.1, High profile 100 gpm @ HG=1.0 (ASTM D 4716)
  • Compressive strength: 9,000 lb/sf (ASTM D 1621)
  • Roll dimensions: 2 ft wide x 50 ft long
  • Roll weight: 30 lb
  • Core material: HIPS (High Impact Polystyrene)

Includes

  • 2' x 50' roll of TOTAL-DRAIN sheet drain
  • Corner guards
  • PERMINATOR TAPE

Specifications


Flow Capacity (Sheet Drain)21 gpm/ft @ HG=0.1Flow Capacity (High Profile)100 gpm @ HG=1.0
Compressive Strength9,000 lb/sfRoll Length50 ft
Roll Width2 ftRoll Weight30 lb
Core Thickness (Top)7/16 inCore Thickness (Bottom)1 in
Core Height24 inFabric TypeNon-woven polypropylene
*
*
*
