WR Meadows Sponge Rubber Expansion Joint - 1/2" x 36" x 10'

Mfr.: WR Meadows
Item #: I052649
Mfr. #: 2103360100
*
Pickup at San Diego | Change Delivering to 90001 | Change

Digital Downloads
Price: $508.06
This product has a minimum quantity of 10
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

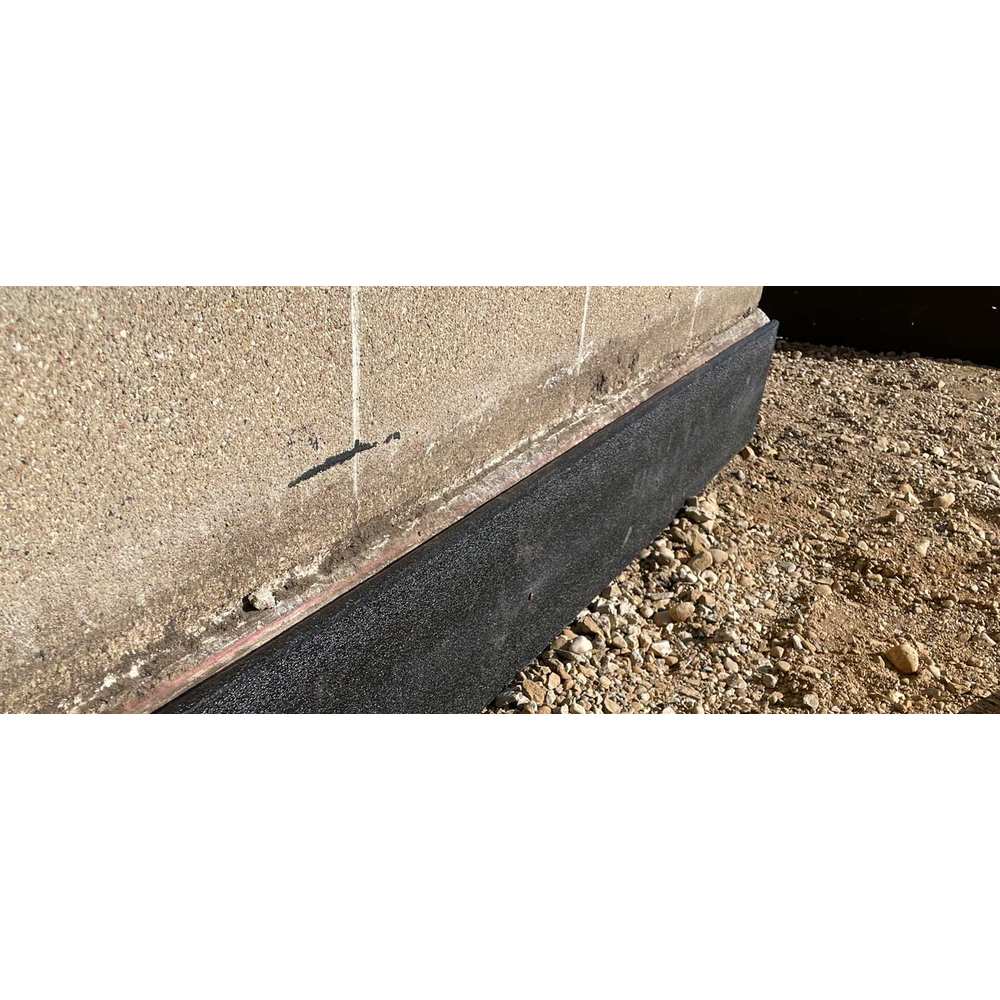

Compressible, resilient joint filler for concrete expansion and contraction. Made from blown sponge rubber, it compresses easily and recovers most of its original thickness after movement.
  • High resiliency with excellent recovery after compression
  • Easy to handle and install
  • Offers isolation capabilities

Features

  • High resiliency with excellent recovery after compression
  • Easy to handle and install
  • Offers isolation capabilities

Specifications


Thickness1/2 inch (12.7 mm)Width36 inch (914.4 mm)
Length10 (3.05 m)ColorGray
Density30 lb./ft3 (480 kg/m3)Compression Force Deflection (50% Compression)50 psi (0.3 MPa)
Recovery (Compressed 50% at RT for 10 min)90%Extrusion (Compressed 50% with 3 edges restrained0.250 inch (6.4 mm)
Temperature Range-20 degF to 160 degF (-84 degC to 71 degC)StandardsAASHTO M 153 Type 1, ASTM D1752 Type 1, Corps of E
Products specifications
Certifications ASTM D1752 Type I, AASHTO M153 Type I, USACE CRD-C 509
Chemistry Blown Sponge Rubber
Color Gray
Container Type Strip
Country of Origin USA (subject to change)
Dimensions (Thickness x Width x Length) 1/2 in x 36 in x 10 ft
Material Rubber
*
*
*
