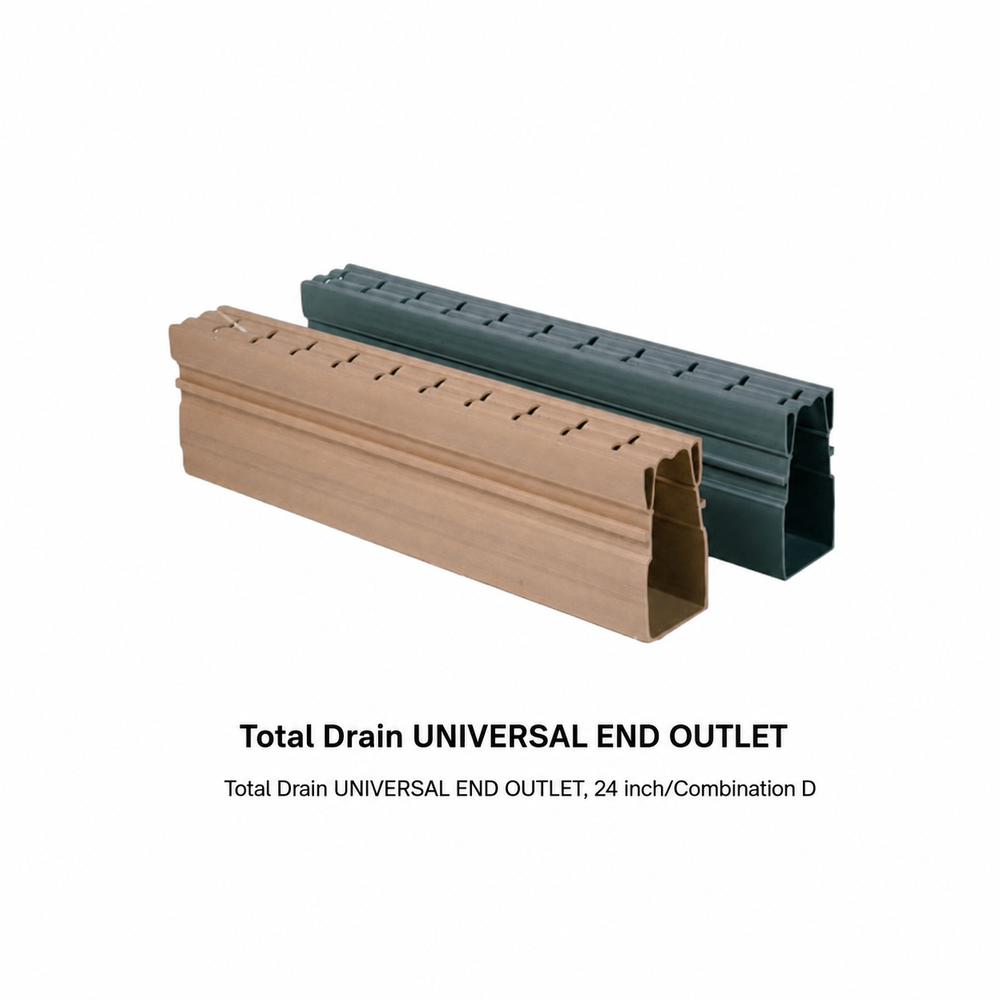

WR Meadows Total Drain UNIVERSAL END OUTLET - 24"/Combination D

Mfr.: WR Meadows
Item #: I056233
Mfr. #: 5750100
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $39.03
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The MEL-DRAIN TOTAL-DRAIN is a prefabricated drainage system that combines a standard sheet drain with a built-in high-flow section for efficient water collection and horizontal discharge. It is designed for below-grade structures such as foundation walls and retaining walls.
  • Two-part design with non-woven filter fabric
  • High-profile flow section for horizontal water flow
  • Compatible with all MEL-DRAIN products
  • Quick installation with secure transition points

Features

  • High-profile flow section has larger open area than perforated pipe
  • Manufactured transition provides secure flow path
  • Eliminates need for select backfill
  • Standard connectors and corner guards available

Specifications


Flow Capacity (Sheet Drain)21 gpm/ft @ HG=0.1Flow Capacity (High Profile)100 gpm @ HG=1.0
Compressive Strength9,000 lb/sfRoll Length50 ft
Roll Width2 ftRoll Weight30 lb
Core Height24 inTop Section Core Thickness7/16 in
Bottom Section Core Thickness1 in
*
*
*
