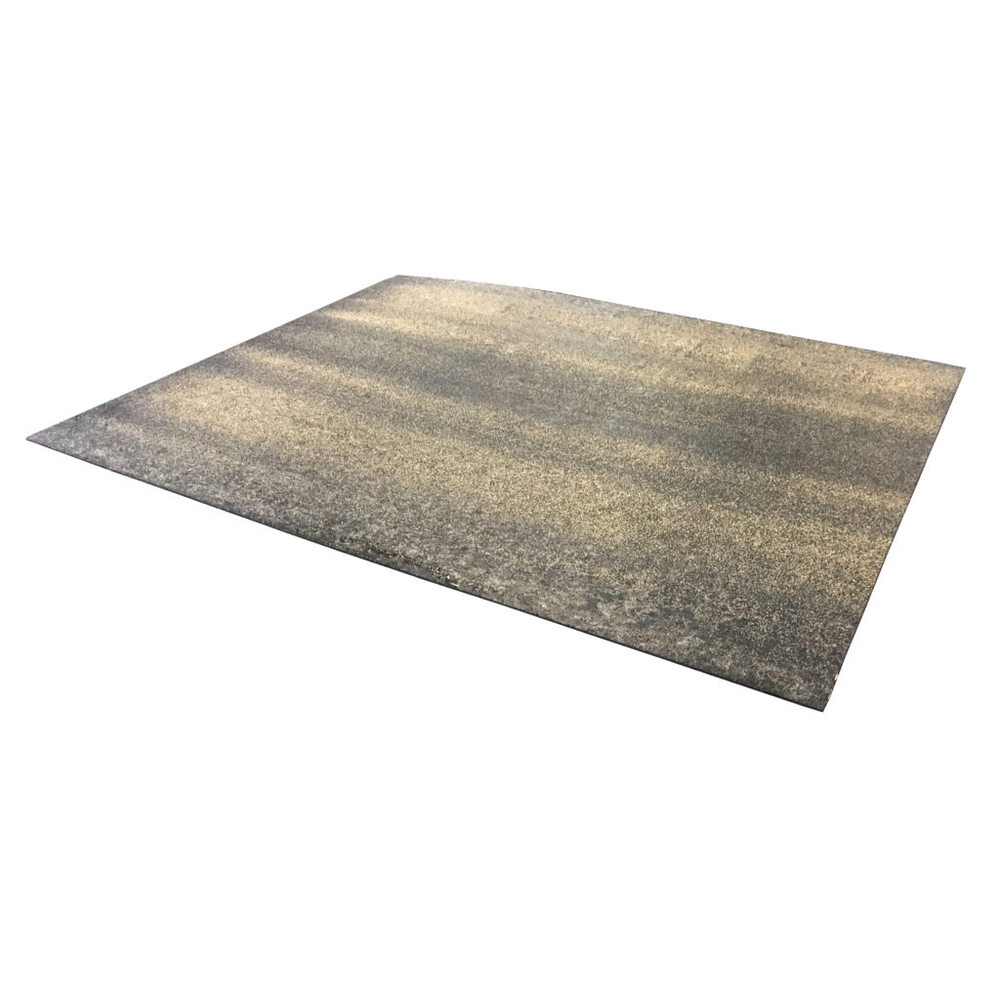

WR Meadows VIBRAFLEX - 3/8" x 48" x 8' Panels

Mfr.: WR Meadows
Item #: I101138
Mfr. #: 5802480080
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $199.25
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

VIBRAFLEX is a semi-rigid asphaltic panel used as a protection course over waterproofing membranes on bridge decks and similar structures. It is a multi-ply panel with a mineral-fortified asphalt core reinforced with felt and fiberglass.
  • Large 4' x 8' panels minimize joints and speed installation
  • Dry installation without hot mopping or adhesives
  • Flexible dual-layer installation complies with AREMA Specification
  • Proven by more than three decades of field performance

Features

  • Large 4' x 8' panels can be installed dry, saving 40% to 60% in total installed costs
  • Panel size results in 90% fewer joints, eliminating infiltration of fines
  • Flexible dual-layer installation complies with current AREMA Specification in Chapter 9
  • Factory-applied, weather-coated surface permits controlled ballast penetration
  • Compatible with most types of built-up dampproofing and waterproofing membranes

Specifications


Thickness3/8 inch (9.53 mm)Panel Size4 x 8 (1.22 x 2.44 m)
Weight per 100 ft2260 lbs (117.94 kg)ColorBlack
*
*
*
