Combo Guard 48 in x 27 in Curb & Grate Inlet Protection

Mfr.: Ertec Pro Wattle
Item #: I090704
Mfr. #: CG 48x27
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $153.28
i h h

Description

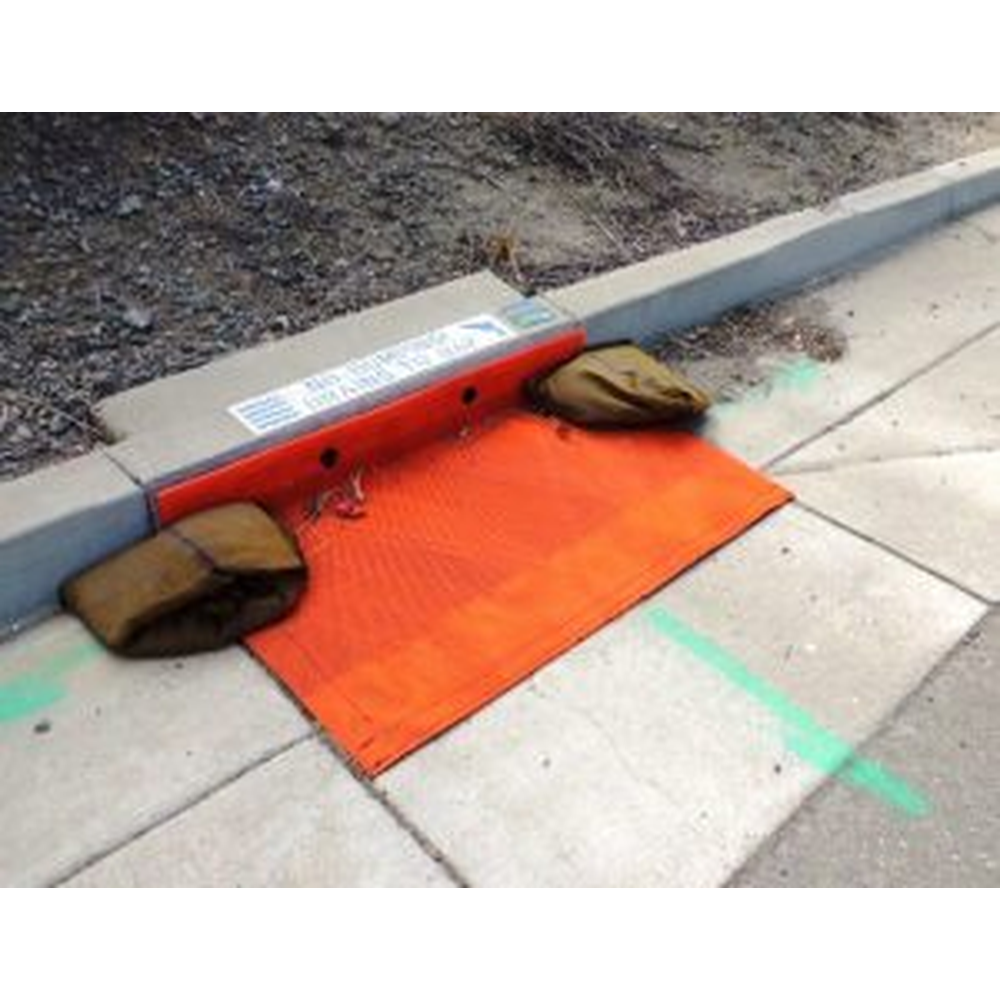

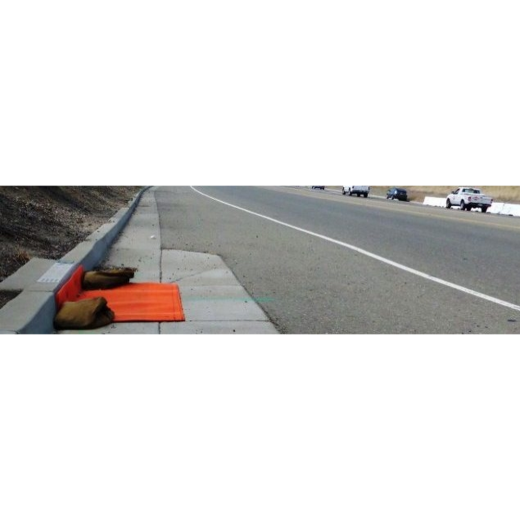

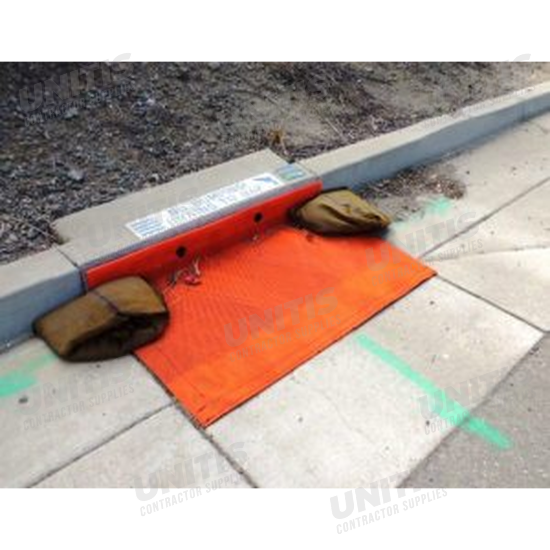

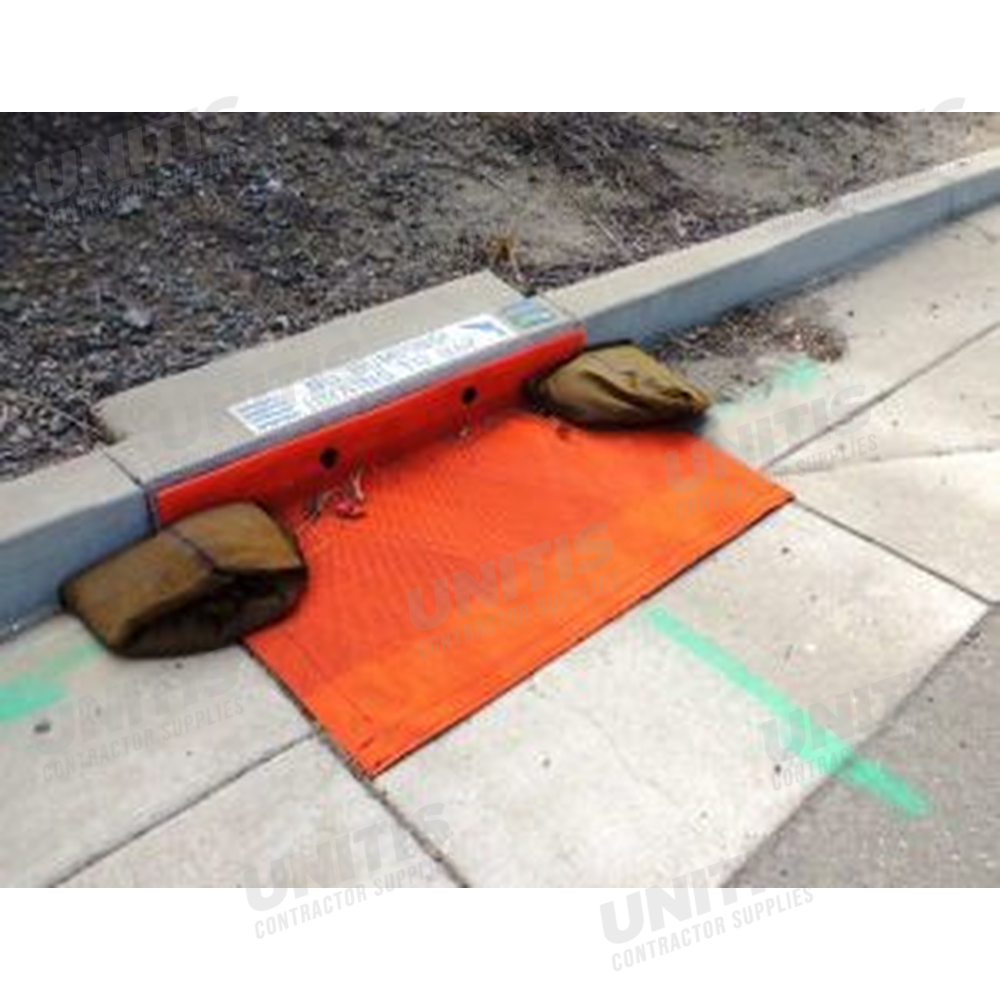

Combo Guard is a patented, low cost, four layer system designed to reduce sedimentation into combination curb and grate storm drain inlets. CG is engineered to balance the critical tradeoff between allowing water to flow off the street for safety and capturing sediment. The integrated filter has a vertical height of 2 inches to allow bypass in high flow conditions, and the system filters storm water above the ground to ease visual inspection and maintenance.

Features

  • Easy to install, inspect, and maintain with no grate removal required
  • Long life, UV stable, and resistant to traffic
  • Made from recycled content and is fully reusable
  • Integrated 2-inch filter for high-flow bypass protection
  • Lightweight and significantly lower cost than alternative systems
Products specifications
Model Compatibility Fits up to 40 inch x 24 inch Grate
Unit weight (average lbs) 3 - 5
Filter AOS (microns) - nominal 425
Functional life (min years) 4+
Filter Flow Rate ASTM D-4491 145 gpm/ft2 (min)
Vertical Height (average inches) 6.0
Tensile Yield ASTM D-638 1800 - 2800 lb/in2
Filter freeboard height nominal +/- 0.33 in (2.0 in bypass)
Ultimate Tensile Strength ASTM D-638 2000 - 2800 lb/in2
Reusable YES
Service temperature -30 to 160 deg F
Easy to Clean YES
Seals to pavement to control underflow YES
Bypass for high flow conditions YES
Anchoring Method Gravel Bags or Zip Ties
*
*
*
