Ertec Combo Guard for 23 in x 19 in Grate

Mfr.: Ertec Pro Wattle
Item #: I090700
Mfr. #: CG 28x22
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $110.80
i h h

Description

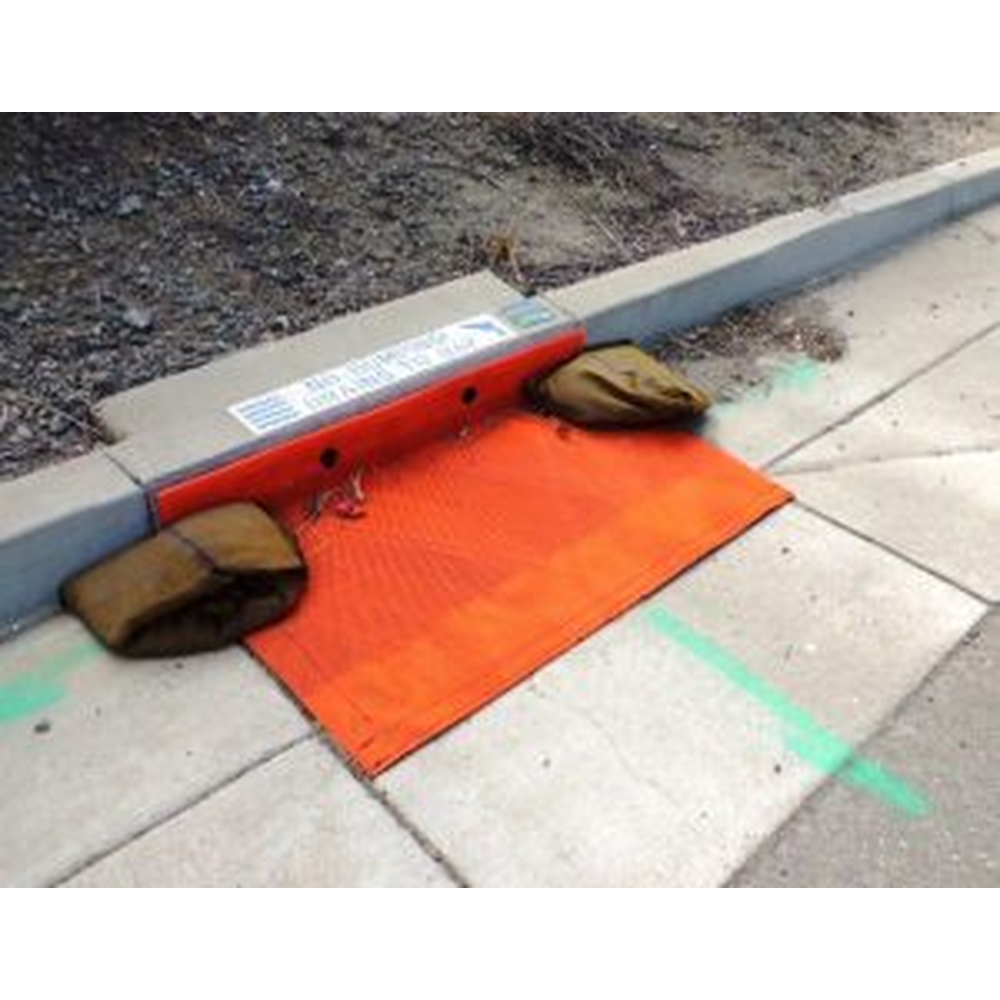

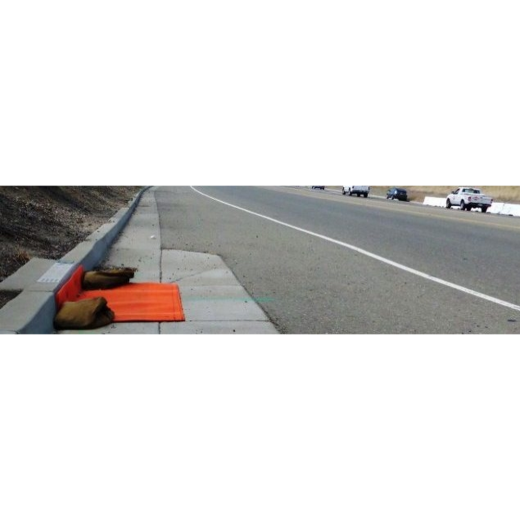

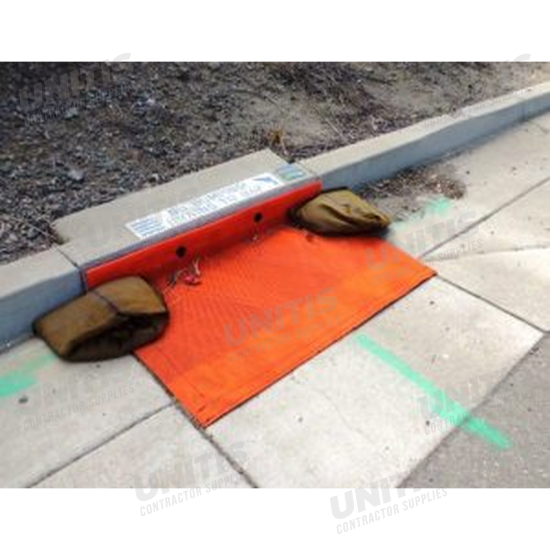

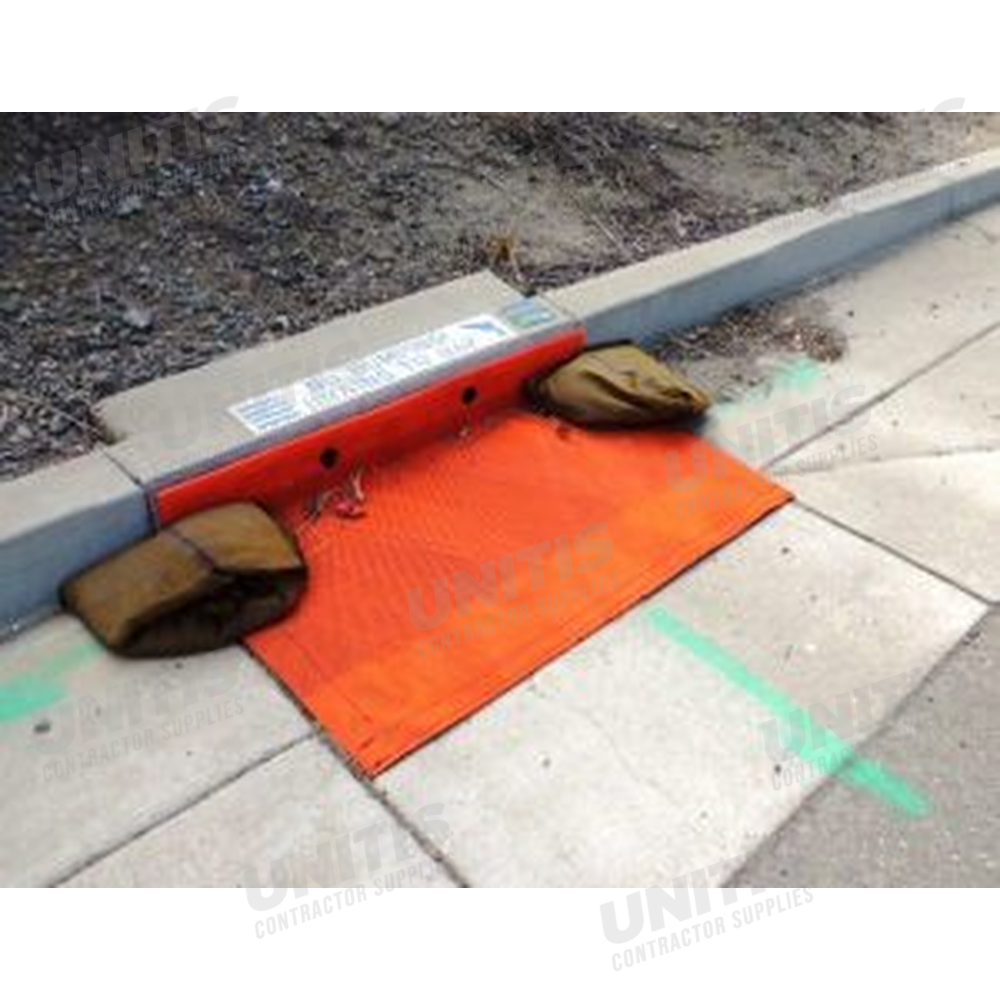

ERTEC Combo Guard is a temporary sediment filter designed for curb and grate inlet protection during construction. It is constructed from a durable high-density polyethylene (HDPE) outer jacket with an integrated 425-micron geo-textile filter. The system intercepts sediment-laden water, allowing flow while filtering smaller particles and providing high-flow bypass openings to prevent flooding. This reusable device is lightweight and easily installed using gravel bags, cable ties, or concrete anchors.

Features

  • Integrated 425-micron particle filter allows a flow rate of 145 gpm/ft2.
  • Durable HDPE construction makes the unit reusable and long-lasting.
  • Built-in high-flow bypass set at 2 inches high to handle heavy rainfall.
  • Gasket seal controls underflow to ensure water passes through the filter.
  • Extremely lightweight at 3 to 5 lbs for easy handling and maintenance.
Products specifications
Grate Size Compatibility 23 inch x 19 inch
Filter Apparent Opening Size (AOS) 425 micron
Flow Rate (ASTM D-4491) 145 gpm/ft2
Outer Jacket Material HDPE
Module Height 6.0 inch
Module Weight 3 to 5 lbs
Service Temperature -30 to 160 deg F
Bypass Height 2 inches
Filter Type Integrated four layer system
*
*
*
